SIDE PANEL LATCH ASSEMBLY FOR AN INCUBATOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 13, 2023
app pub date -
Oct 13, 2021
filing date -
Oct 13, 2021
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

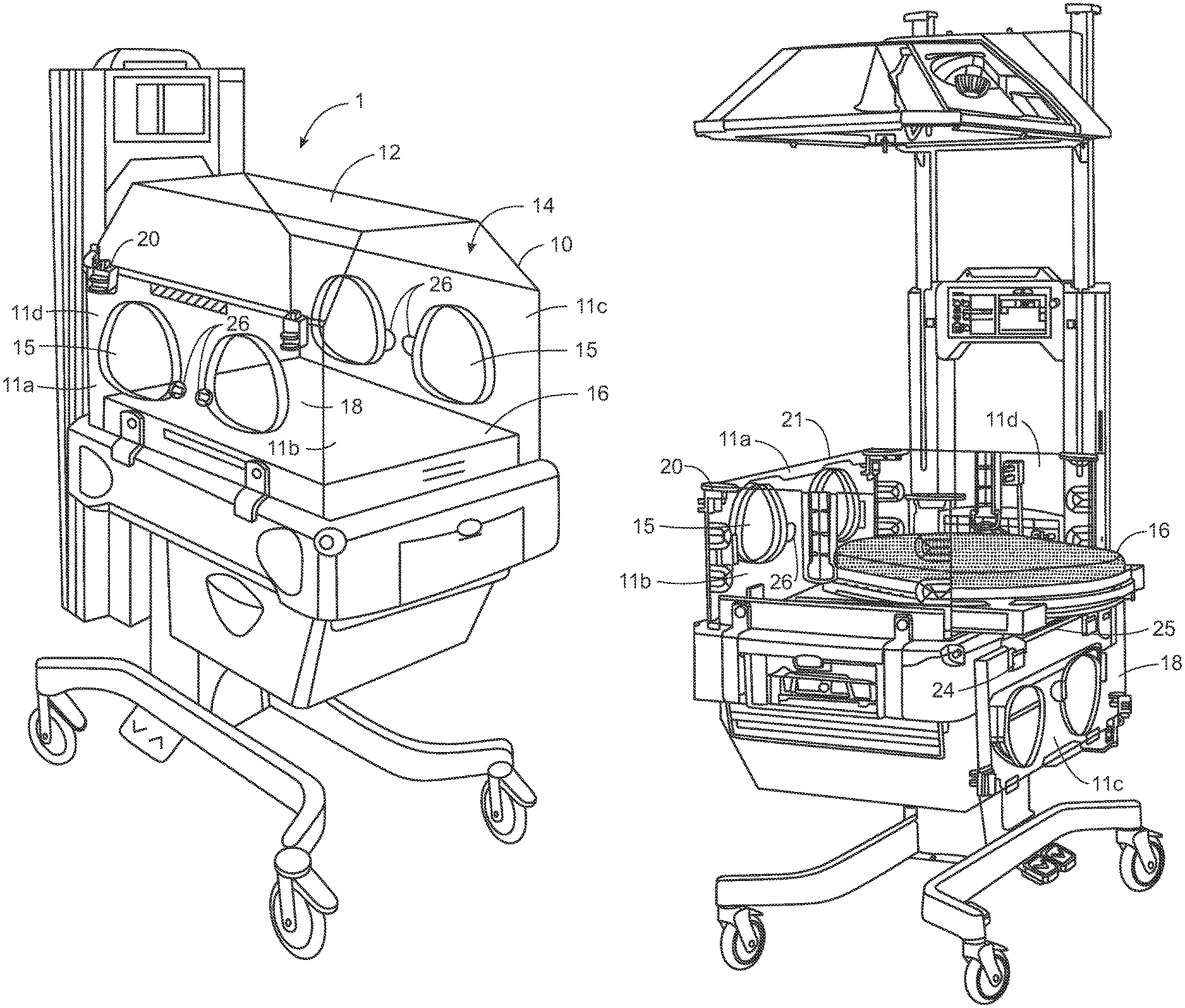

A neonatal incubator system includes an enclosure having side panels that create a chamber that receives an infant. At least one of the side panels is movable between an upright closed position and a retracted open position. A side panel latch assembly is positioned to permit and prevent movement of the movable side panel between the open and closed positions. The side panel latch assembly includes a movable latch lever having a primary latch member and a secondary latch member that are spaced from each other. The primary latch member engages a first catch on a latch receptable to hold the side panel latch assembly in the latched position. The secondary latch member engages a second catch on the latch receptacle when the side panel is partially open. The primary and secondary latch members move together with the latch lever to release both the primary and secondary latch members.
First Claim
Other Claims data not available
