Multiple variable turn wave springs, methods of pre-loading components with said springs, and methods of manufacturing said springs
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2024
Grant Date -
Mar 16, 2023
app pub date -
Sep 6, 2022
filing date -
Sep 13, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

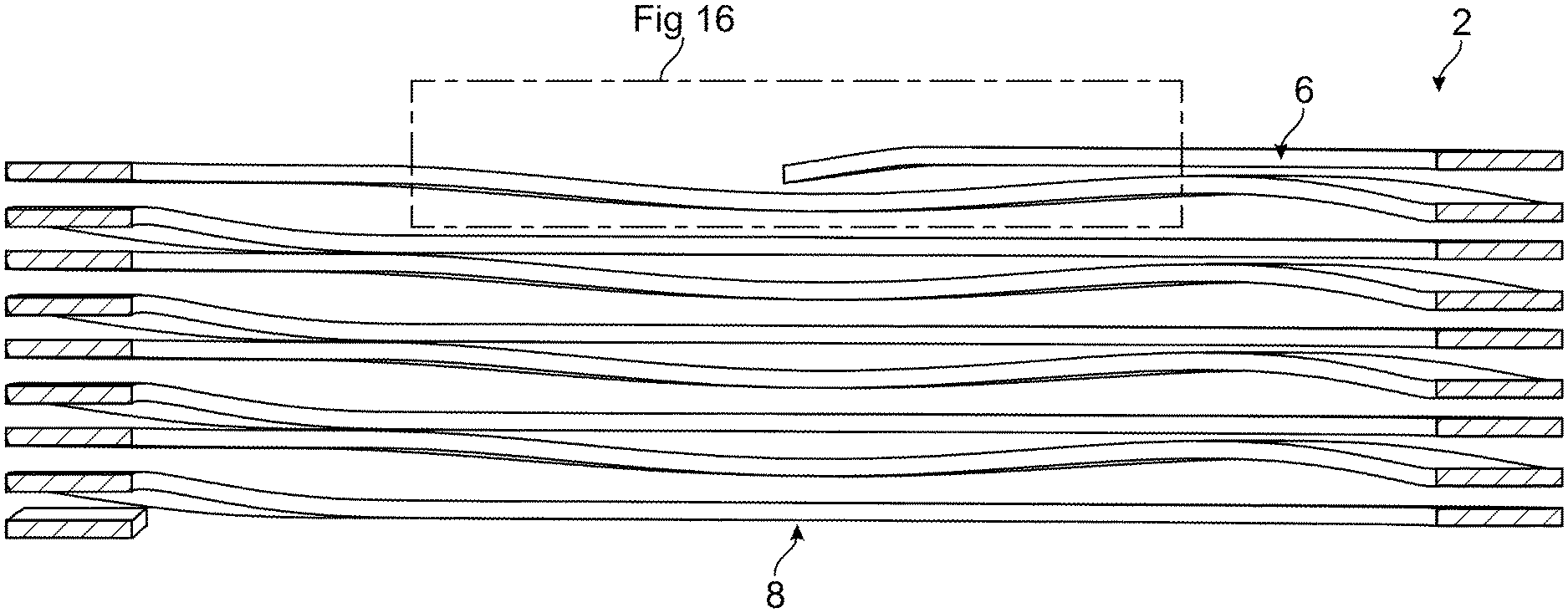

Wave springs having multiple variable turns, methods of pre-loading components with said wave springs, and methods of manufacturing said wave springs are provided. The wave spring has a total height defined by a first end portion and a second opposite end portion and an intermediate portion disposed between the first and second end portions. The intermediate portion has active turns with waved or non-planar turns and non-active turns with planar or non-waved turns. The wave spring also has a first alignment disposed between the first and second end portions, wherein first alignment comprises at least two waved or non-planar turns being aligned with each other.
