Rail system for an outdoor shelter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 21, 2023
Grant Date -
Mar 16, 2023
app pub date -
Sep 19, 2022
filing date -
May 20, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

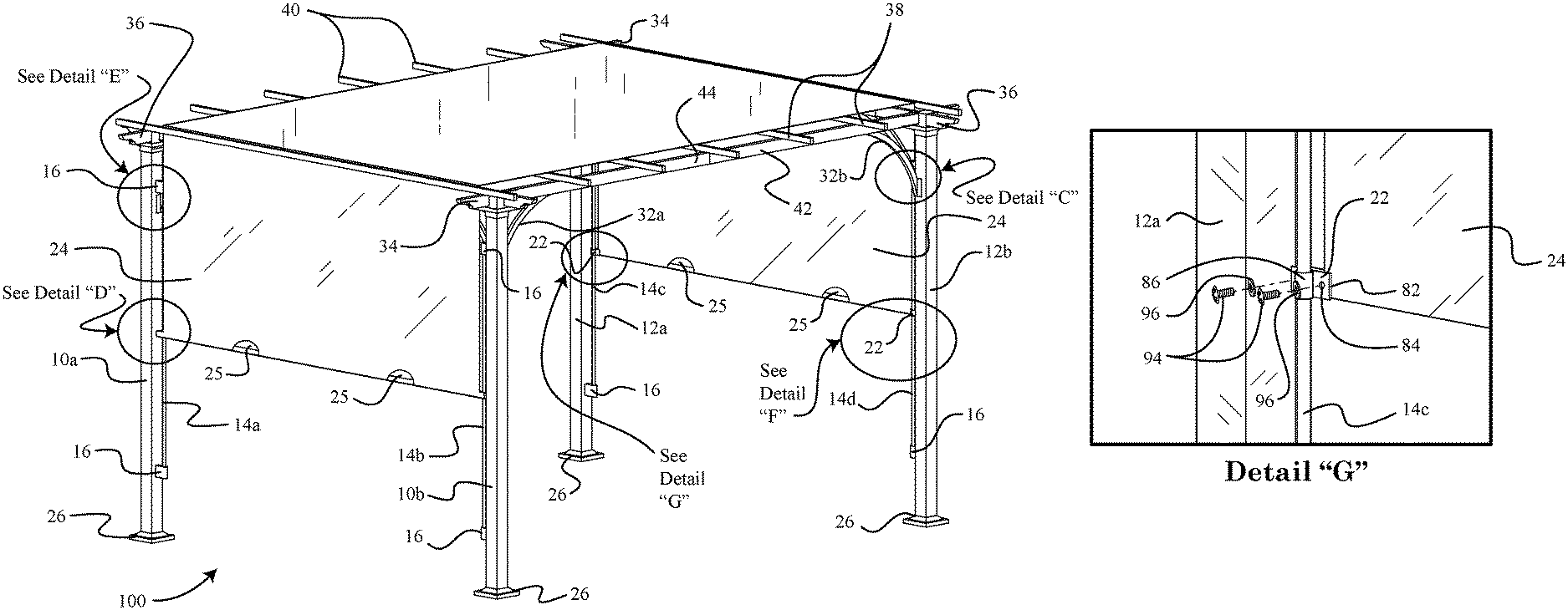

An outdoor shelter and a rail system for the outdoor shelter are described herein. The outdoor shelter may include a plurality of corner support members disposed at respective corners of the outdoor shelter, the plurality of corner support members including a first corner support member, a second corner support member, a third corner support member, and a fourth corner support member; a plurality of peripheral beam members, a first one of the plurality of peripheral beam members configured to extend in a longitudinal direction between the first and third corner support members, and a second one of the plurality of peripheral beam members configured to extend in a transverse direction between the first and second corner support members; and a shade member disposed above at least one of the first and second ones of the plurality of peripheral beam members.
