Method for preparing gradient hardened titanium alloy
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 18, 2023
Grant Date -
Mar 2, 2023
app pub date -
Aug 4, 2022
filing date -
Aug 27, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

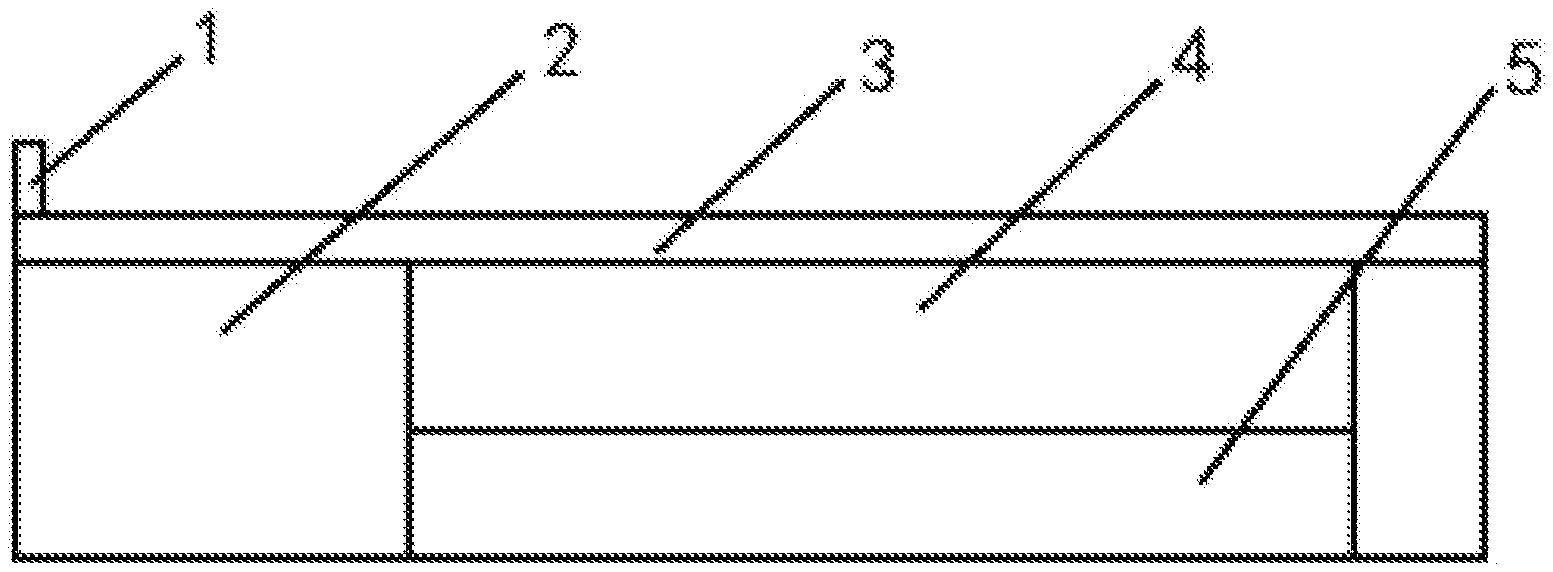

In a method for preparing a gradient hardened titanium alloy. A steel momentum block and a cleaned titanium alloy plate are sequentially placed into a steel base with a through hole from bottom to top, a cross sectional size of the through hole is matched with cross sectional sizes of the steel momentum block and the titanium alloy plate, and a height of the through hole is matched with a total thickness of the steel momentum block and the titanium alloy plate. An explosive frame is fixed on a top edge of the steel base, a high explosion velocity explosive with an explosion velocity of 7000 m/s or more pressed into a plate-shaped structure is placed in the explosive frame, and detonation is caused at one end of a top surface of the explosive to perform impact treatment on the titanium alloy plate, thereby obtaining the gradient hardened titanium alloy.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- C22F Class
- 180 Applications Filed
- 57 Patents Issued To-Date
- 31.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C22F Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Oct 18, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 18, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 18, 2034 |
