Leveling apparatus for a vehicle headlamp having a tilting sensor and a light source module that tilt together
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2023
Grant Date -
Feb 9, 2023
app pub date -
May 6, 2022
filing date -
Aug 5, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

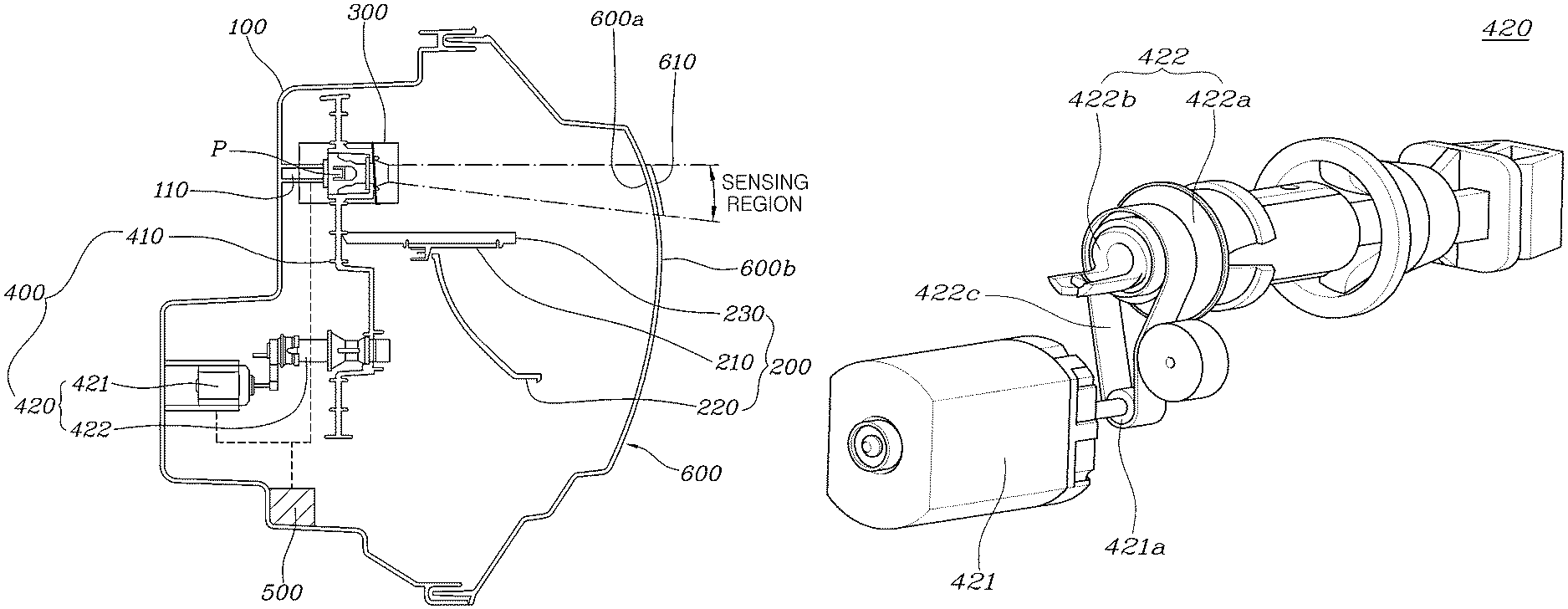

A leveling apparatus for a vehicle headlamp includes: a housing disposed at a front side of a vehicle; a light source module disposed in the housing to emit light; a tilting sensor disposed in the housing to detect an inclination degree of a road; a tilting means to tilt the light source module and the tilting sensor together; and a controller. The controller receives a signal detected by the tilting sensor and controls the tilting means based on the inclination degree of the road to adjust a light emission angle of the light source module. In addition, the tilting sensor operates until a sensed output of the tilting sensor reaches a normal range.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- B60Q Class
- 1154 Applications Filed
- 652 Patents Issued To-Date
- 56.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60Q Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jun 26, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2035 |
