Compressor modulation system with multi-way valve

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 11655813
APP PUB NO 20230036027A1
SERIAL NO

17388923

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage

Abstract

See full text

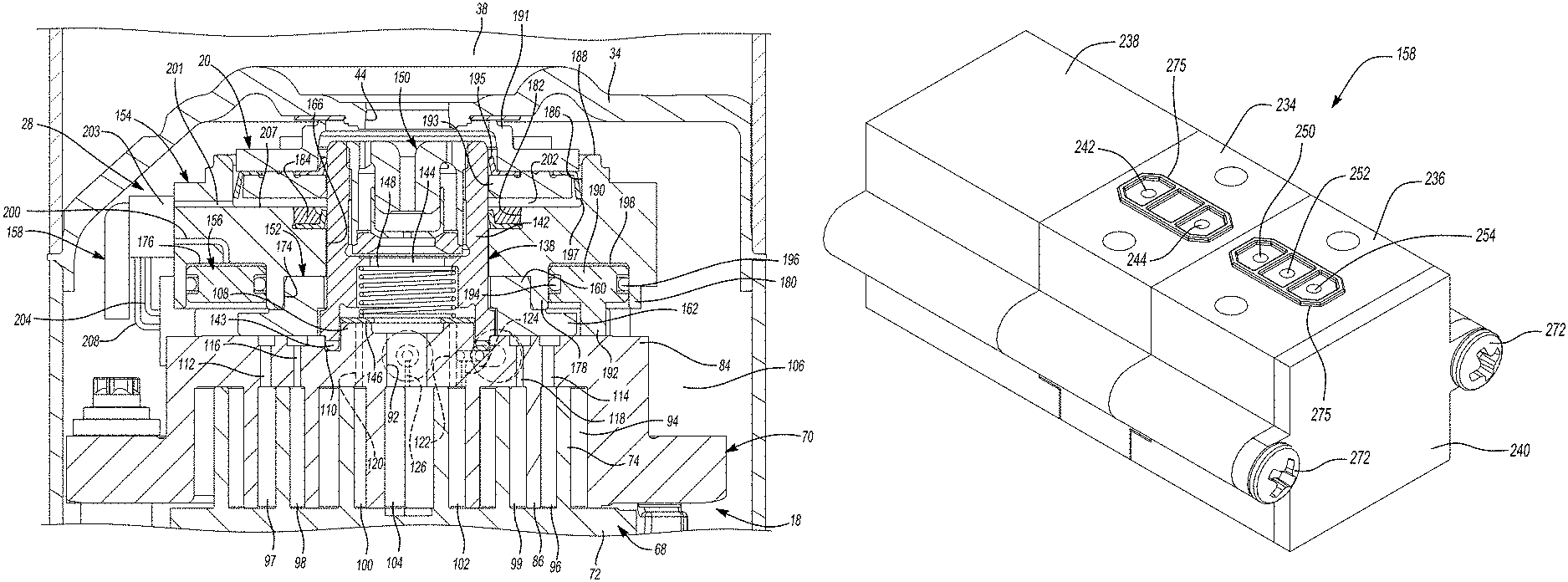

A compressor may include first and second scrolls, an axial biasing chamber, and a modulation control valve. The second scroll includes an outer port and an inner port. The outer and inner ports may be open to respective intermediate-pressure compression pockets. The modulation control valve may be in fluid communication with the inner port, the outer port, and the axial biasing chamber. Movement of the modulation control valve into a first position switches the compressor into a reduced-capacity mode and allows fluid communication between the inner port and the axial biasing chamber while preventing fluid communication between the outer port and the axial biasing chamber. Movement of the modulation control valve into a second position switches the compressor into a full-capacity mode and allows fluid communication between the outer port and the axial biasing chamber while preventing fluid communication between the inner port and the axial biasing chamber.
