Waveguide structure comprising first and second waveguide sections connected to each other through a fixed connector
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 18, 2023
Grant Date -
Dec 29, 2022
app pub date -
Aug 29, 2022
filing date -
Mar 11, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

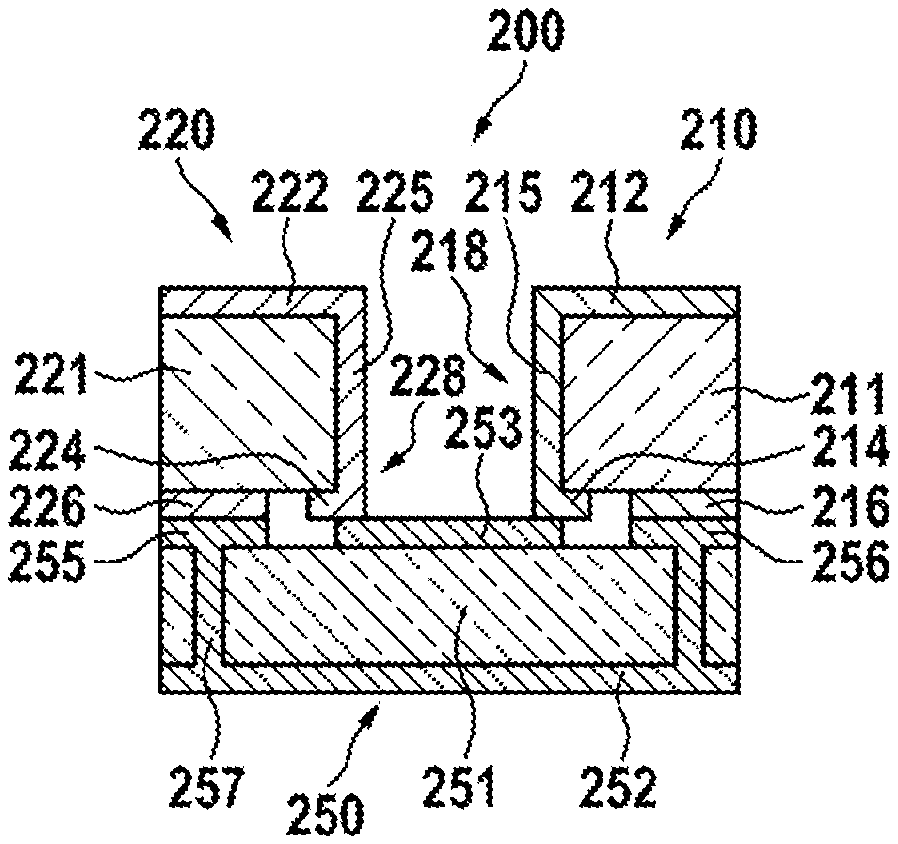

A waveguide structure includes a first waveguide section mechanically and electrically connected by a fixed connector to a second waveguide section. The waveguide sections include a dielectric material with a ground layer and a conductor structure with a pair of elongate conductors. The fixed connector includes a dielectric material with a pair of contact pads insulated from a ground layer. The fixed connector is attached by its top side to the bottom sides of interface sections of the waveguides sections forming a ground contact. The interface sections each comprise an intermediate conductor from each of the elongate conductors at the top side to the bottom side of the dielectric material. The intermediate conductors are connected via the contact pads.
