PHOTOMASK, METHOD OF MANUFACTURING ARRAY SUBSTRATE, AND DISPLAY PANEL

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20220397820A1
SERIAL NO

17263958

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

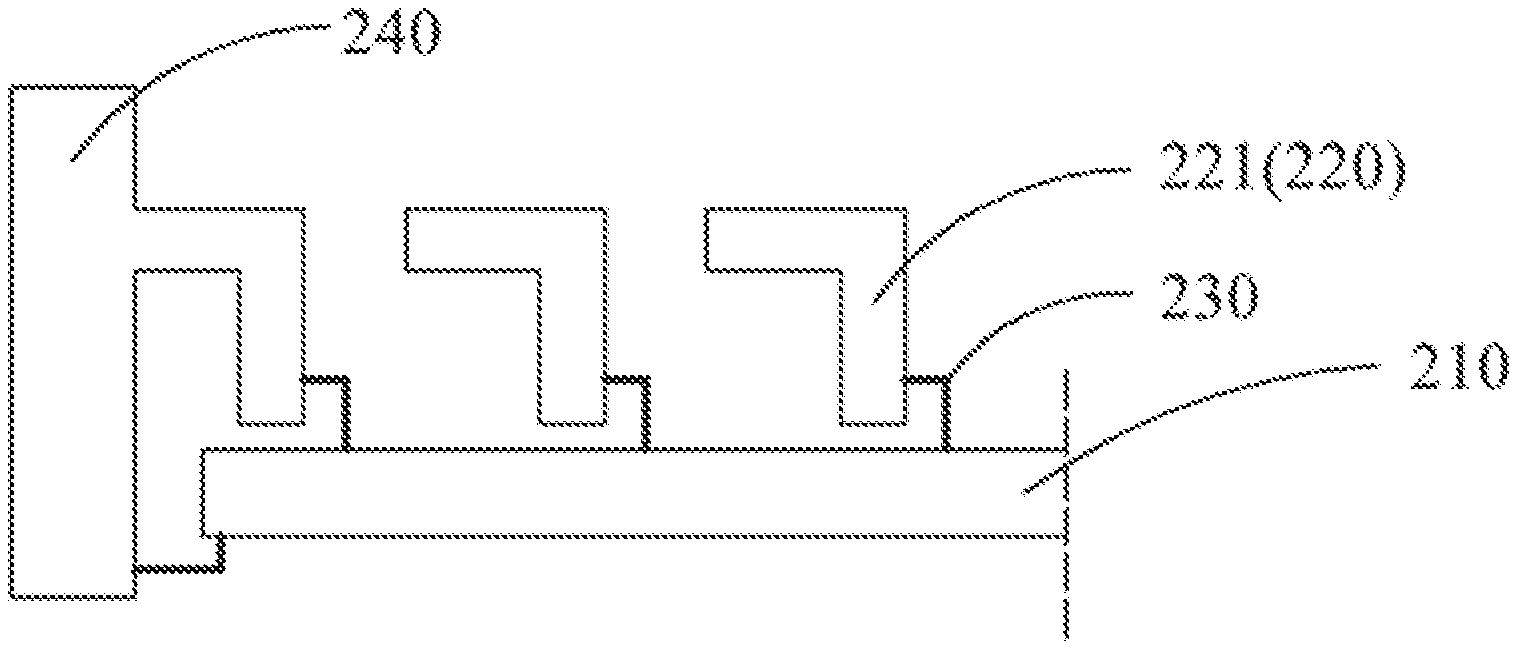

A photomask, a method of manufacturing an array substrate, and a display panel are provided. The photomask includes a photomask line of a first conductive portion, a photomask line of a second conductive portion spaced apart from the photomask line of the first conductive portion, and a bridging line. Two opposite ends of the bridging line are respectively connected to the photomask line of the first conductive portion and the photomask line of the second conductive portion, and a width of the bridging line is less than a preset width.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
TCL CHINA STAR OPTOELECTRONICS TECHNOLOGY CO LTDSHENZHEN

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
HE, Wei Shenzhen, Guangdong, CN 573 3647
TAN, Xiaofang Shenzhen, Guangdong, CN 4 0
