PAPER SHEET FEEDING APPARATUS AND BOX MAKING MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 8, 2022
app pub date -
Sep 16, 2020
filing date -
Sep 16, 2020
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

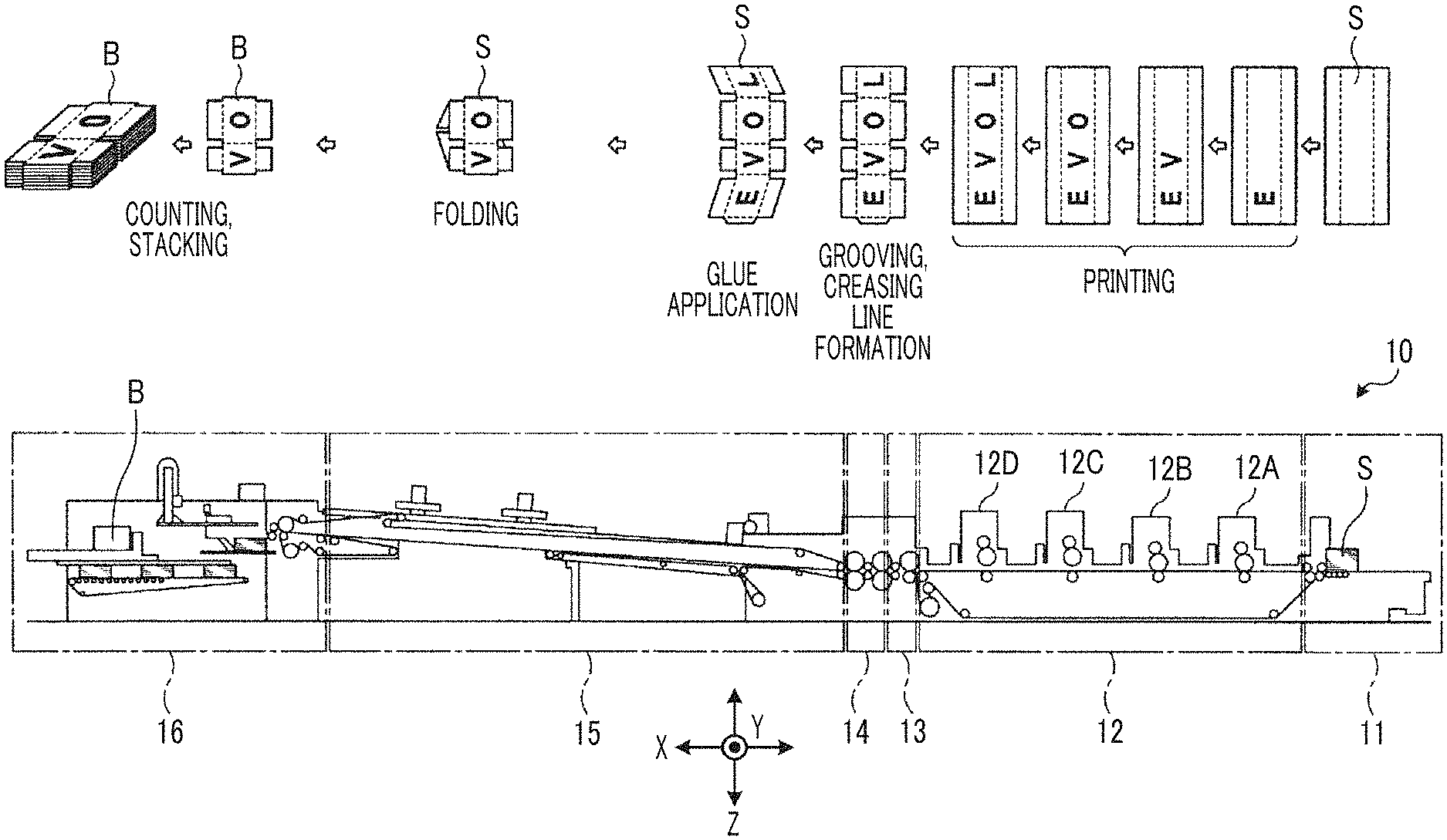

Provided in a paper sheet feeding apparatus and a box making machine are: a plurality of wheels capable of supplying a sheet by coming into contact with a lower surface of the sheet; a grate liftable and lowerable to an ascending position positioned above upper edges of the plurality of wheels and a descending position positioned below the upper edges of the plurality of wheels; a drive motor; an elevating device capable of lifting the grate to the ascending position by rotating the drive motor in one direction and capable of lowering the grate to the descending position by rotating the drive motor in the other direction; and a control device capable of adjusting an amount by which the grate is lifted and lowered by the elevating device by controlling the drive motor.
First Claim
Other Claims data not available
