STAGE WITH MOVING PARTS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 3, 2022
app pub date -
Nov 9, 2020
filing date -
Nov 9, 2020
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

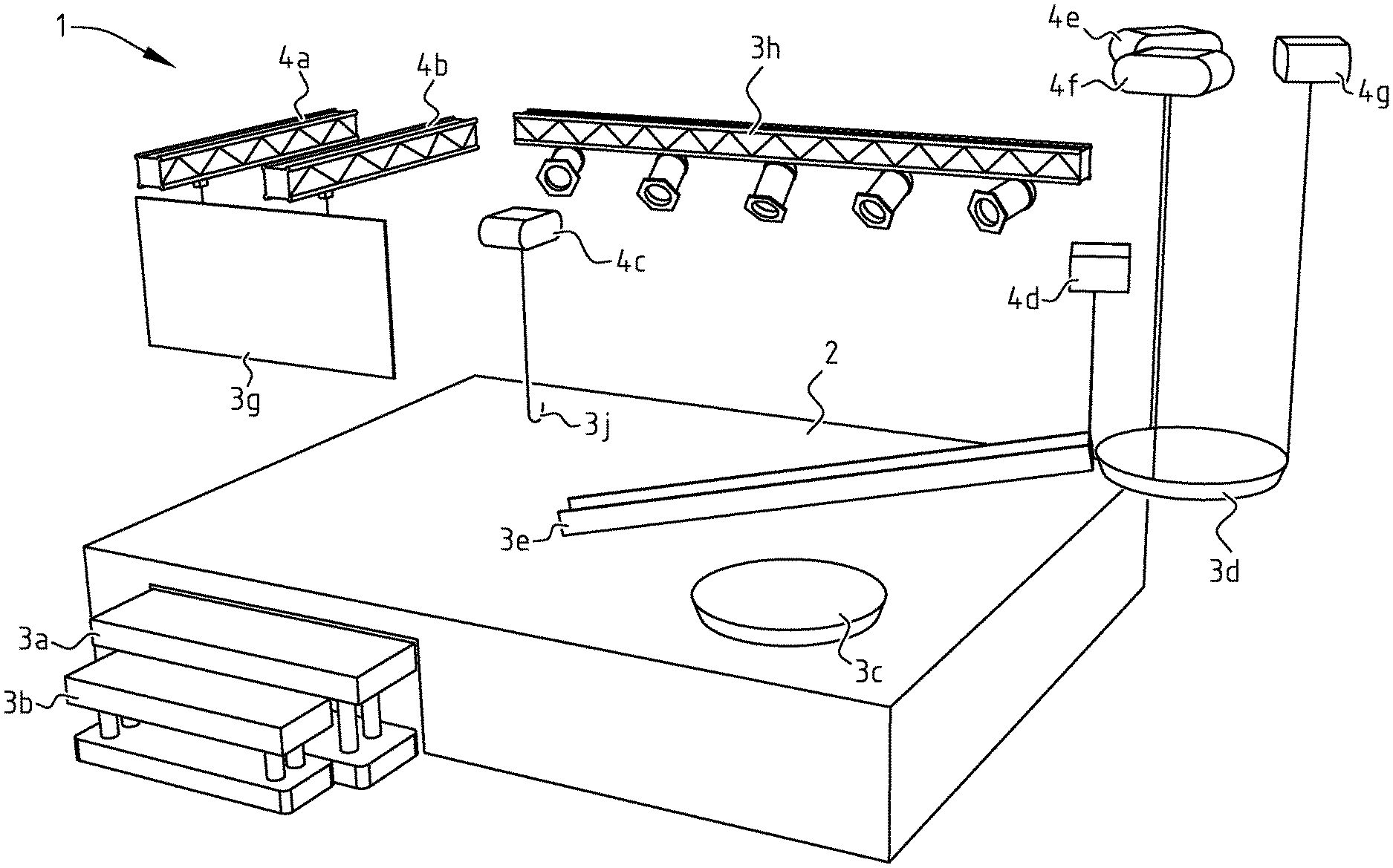

A device for constructing a stage includes fixed stage parts and movable stage parts. The device includes a set of actuators provided to be physically connected to the movable stage parts and each including a communication module for communicating with a server. The server includes a central communication module for communicating with communication modules of the actuators. A controller is connected to the server and has an operator interface including input means and visualizing means. The controller and server are configured to generate control signals for each actuator on the basis of an input via the input means. Control signals include a safety parameter which indicates a safety level, and an operator can activate different safety levels with different keys. The device is provided to execute control signals with a safety parameter which corresponds to the activated safety level.
First Claim
Other Claims data not available
