X-ray source with liquid cooled source coils
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2024
Grant Date -
Oct 27, 2022
app pub date -
Apr 23, 2021
filing date -
Apr 23, 2021
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

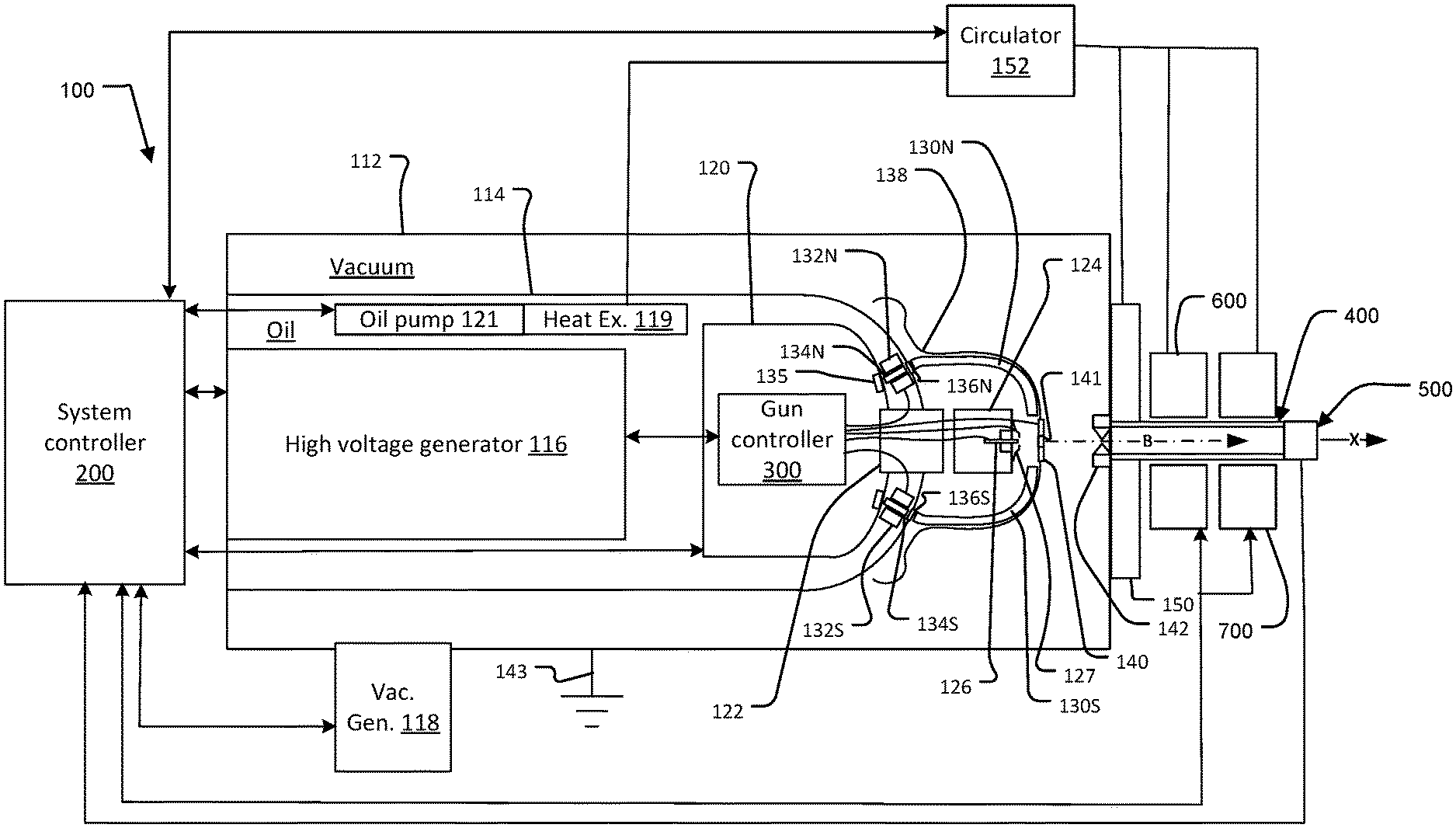

The electron beam is typically dynamically steered after its generation on the path to the target. The steering is performed by one or more source coils. These coils produce the magnetic field outside the vacuum vessel allowing air/water/oil cooling to remove undesired heat. The magnetic field is then picked up inside the vacuum vessel with pole pieces and guided towards the region where the magnetic field is needed to steer the electron beam.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jul 2, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2035 |
