SINGLE-LENS GLASSES WITH INTERCHANGEABLE LENSES

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20220317473A1
SERIAL NO

17711358

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

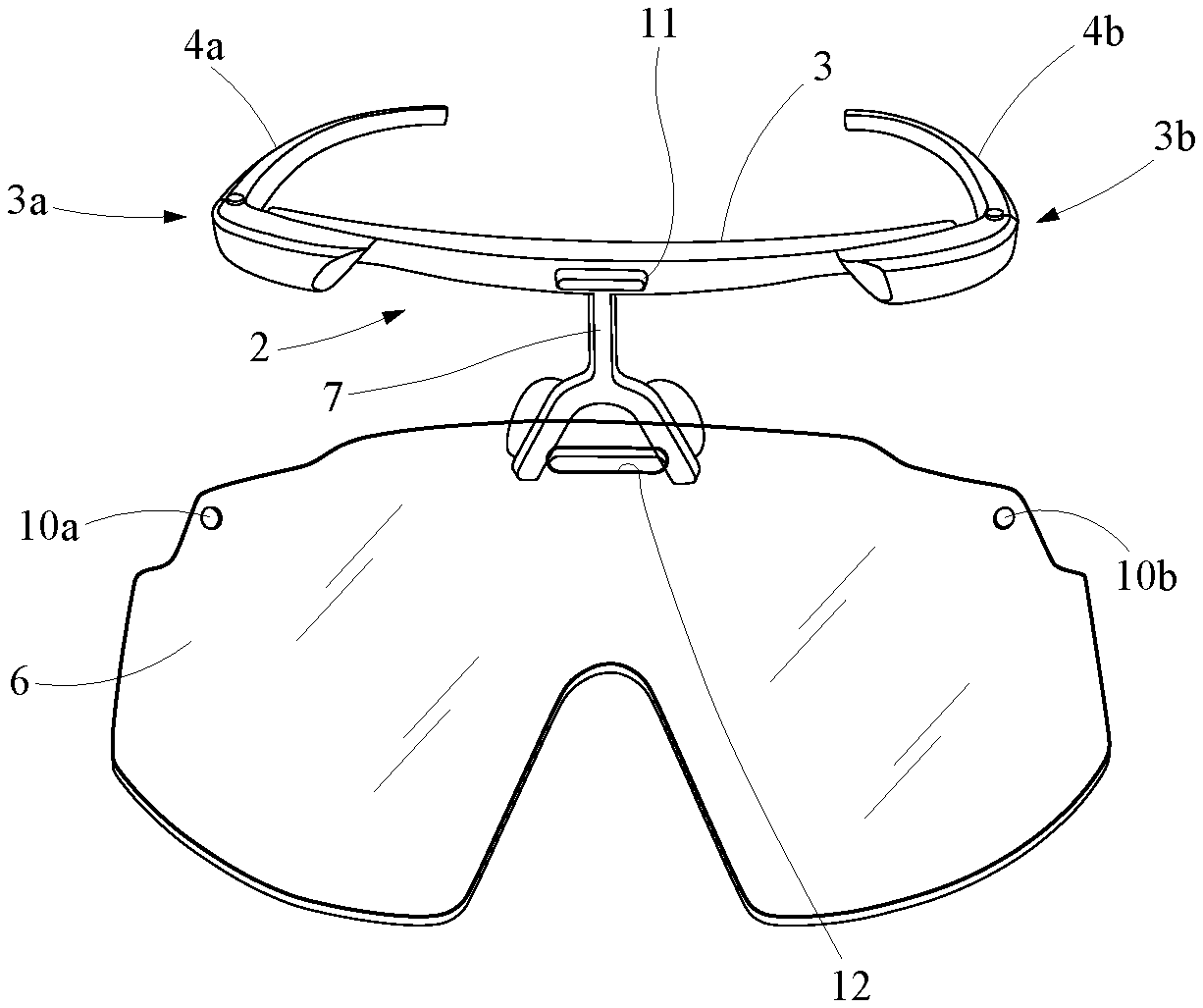

Interchangeable single-lens glasses include a mount with a front lens-holding frame having a bar extended at supraciliary arches between opposed lateral ends of the frame, and means for removable retention on the bar a single-lens structure extending frontally between the ends. The means for retaining the lens structure on the bar include, at each of the lateral ends, at least a respective first magnet or ferromagnetic material element provided on the frame and a second magnet or ferromagnetic material element provided on the lens in a corresponding position, to cooperate in reciprocal magnetic attraction with the corresponding first element, and, at a central portion of the bar, proximate to a nasal rest area of the mount, a relief protruding frontally from the bar and an opening passing through the lens in a corresponding position, the relief being configured to engage the opening with relative reciprocal locking.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
SAFILO - SOCIETA AZIONARIA FABBRICA ITALIANA LAVORAZIONE OCCHIALI S P APIAZZA TISIANO 8 32044 PIEVE DI CADOR (BL)

International Classification(s)

loading....
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20222023202420250255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Donà, Cristian Padova, IT 3 4

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 1 Citation Count
  • G02C Class
  • 70.96 % this patent is cited more than
  • 3 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges36915101 - 100100200300400255075125150175225250275325350375
