IGNITION COIL FOR USE IN INTERNAL COMBUSTION ENGINE

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20220310307A1
SERIAL NO

17671266

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

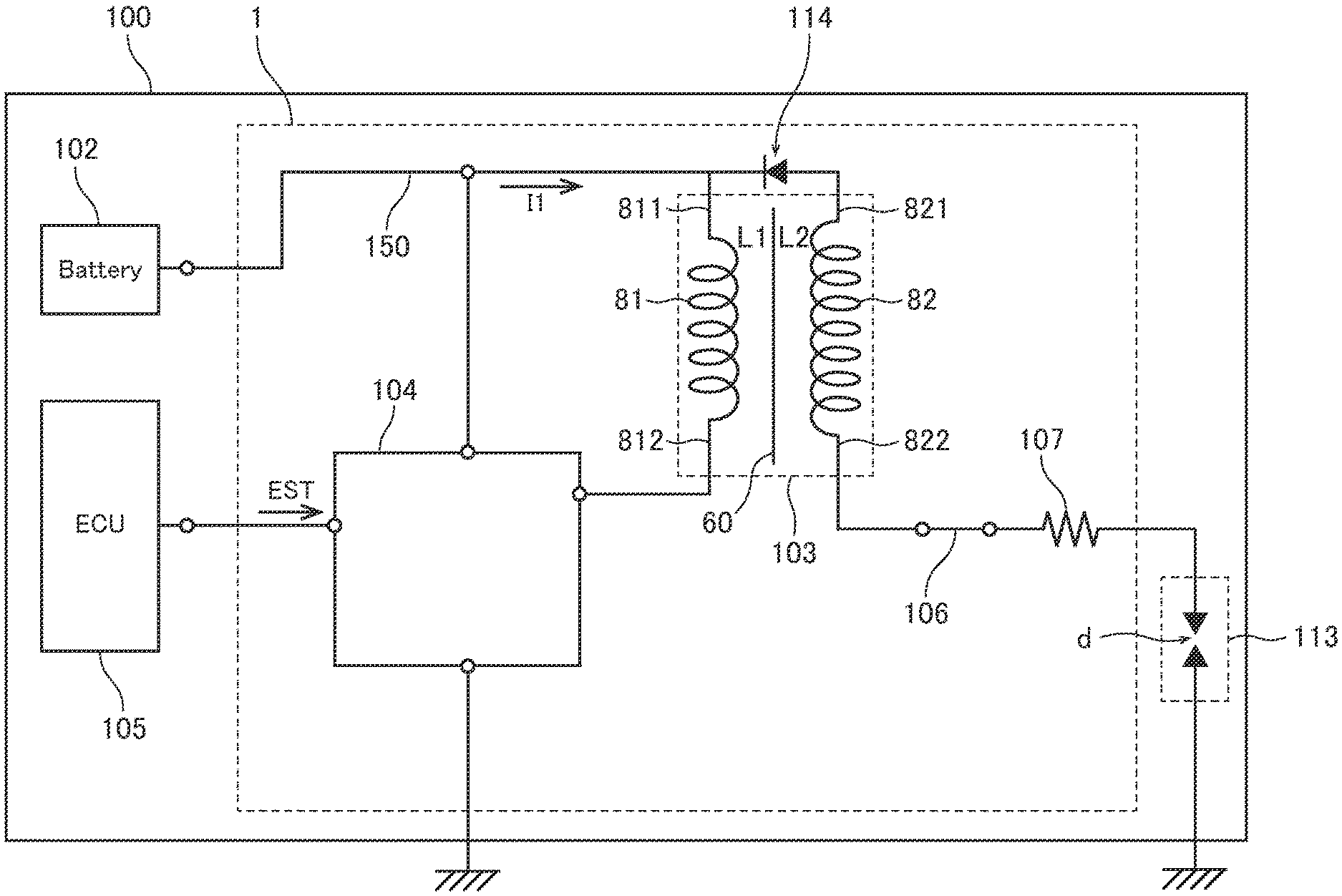

An ignition coil for use in an internal combustion engine includes a coil assembly including a primary coil and a secondary coil, a lead terminal electrically connected to the secondary coil, a noise prevention resistor connected to a spark plug, and a case. An internal space of the case includes a first space holding the coil assembly and the lead terminal and a second space including the noise prevention resistor. The case includes a pair of guides protruding toward the first space. The lead terminal passes through a gap between the pair of guides and is in contact with an exposed surface of the noise prevention resistor. This can reduce deviation of the lead terminal. As a result, the secondary coil and the noise prevention resistor can be electrically connected to each other without intervention of a high-voltage terminal therebetween.
