Weaving Equipment with Strand Modifying Unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 1, 2022
app pub date -
May 20, 2022
filing date -
Nov 21, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

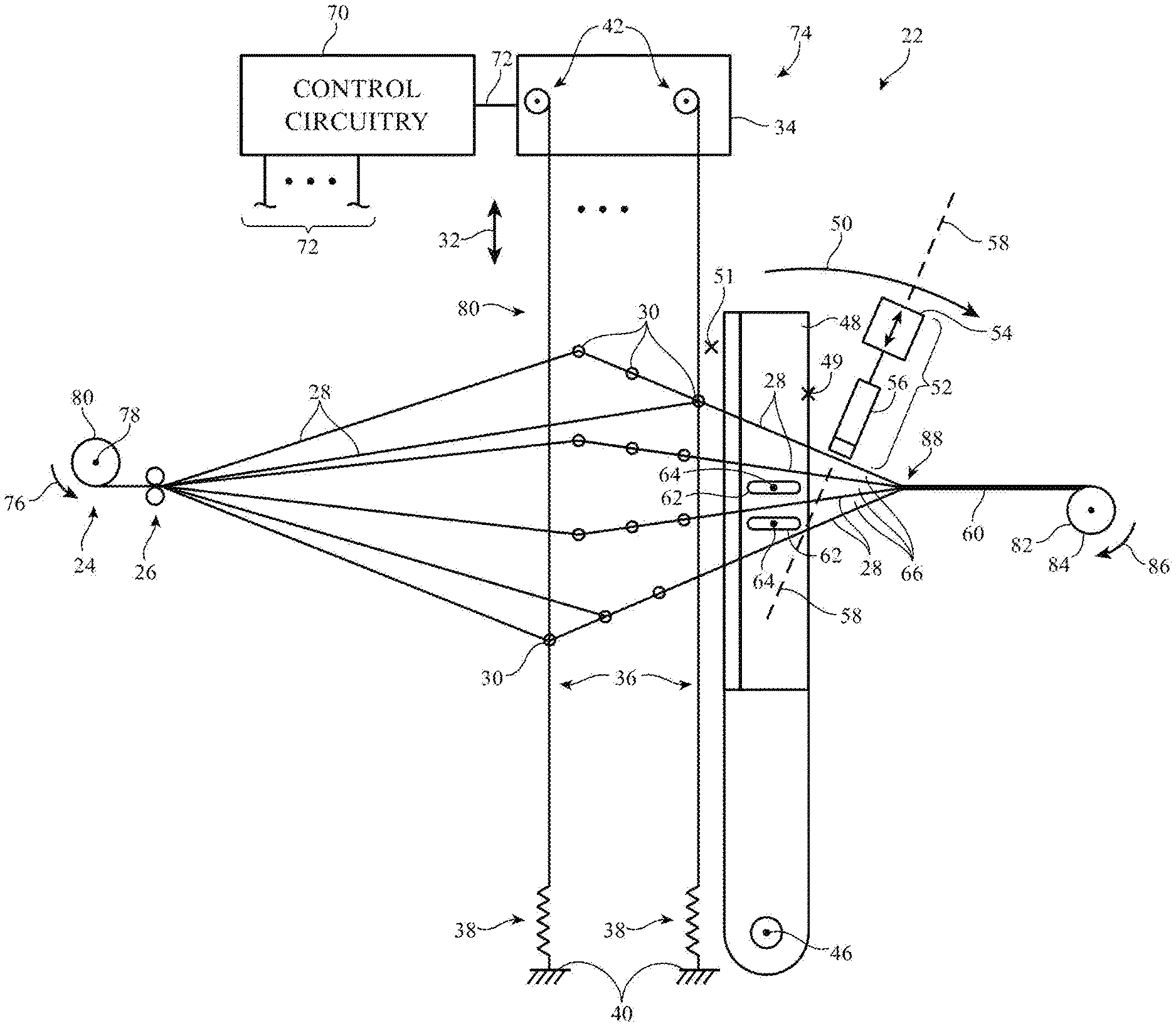

Weaving equipment may include warp strand positioning equipment that positions warp strands and weft strand positioning equipment that inserts weft strands among the warp strands to form fabric. One or more of the warp strands may be selectively modified along its length using a warp strand modification unit. The warp strand modification unit may be interposed between the fabric and a reed, may be interposed between the fabric and the warp strand positioning equipment, may be mounted to the reed, or may be incorporated elsewhere in the weaving equipment. Warp strand modifications may include adding segments of metallic paint coatings or other conductive coatings, adding insulating coatings, applying other liquids to segments of the warp strand, modifying the stretchiness of warp strands, removing material from segments of the warp strand, and attaching electrical components to the warp strand.
First Claim
Other Claims data not available
