Heavy Duty Transom for Structural Support Systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 25, 2022
app pub date -
Jul 3, 2020
filing date -
Jul 12, 2019
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

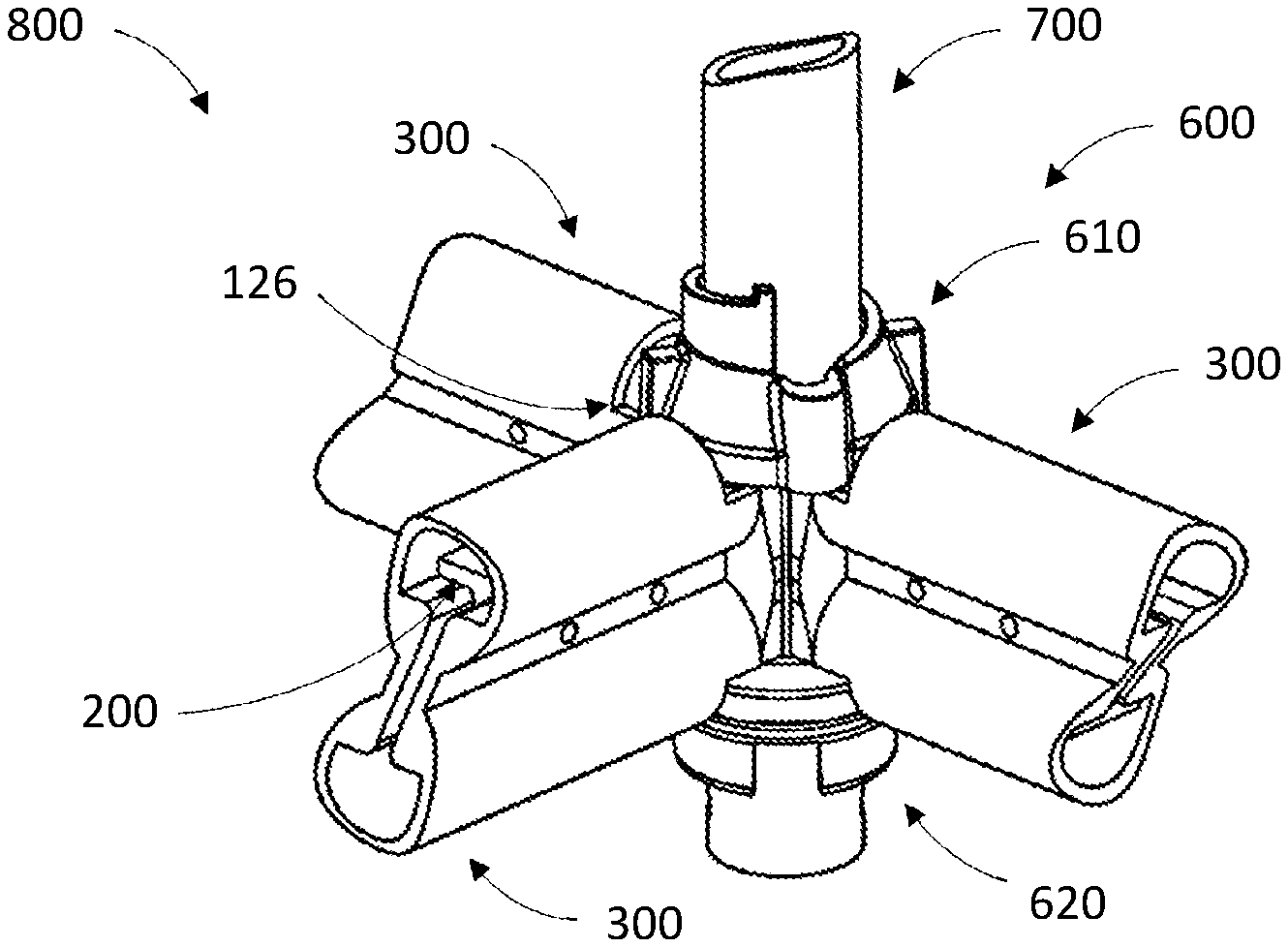

This publication relates to a tubular transom in particular for temporary structures, such as scaffolding or false work and similar structure, having ends configured to be connected to verticals at node sections arranged at intervals on the verticals. Each end of the transom comprises a fastening device with an integrated profile part, releasably attached to the tubular transom in an opening at the ends of the tubular transom. The transom comprises a first and at least second elongate, parallel and hollow tube elements, interconnected at least at each end by intermediate integrated web plates, rigidly fixed to said at least two tube elements. A contact surface of the opening in the first tube, is transversally arranged relative to one or more web plates. A contact surface of the opening in the second tube is transversally arranged relative to one or more web plates. The opening at the ends of the transom having at least partly a complimentary shape.
First Claim
Other Claims data not available
