Underwater projectile, associated assembly and launch method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 19, 2023
Grant Date -
Aug 18, 2022
app pub date -
Jul 16, 2020
filing date -
Jul 18, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

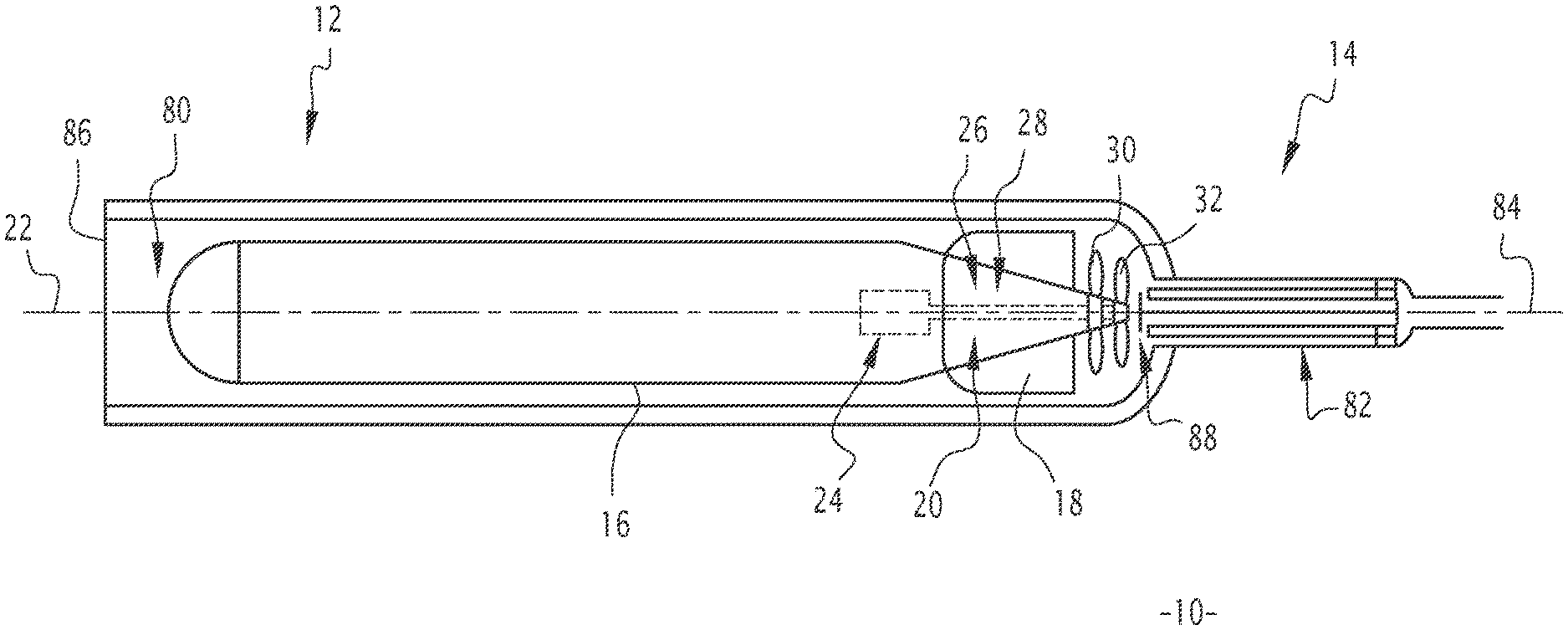

A projectile including: a shell; a rotating shaft; and a screw which can be rotated by the rotating shaft. The screw and the shell include, respectively, a stop and a counter-stop opposite each other. The screw is capable of sliding axially between a first position, in which a non-zero clearance is provided between the stop and counter-stop, and a second position, in which the stop and counter-stop are in contact. An elastic return element reversibly deformable between a first and a second state of stress which correspond to the first and second positions of the screw, respectively, the stress of the first state being lower than the stress of the second state.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- F41F Class
- 26 Applications Filed
- 21 Patents Issued To-Date
- 80.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F41F Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 19, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 19, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 19, 2035 |
