HEAT EXCHANGER BAFFLES AND METHODS FOR MANUFACTURING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 18, 2022
app pub date -
Jul 15, 2020
filing date -
Jul 16, 2019
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

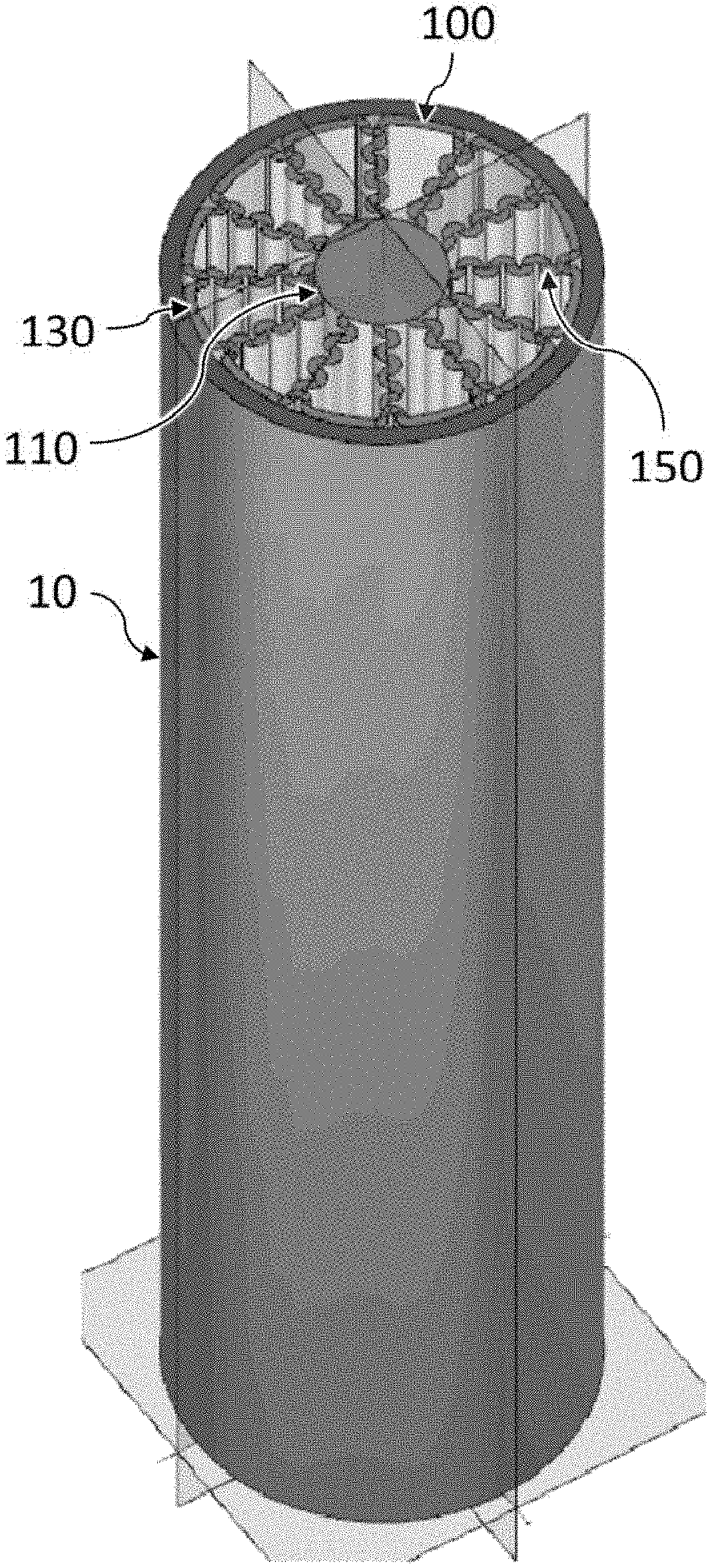

Water heaters, baffles for water heaters, and methods for manufacturing such baffles are disclosed, One baffle includes a core, an outer wall, and a plurality of fins. The outer wall surrounds the core and defines at least one flow path between the outer wall and the core. The plurality of fins extend from the outer wall toward the core. Each of the plurality of fins has a serpentine shape. One method for manufacturing a baffle includes extruding at least one portion of the baffle in one piece, the at least one portion of the baffle having an at least partially cylindrical outer wall u and a plurality of fins extending inward from the outer wall, each of the plurality of fins having a serpentine shape. One water heating system includes a burner, a vent, at least one flue tube, and at least one baffle as described above.
First Claim
Other Claims data not available
