BRINE DISPERSAL SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 18, 2022
app pub date -
May 6, 2022
filing date -
Feb 9, 2017
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

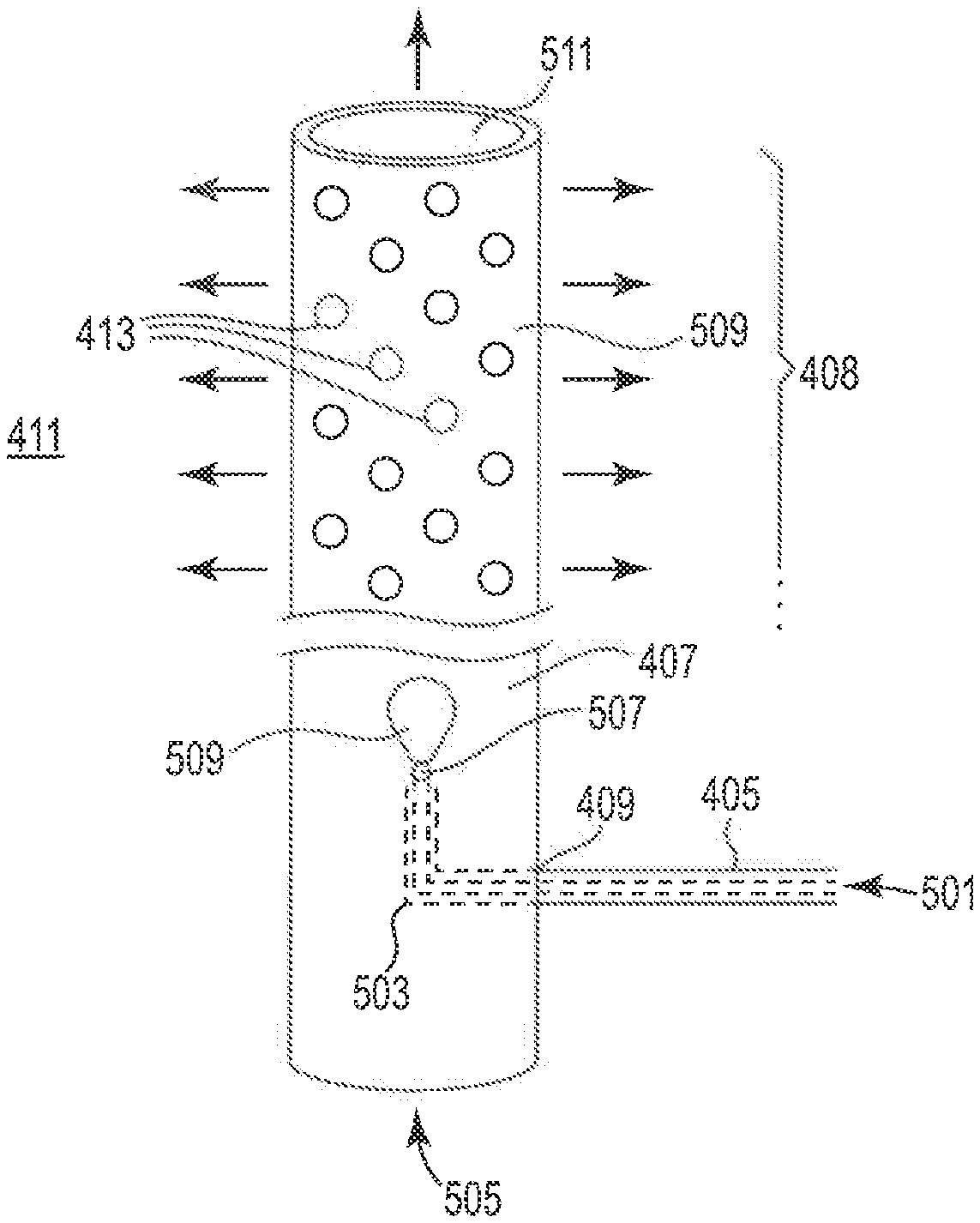

A desalination brine dispersal apparatus and method employ airlift to remove, oxygenate and disperse brine from a desalination apparatus. The apparatus includes a brine removal conduit having a brine inlet that receives brine from the desalination apparatus, a plurality of brine outlets submerged in seawater and one or more air introduction points located at depths below the brine outlets. The supplied air oxygenates and moves brine through the brine removal conduit and outlets via airlift and disperses the brine into seawater away from the brine removal conduit. The apparatus avoids the formation of concentrated, high shear brine plumes and can disperse brine into seawater over a wide area well away from the brine removal conduit.
First Claim
Other Claims data not available
