COMPRESSION GARMENT WITH MULTIPLE COMPRESSION FORCES AND METHOD FOR FORMING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 18, 2022
app pub date -
Oct 4, 2021
filing date -
Aug 22, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

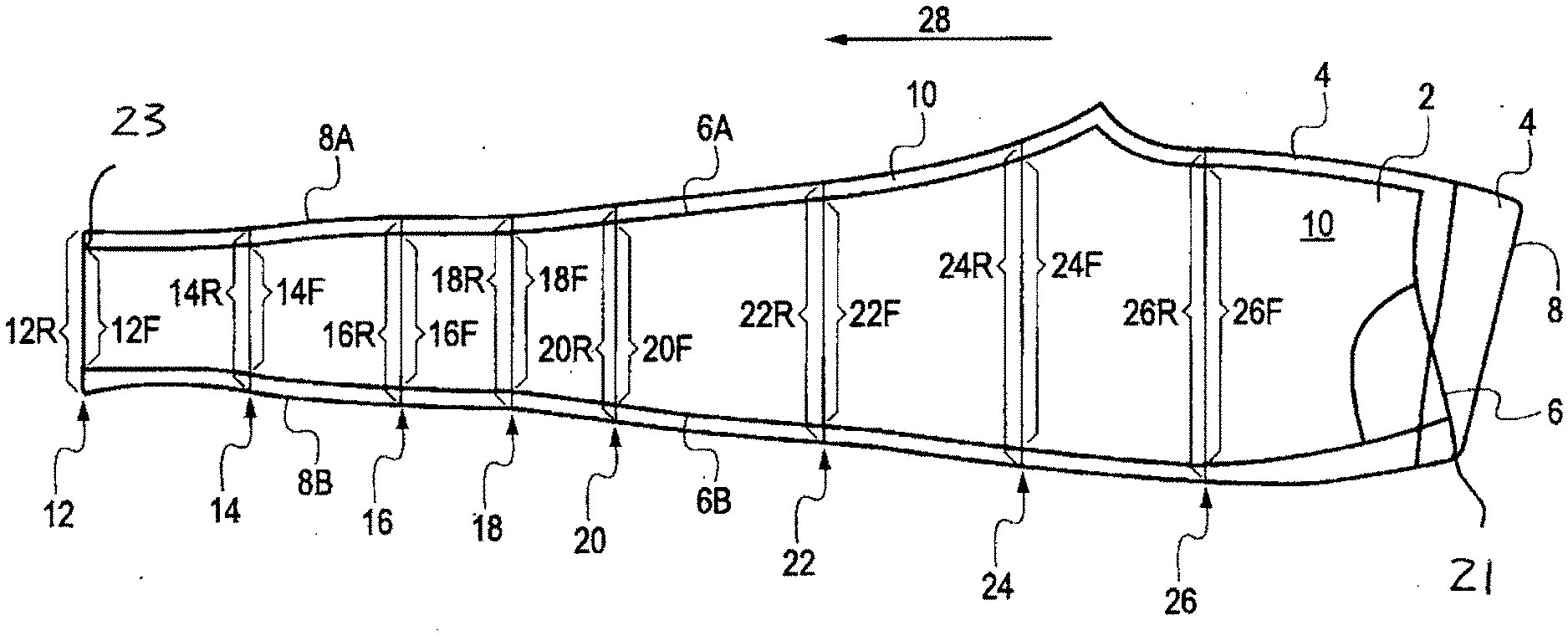

The disclosure provides a compression garment (68) formed of a stretchable fabric (10) with a uniform, i.e. constant, elasticity but in which the compression garment provides different degrees of garment compression when worn by a wearer due to geometric cuts (6, 8) made to the fabric to form one or more fabric panels (2, 4) that extend the entire length of the circumferential portion (60) of the garment. The circumferential portion surrounds a wearer's body part (66) and includes degrees of compression that vary at different locations (12, 14, 16, 18, 20, 22, 24, 26), along the axial direction (62). The geometric cuts produce non-linear edges (6A, 6B, 8A, 8B) and are made to provide different circumferential lengths (12F, 14F, 16F, 18F, 20F, 22F, 24F, 26F) of fabric that produce desired compression levels at various axial locations, and are calculated using formulas and algorithms that take into account various factors relating to the fabric and the garment being formed.
First Claim
Other Claims data not available
