Particle separation by density
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 30, 2023
Grant Date -
Jul 21, 2022
app pub date -
Apr 6, 2022
filing date -
Apr 21, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

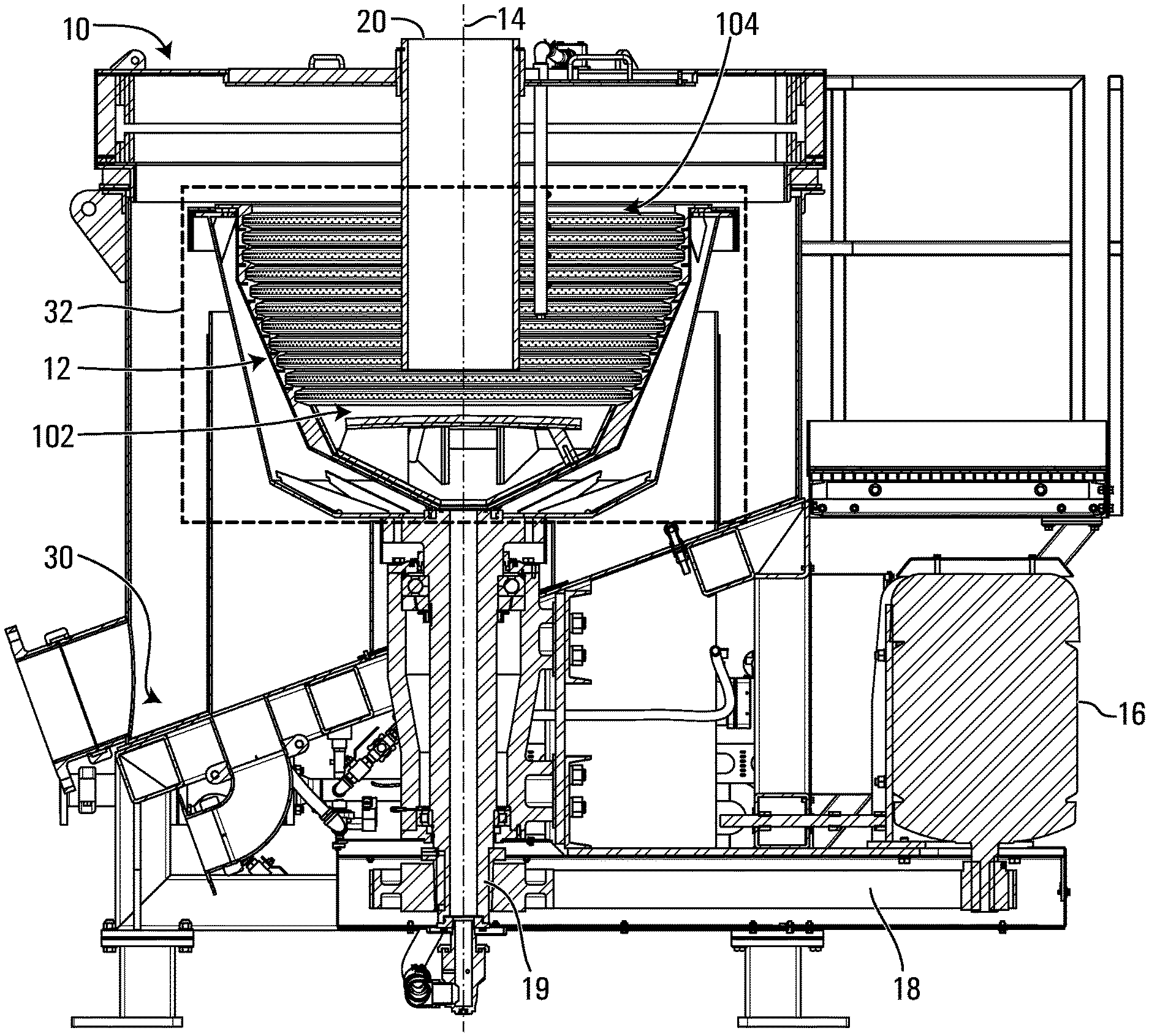

An apparatus for facilitating particle separation by density includes a separator having an inner surface surrounding a rotation axis and defining a particle path from an input end to an axially spaced output end. The inner surface includes a plurality of axially spaced dividers having respective inner positions, defining at least in part respective axially spaced retainers for collecting particles during rotation of the separator. The retainers each include at least one fluid inlet for fluidizing particles in the retainer during operation. The dividers include a first pair of adjacent dividers and a second pair of adjacent dividers, the first pair nearer the input end than the second pair, wherein a first divider slope of the first pair is greater than a second divider slope of the second pair and wherein each of the first and second divider slopes is zero or positive. Other systems, apparatuses and methods are disclosed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2022 Application Filing Year
- B04B Class
- 100 Applications Filed
- 26 Patents Issued To-Date
- 26 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B04B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Nov 30, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 30, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 30, 2034 |
