Method of mounting a roof structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 15, 2023
Grant Date -
Jul 14, 2022
app pub date -
Apr 19, 2019
filing date -
Apr 19, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

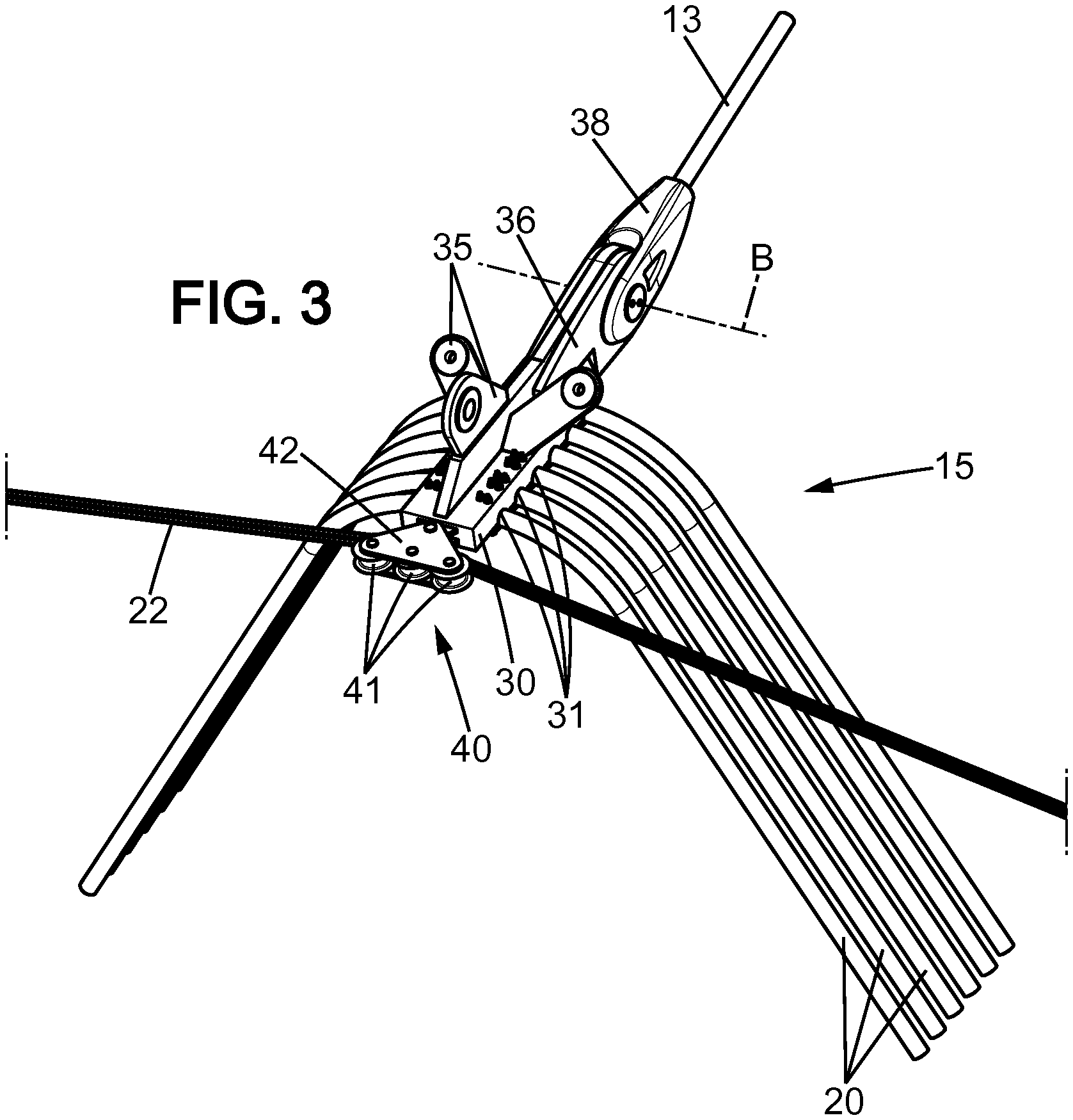

For an enclosure including a ground area (2), a spectator area (3) around the ground area and a plurality of bearing points (12) around and above the spectator area, the method of mounting a roof structure comprises: assembling a tension ring (14) at the level of the ground area, the tension ring comprising at least one first cable extending along the tension ring and a plurality of connectors (15) spaced along the tension ring; attaching a plurality of second cables (13) to the plurality of connectors, each second cable having a first end connected to a respective one of the connectors and extending radially and outwardly from the tension ring, each second cable being associated with a respective one of the bearing points (12); and lifting the tension ring by pulling the connectors (15) by the second cables (13).
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2020212718 | Apr 19, 2019 |
| EP | B1 | EP3956529 | Apr 19, 2019 |
International Classification(s)
- 2019 Application Filing Year
- E04B Class
- 1238 Applications Filed
- 821 Patents Issued To-Date
- 66.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E04B Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 15, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 15, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 15, 2035 |
