ULTRA LOW PERMEABILITY AND HIGH SEAM STRENGTH FABRIC AND METHODS OF MAKING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 7, 2022
app pub date -
Apr 28, 2020
filing date -
Apr 30, 2019
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

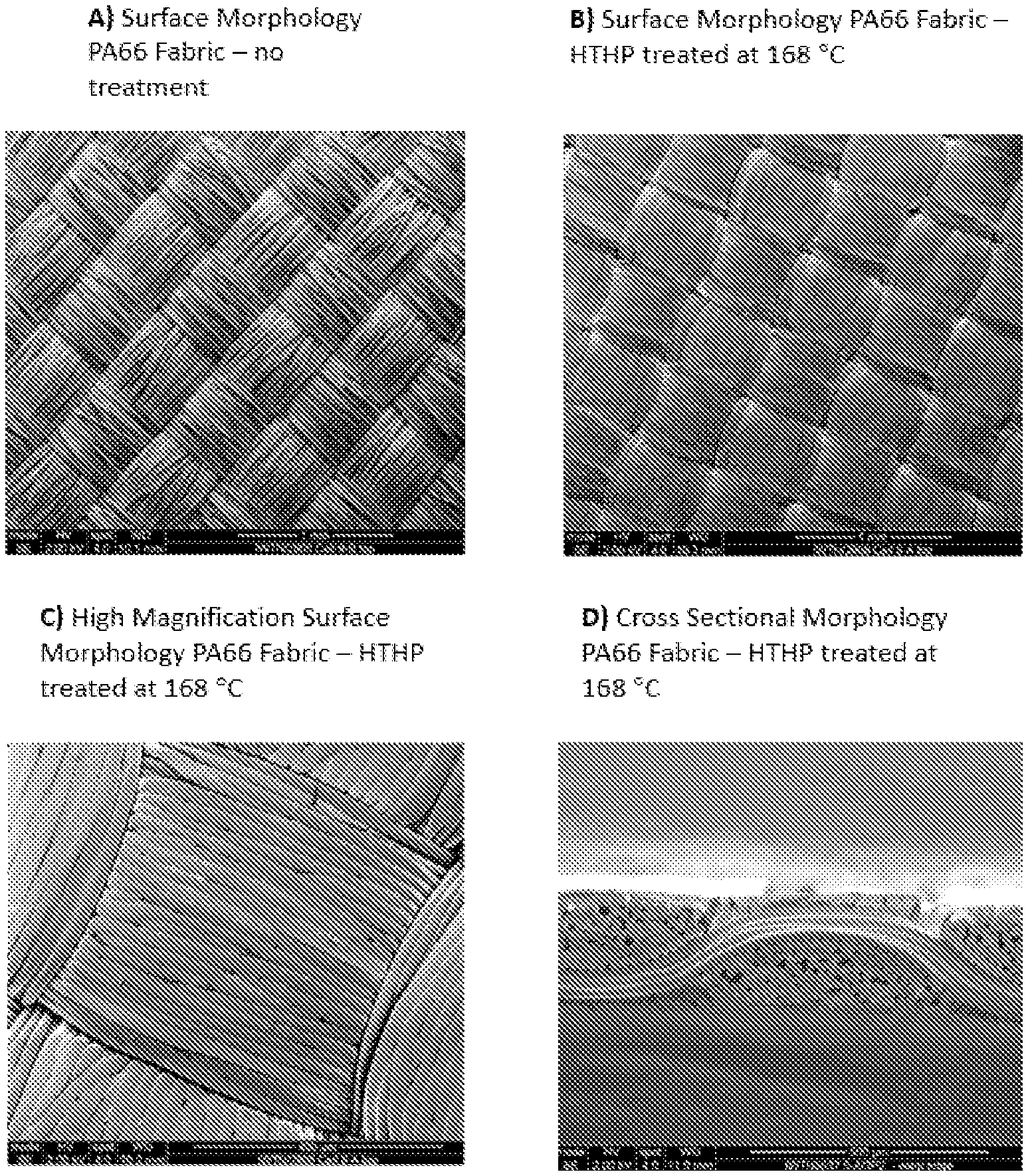

An uncoated woven fabric of yarn formed from synthetic fibers woven in the warp direction and weft direction to form a top surface and a bottom wherein the fabric is treated in order to permanently modify the fabric surface structure such that fibrillous or apical structures extend approximately normal to the surface of the fabric, and at least a portion of the yarn on the top surface and/or at least a portion of the yarn on the bottom surface have warp and weft fibers which are melt fused together at their intersections, and a majority of the yarn on the top surface and/or a majority of the yarn on the bottom surface have fibers with a permanently modified cross-section that are fused together, is provided. Methods for production and use of this fabric in application to products such as automobile airbags, sailcloths, inflatable slides, temporary shelters, tents, ducts, coverings and printed media are also provided.
First Claim
Other Claims data not available
