Unit Element for Asynchronous Analog Multiplier Accumulator
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
N/A
Issued Date -
Jun 30, 2022
app pub date -
Dec 31, 2020
filing date -
Dec 31, 2020
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

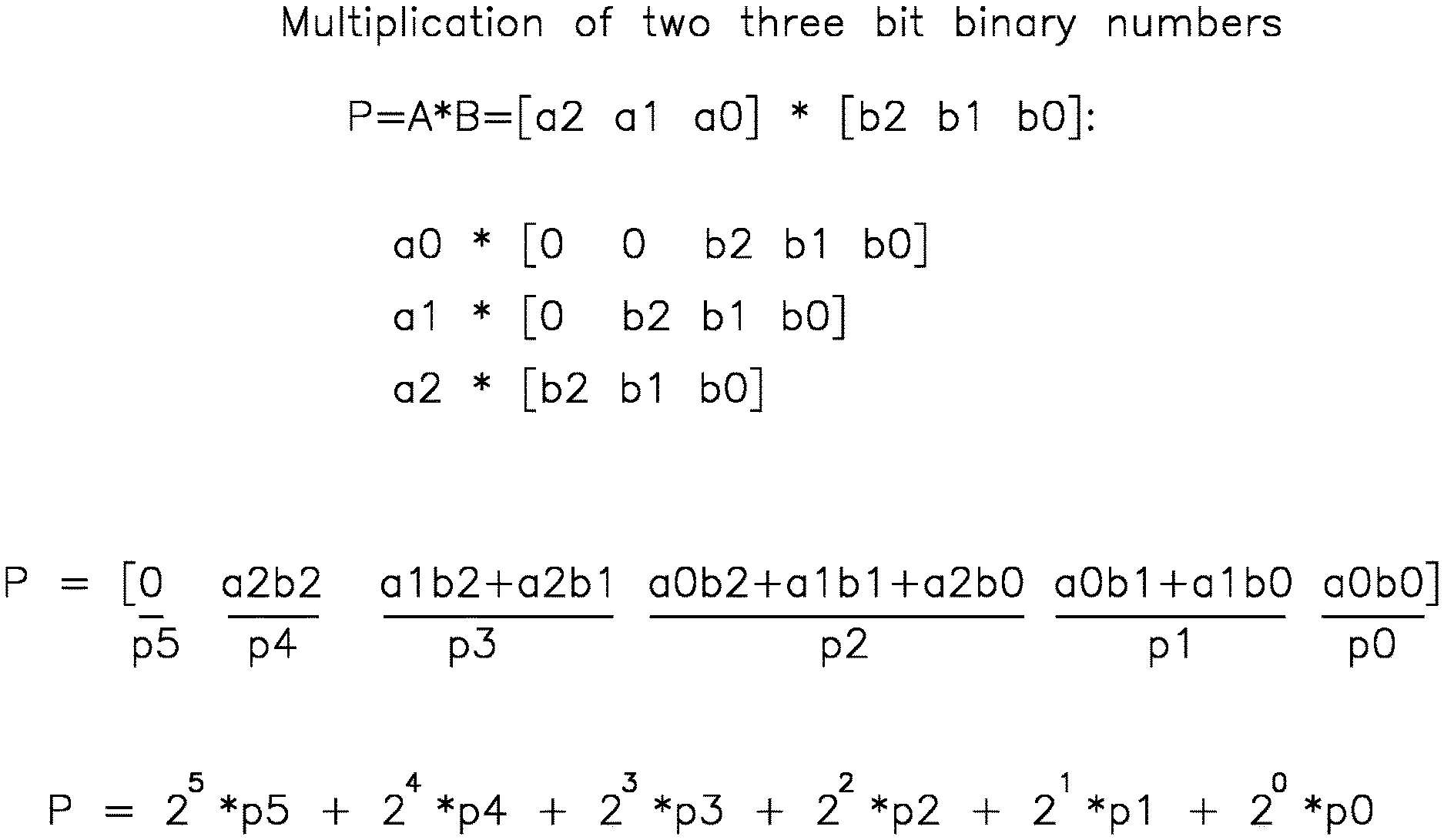

A multiplier-accumulator accepts A and B digital inputs and generates a dot product P by applying the bits of the A input and the bits of the B inputs to unit elements comprised of groups of AND gates coupled to charge transfer lines through a capacitor Cu. The number of bits in the B input is a number of AND-groups and the number of bits in A is the number of AND gates in an AND-group. Each unit element receives one bit of the B input applied to all of the AND gates of the unit element, and each unit element having the bits of A applied to each associated AND gate input of each unit element. The AND gates are coupled to charge transfer lines through a capacitor Cu, and the charge transfer lines couple to binary weighted charge summing capacitors which sum and scale the charges from the charge transfer lines, the charge coupled to an analog to digital converter which forms the dot product output. The charge transfer lines may span multiple unit elements.
First Claim
Other Claims data not available
