A METHOD FOR CONTROLLING A LIFTING AND LOWERING SEQUENCE OF A VEHICLE AND A VEHICLE COMPRISING A CHASSIS STRUCTURE AND A LOAD CARRYING BODY

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20220185162A1
SERIAL NO

17594338

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

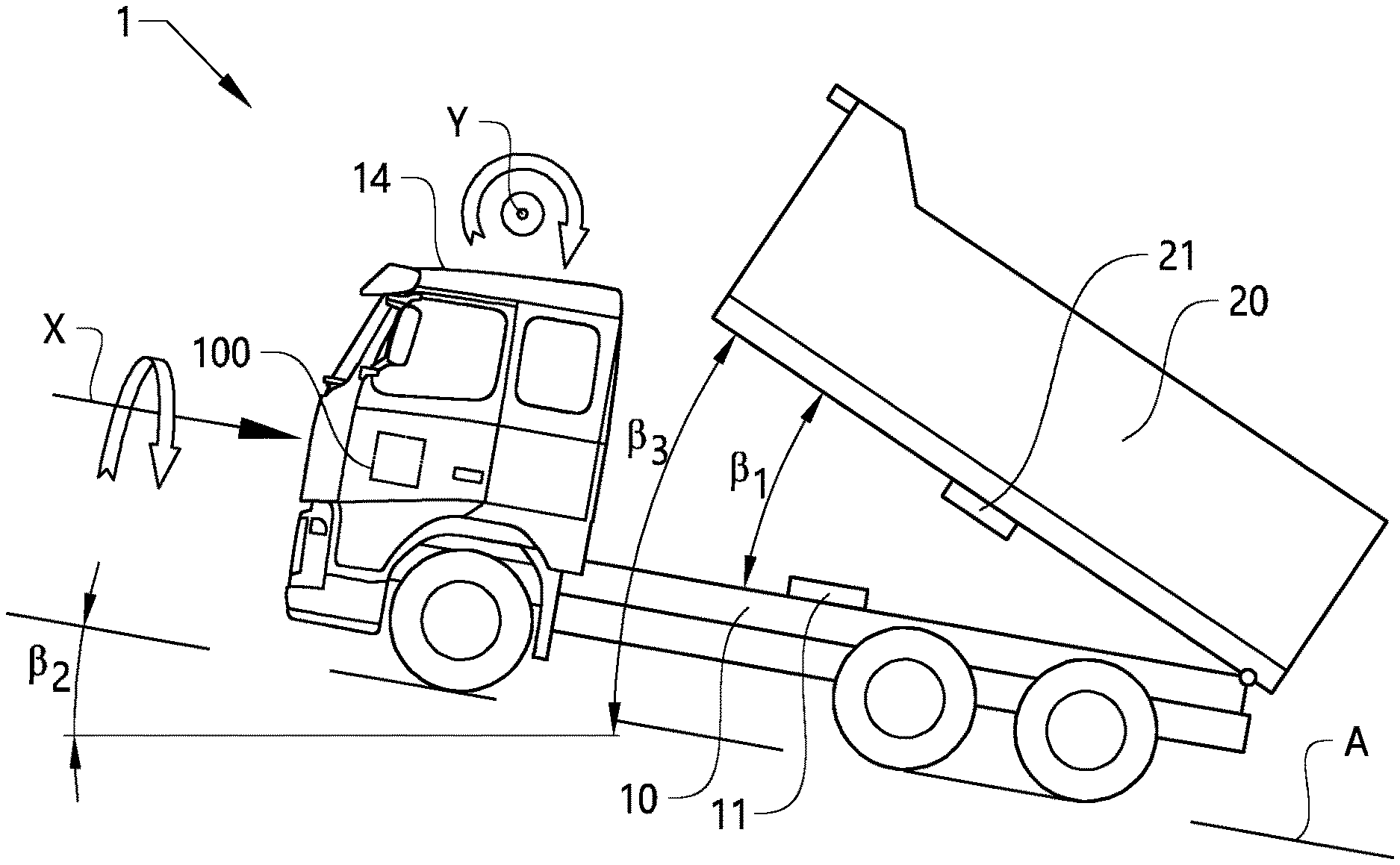

The present disclosure relates to a method for controlling a lifting and lowering sequence of a load carrying body (20) of a vehicle (1) and to a vehicle comprising a chassis structure (10) and the load carrying body (20) pivotally mounted on the chassis structure (10) with respect to a pivot axis being substantially parallel to either a pitch axis (Y) or a roll axis (X) of the vehicle, wherein the vehicle (1) comprises sensing means (11) provided on the chassis structure for measuring roll angle and pitch angle of the chassis structure and sensing means (21) provided on the load carrying body for measuring roll angle and pitch angle of the load carrying body. The method comprises the steps of: —(S1) measuring roll angle and pitch angle of the chassis structure and of the load carrying body during the lifting and lowering sequence, by means of the sensing means, —(S2) determining absolute roll angle and pitch angle of the chassis structure and the load carrying body, respectively, with respect to a reference, —(S3) determining a relative roll angle between the chassis structure and the load carrying body by comparing the measured roll angles of the chassis structure and the load carrying body when the load carrying body is pivotally mounted with respect to the pivot axis being substantially parallel to the pitch axis, or determining a relative pitch angle between the chassis structure and the load carrying body by comparing the measured pitch angles of the chassis structure and the load carrying body when the load carrying body is pivotally mounted with respect to the pivot axis being substantially parallel to the roll axis, —(S4) controlling the lifting and lowering sequence at least based on the determined absolute and relative angles.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
VOLVO AUTONOMOUS SOLUTIONS AB405 08 GÖTEBORG

International Classification(s)

loading....
  • 2019 Application Filing Year
  • B60P Class
  • 724 Applications Filed
  • 501 Patents Issued To-Date
  • 69.20 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20192020202120222023202420250255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
HAGERSKANS, Jonas Landvetter, SE 5 4
