VERTICAL LAUNCH SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 9, 2022
app pub date -
Dec 8, 2020
filing date -
Dec 8, 2020
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

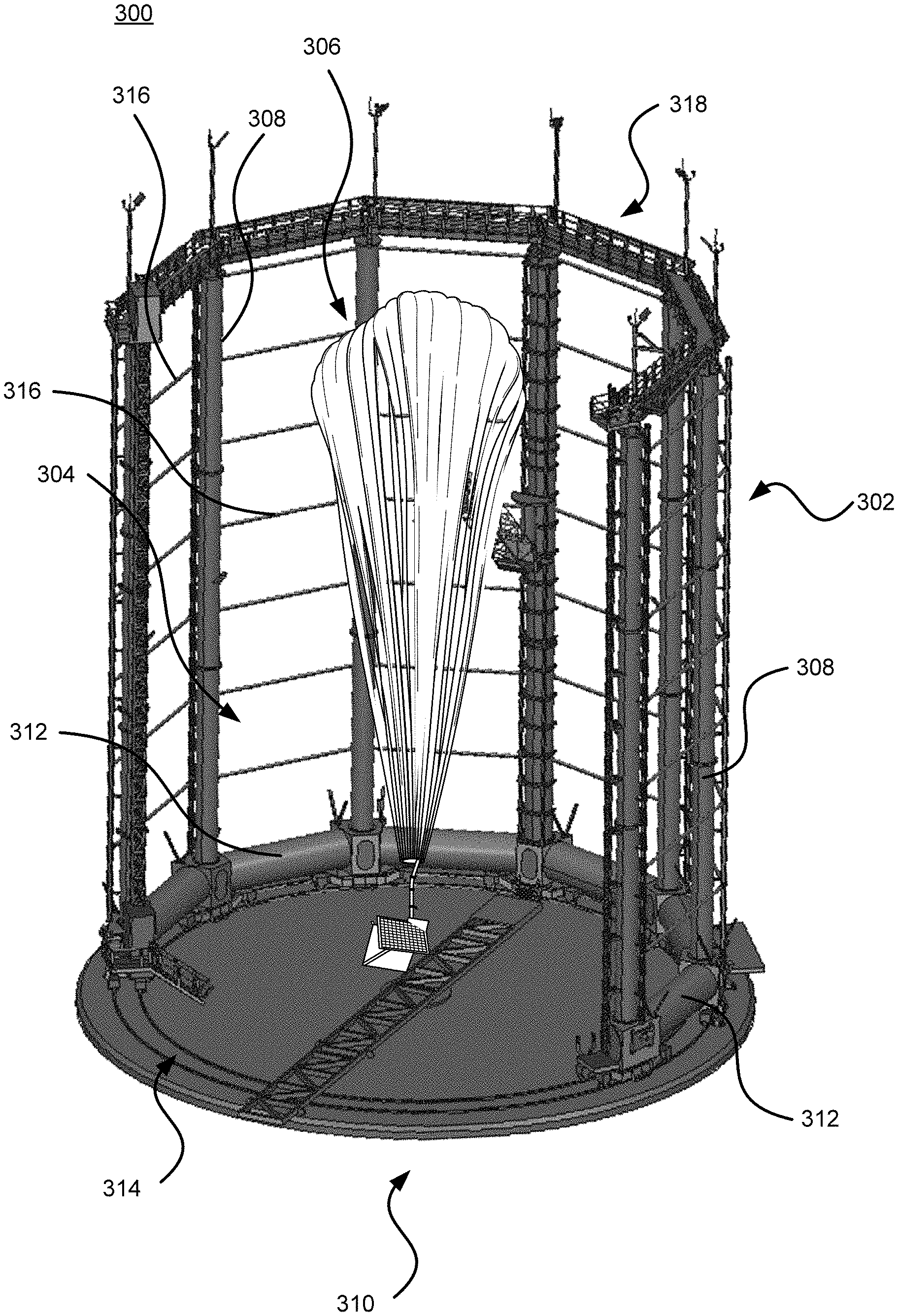

The technology provides a launch rig structure capable of filling a very large balloon envelope while the balloon is arranged vertically. The filled balloon is capable of staying aloft in the stratosphere with its payload for months or longer. The launch rig structure is configured to rotate up to 360° in response to current wind conditions. It includes an integrated lifting boom and gas handling system to fill the envelope. A payload release assembly is configured to couple with a rigid connection member of the balloon, enabling the envelope to be filled while in a vertical orientation. The payload release assembly is part of a launch cart that is positioned within the interior space of the launch rig. A gripper assembly engages with the rigid connection member. Once the envelope is filled, the gripper assembly disengages from the connection member so that the balloon floats away from the launch rig.
First Claim
Other Claims data not available
