METHODS AND APPARATUS FOR CONTROL OF RADIOGRAPHIC SOURCE EXPOSURE
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
N/A
Issued Date -
Apr 28, 2022
app pub date -
Oct 13, 2021
filing date -
Oct 13, 2021
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

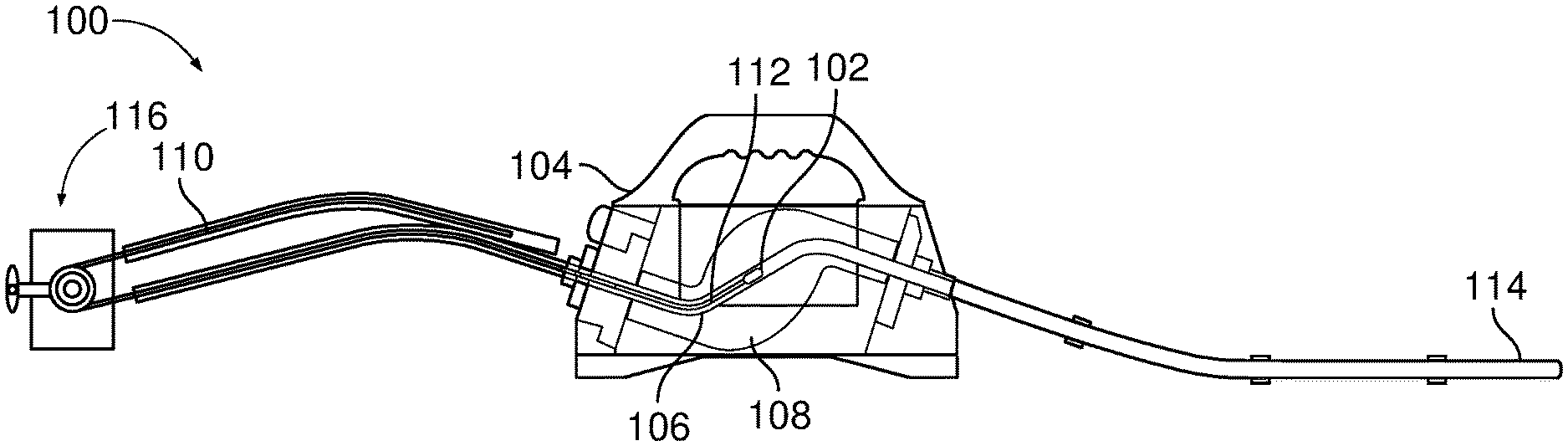

An example remote control for a radiographic source includes: a forward cable section configured to extend into and through a radiographic source housing, to expose a radiographic source to an exterior of the housing, and to retract into and through the radiographic source housing to retract the radiographic source into the radiographic housing; a drive cable section coupled to the forward cable section; and a drive gear configured to extend the forward cable section by driving the drive cable section in a first direction, and to retract the forward cable section by driving the drive cable section in a second direction, wherein the forward cable has a smooth exterior surface to have a lower friction than the drive cable section while traversing the radiographic source housing.
First Claim
Other Claims data not available
