METHODS AND SYSTEMS FOR DC CURRENT INTERRUPTER BASED ON THERMIONIC ARC EXTINCTION VIA ANODE ION DEPLETION
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
N/A
Issued Date -
Mar 3, 2022
app pub date -
Nov 11, 2021
filing date -
Nov 11, 2021
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

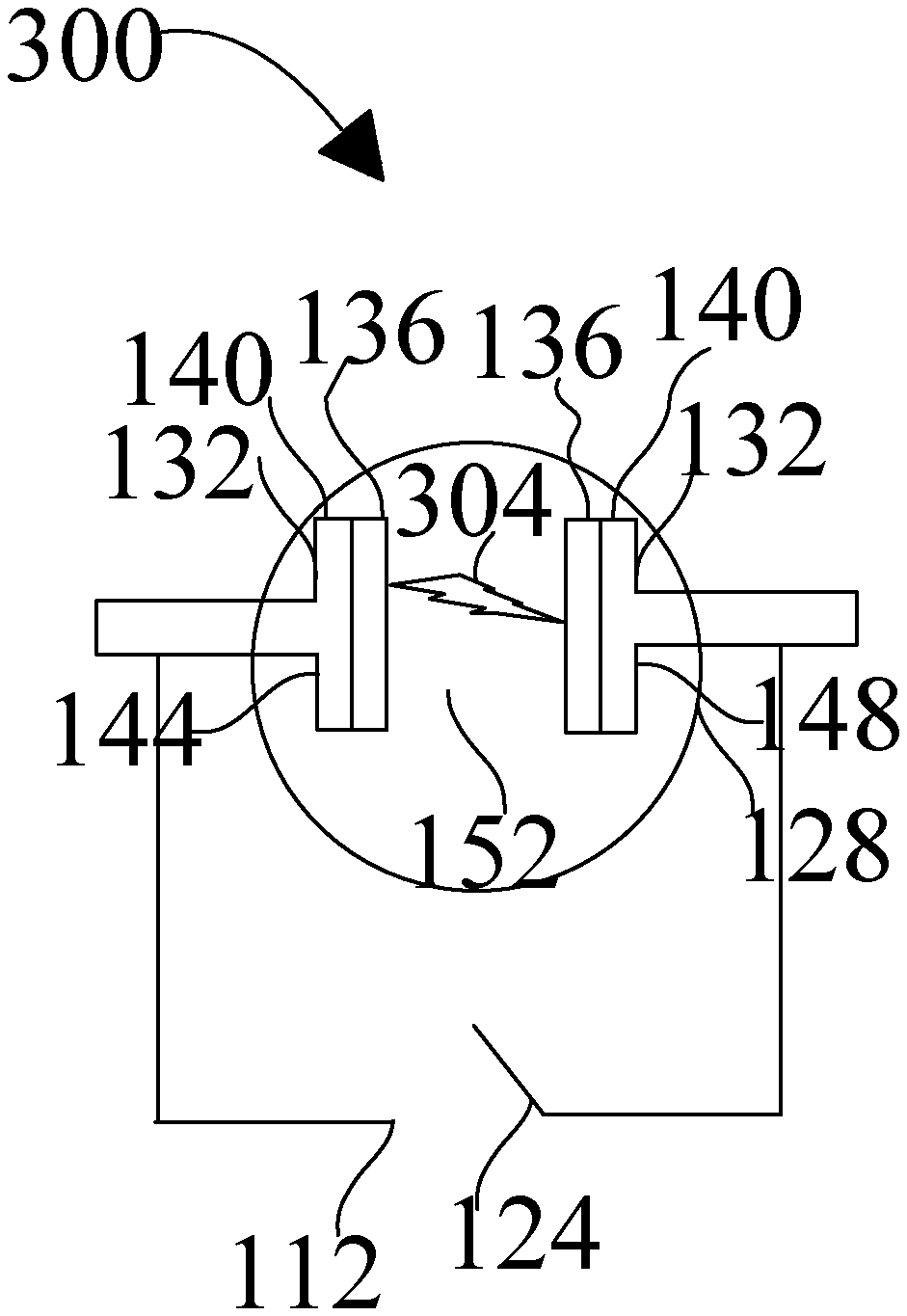

A system for isolating a fault in a direct current (DC) grid using thermionic arc extinction. The system includes a DC grid that includes a transmission line. The DC grid also includes a plurality of current interrupters disposed on the transmission line. Each of the plurality of current interrupters on the transmission line are electrically coupled to one another in series. At least one of the current interrupters includes a fixed terminal end and a moveable terminal end. Further, at least one of the current interrupters has an arc shield housing at least two arcing contacts. At least one of the arcing contacts comprises a first conducting material that has a first vaporizing point.
First Claim
Other Claims data not available
