AN IMPROVED STRING FOR A MUSICAL INSTRUMENT
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
N/A
Issued Date -
Dec 30, 2021
app pub date -
Nov 15, 2019
filing date -
Nov 15, 2019
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

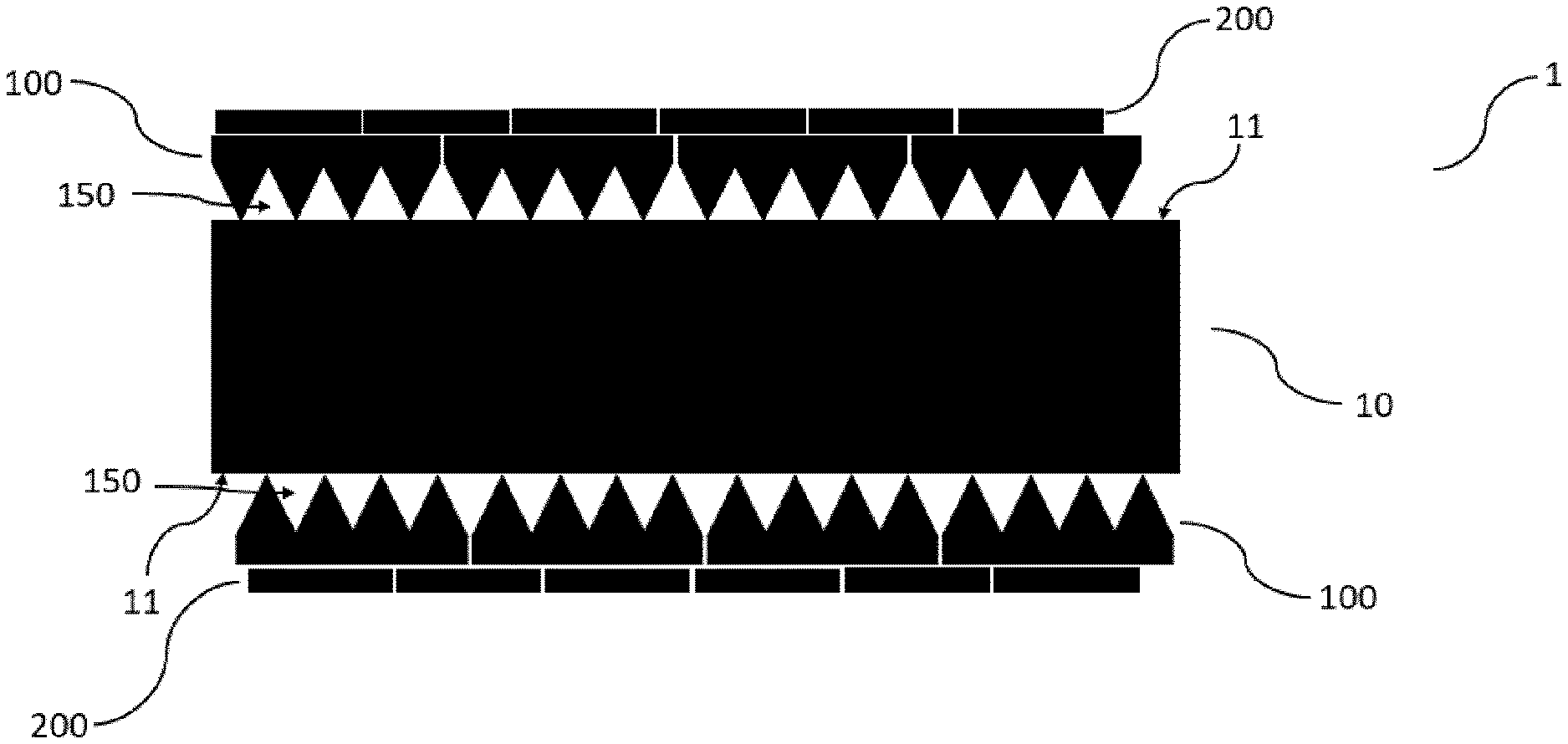

The invention relates to a string (1) for a stringed, bowed musical instrument, for example a bowed musical instrument like violin, viola or cello. The string has a first, load bearing core (10) and a winding strand (100) wound around the first core in helical windings. A damping agent (40) suitable for vibration damping is arranged in a profiled recess (150) in the winding strand. The recess is functioning as a reservoir between the first core and the winding strand. The reservoir is containing and/or retaining the damping agent so as to, at least, reduce dissipation of the damping agent through a gap between the adjacent helical windings of the winding strand. The invention results in a longer lifetime with optimum acoustic properties of the string.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
LARSEN STRINGS A/S | ELHOLM 6A SONDERBORG 6400 |
International Classification(s)

- 2019 Application Filing Year
- B29D Class
- 873 Applications Filed
- 565 Patents Issued To-Date
- 64.72 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
LARSEN, Laurits Thorvald | Sønderborg, DK | 2 | 0 |
# of filed Patents : 2 Total Citations : 0 | |||
SIGVARDT, Kristian B | Sønderborg, DK | 1 | 0 |
# of filed Patents : 1 Total Citations : 0 | |||
ZWIEG, Thomas | Aabenraa, DK | 6 | 13 |
# of filed Patents : 6 Total Citations : 13 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- B29D Class
- 0 % this patent is cited more than
- 4 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jun 30, 2025 |
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 30, 2029 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 30, 2033 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 3.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
