APPARATUS AND METHOD FOR MANUFACTURING PROPELLANT
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
N/A
Issued Date -
Dec 23, 2021
app pub date -
Jun 22, 2021
filing date -
Jun 22, 2021
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

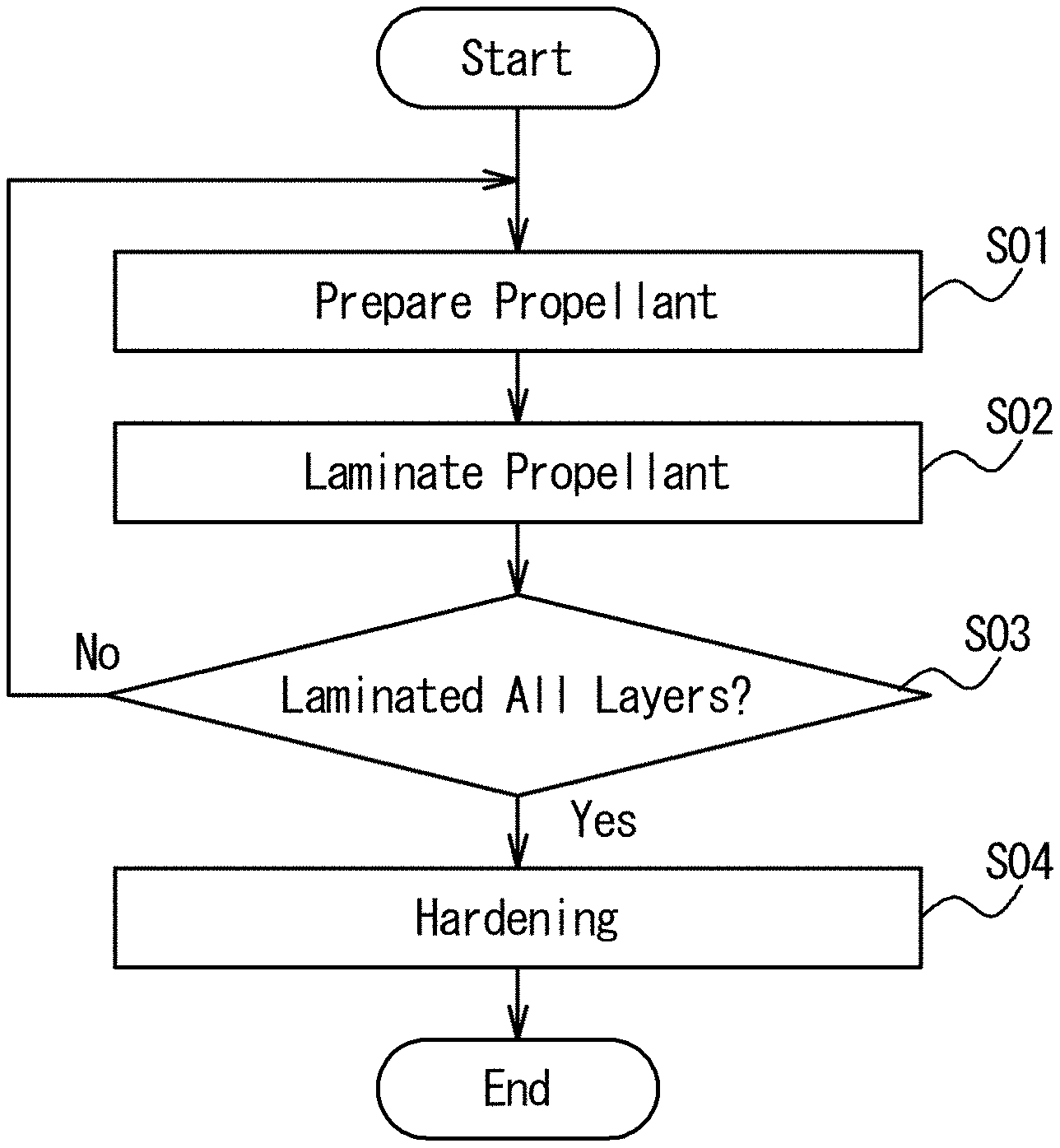

A propellant manufacturing method for manufacturing a propellant including a propellant grain having a first surface on which combustion starts upon ignition and a second surface to be coupled to a wall surface that prevents combustion. The manufacturing method includes placing a portion of first propellant having a first burning rate in a first space containing a first position on the second surface; and placing a portion of second propellant having a second burning rate higher than the first burning rate in a second space containing a second position on the first propellant. The method further includes placing a portion of third propellant having a third burning rate higher than the second burning rate in a third space containing a third position on the first propellant. The method further includes completing the propellant grain by simultaneously hardening the entireties of the first propellant, the second propellant, and the third propellant.
First Claim
Other Claims data not available
