GROOVED POROUS MEDIA GAS TRAP FOR TERRESTRIAL AND MICROGRAVITY ENVIRONMENT
Number of patents in Portfolio can not be more than 2000
United States of America
Stats
-
N/A
Issued Date -
Dec 9, 2021
app pub date -
Jun 8, 2020
filing date -
Jun 8, 2020
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

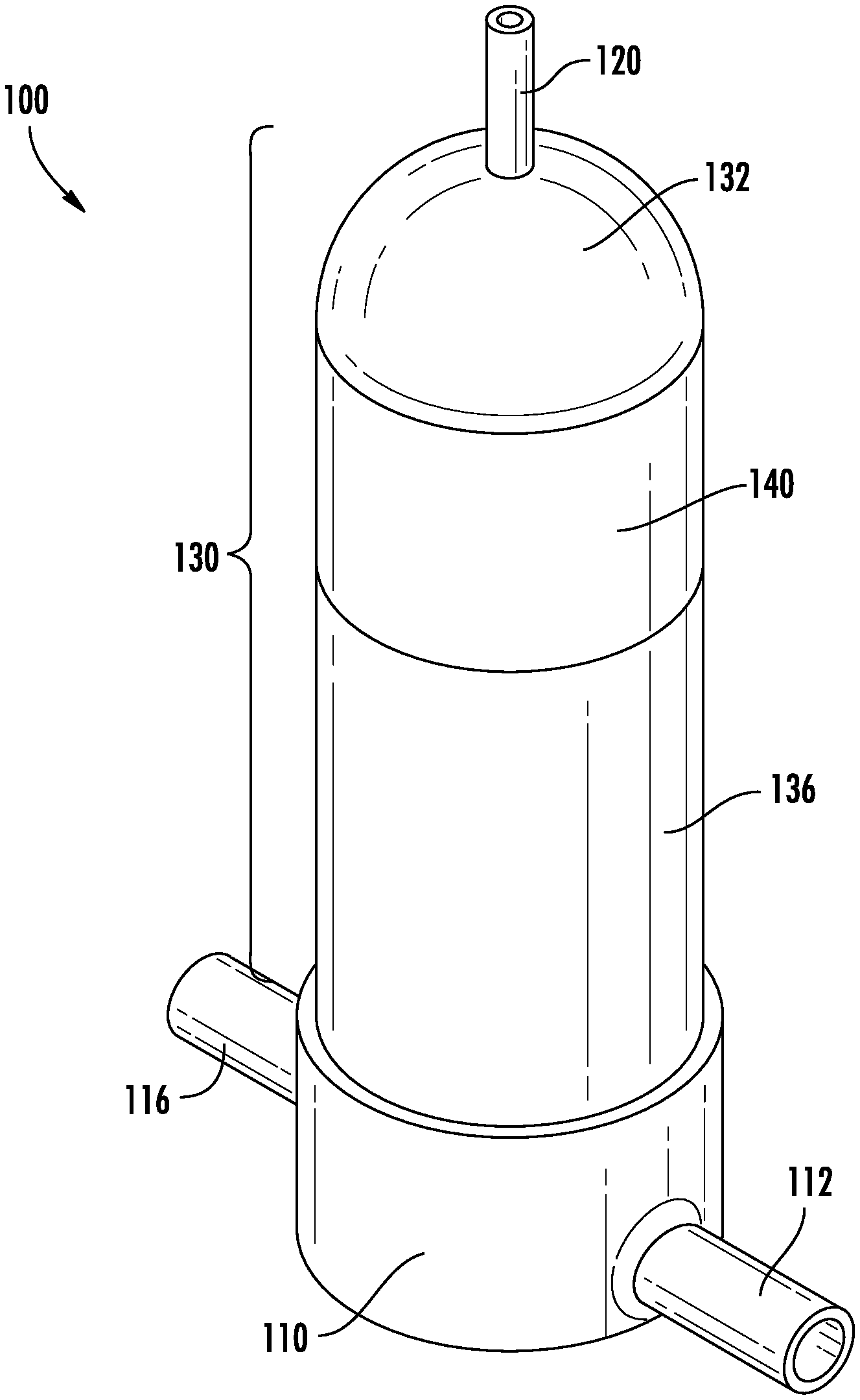

A gas trap assembly including a base connector housing including an inflow port and an outflow port, a reservoir fluidly connecting the inflow port to the outflow port, and a grooved porous media located within the reservoir. The grooved porous media including a plurality of grooves and composed of a material having a plurality of pores of a selected size. The grooved porous media fluidly divides the reservoir into two portions in such a way that a working fluid flowing from the inflow port to the outflow port must flow through the plurality of grooves and the plurality of pores of the grooved porous media. The plurality of grooves and the plurality of pores are configured to prevent gas from passing through the grooved porous media.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B01D Class
- 0 % this patent is cited more than
- 4 Age
