Clean power generation system for gas power turbines
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2022
Grant Date -
Dec 2, 2021
app pub date -
Aug 12, 2021
filing date -
Oct 28, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

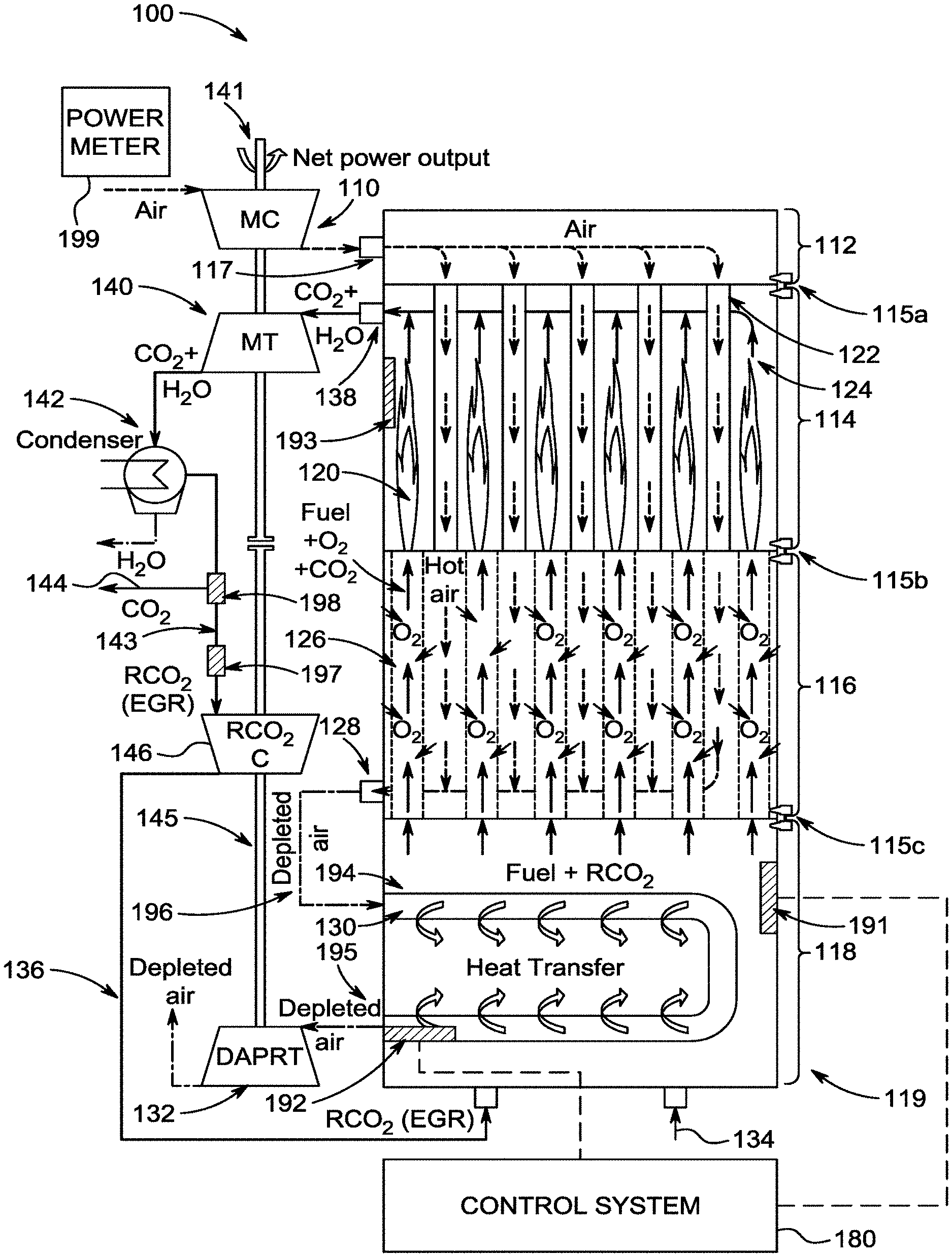

An integrated ITM micromixer burner shell and tube design for clean combustion in gas turbines includes an oxy-fuel micromixer burner for separating oxygen from air within the burner to perform oxy-combustion, resulting in an exhaust stream that consists of CO2 and H2O. The shell and tube combustion chamber is designed so that preheated air enters a headend having an array of ion transfer membrane (ITM) tubes that separate oxygen from the preheated air and anchor flamelets on the shell side. The combustion products of the oxy-fuel flamelets expand through a turbine for power generation, before H2O is separated from CO2 by condensation. A portion of the effluent CO2 is compressed back into the burner system, while the remainder is captured for sequestration/utilization.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02M Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 23, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 23, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 23, 2034 |
