Universal mounting clamps system and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 13, 2022
Grant Date -
Oct 28, 2021
app pub date -
Jul 5, 2021
filing date -
Nov 15, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

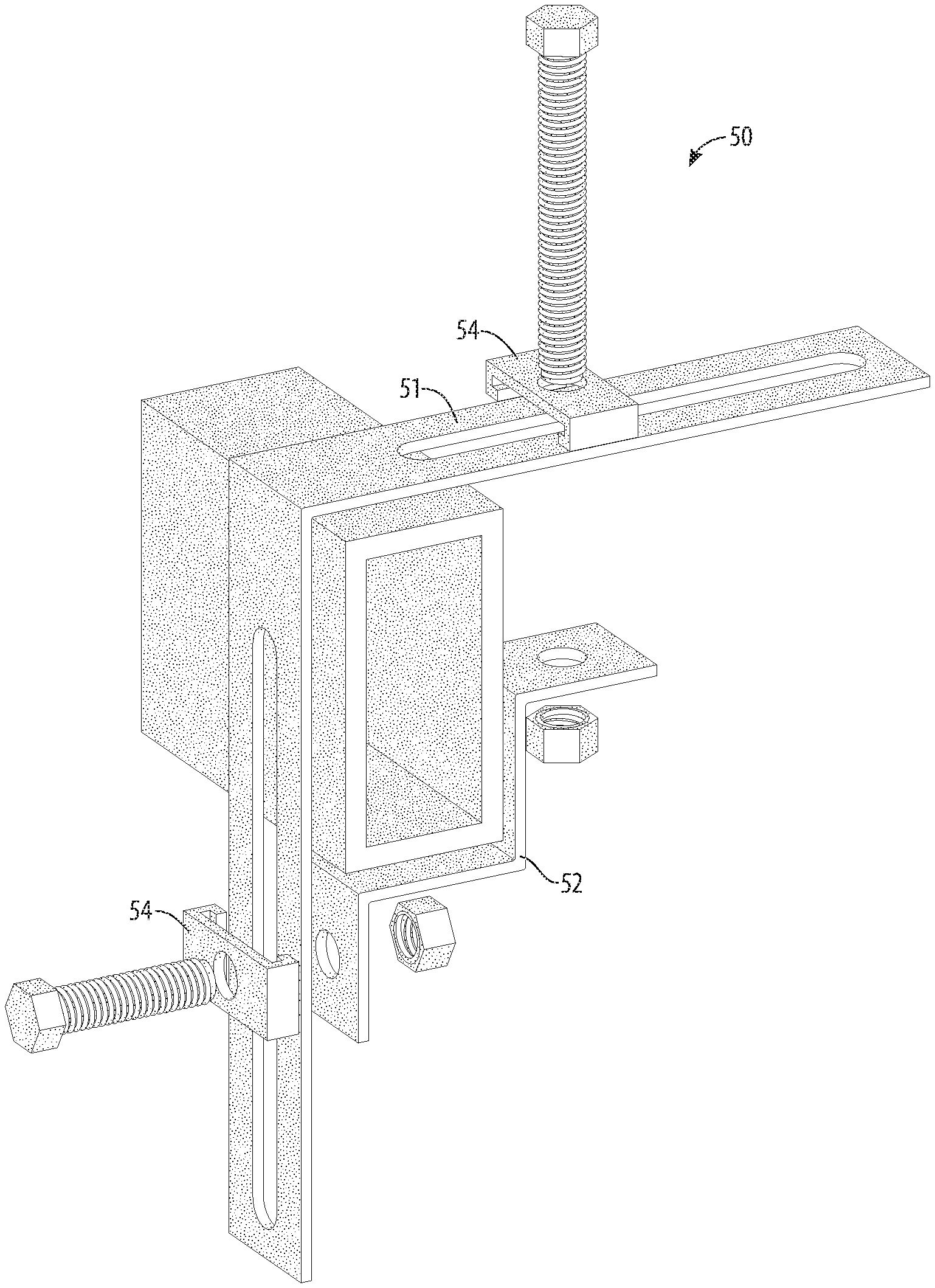

A universal mounting clamps system and method for mounting a variety of accessories upon structures having various square, rectangular, or rounded profiles and various ratios and sizes, such as vehicle trailer hitches or bumpers, beams, posts, tubes, and pipes. In an angled-profile-structure embodiment using an angled mounting-clamp unit, an accessory-mount bracket is placed over a corner of the structure and provides area for mounting accessories. A clamping bracket is placed over the diagonally opposite corner of the structure and is fastened to the accessory-mount bracket using a fastener positioner. In a rounded-profile-structure embodiment, a curved mounting-clamp unit is fastened to the structure through a fastener slot, a positioner leg is held in position against the structure, and an accessory-mount leg is held extended from the structure and provides an area for mounting accessories.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | B2 | US11053964 | Nov 13, 2019 |
International Classification(s)
- 2021 Application Filing Year
- F16L Class
- 1545 Applications Filed
- 827 Patents Issued To-Date
- 53.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16L Class
- 75.74 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Mar 13, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 13, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 13, 2034 |
