Carbonated beverage aseptic filling system, beverage filling system, and CIP processing method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 15, 2022
Grant Date -
Aug 26, 2021
app pub date -
Jun 21, 2019
filing date -
Jun 21, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

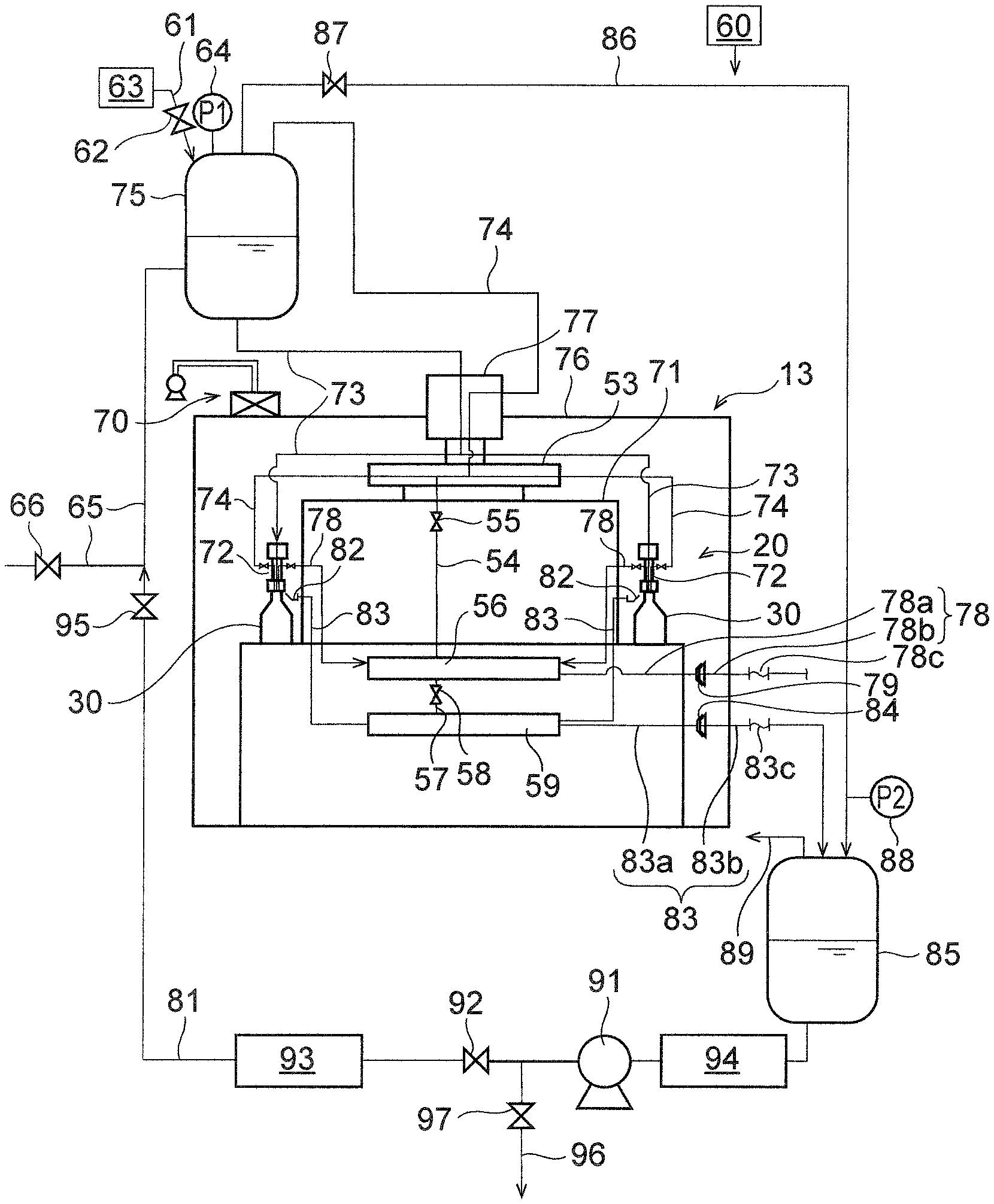

A carbonated beverage aseptic filling system (10) comprises: a filling nozzle (72) for filling a carbonated beverage; a carbonated beverage filling tank (75) connected to the filling nozzle (72) via a carbonated beverage supplying pipe (73) and a counter pressure pipe (74); a snift pipe (78) connected to the filling nozzle; and an aseptic chamber (13) enclosing the filling nozzle (72), at least part of the carbonated beverage supplying pipe (73), and at least part of the counter pressure pipe (74). The carbonated beverage supplying pipe (73) and the counter pressure pipe (74) are attached to the aseptic chamber (13) by a rotary joint (77). A discharging valve (79) is provided in the snift pipe (78) inside the aseptic chamber (13), and gas from the snift pipe (78) is discharged into the aseptic chamber.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP6627918 | Jun 21, 2018 |
| JP | B2 | JP6849009 | Apr 26, 2019 |
| CN | B | CN112313167 | Jun 21, 2019 |
| WO | A1 | WO2019245019 | Jun 21, 2019 |
| EP | A1 | EP3812343 | Jun 21, 2019 |
| CN | B | CN116040561 | Jun 21, 2019 |
| US | B2 | US11834315 | Aug 10, 2022 |
International Classification(s)
- 2019 Application Filing Year
- B67C Class
- 107 Applications Filed
- 75 Patents Issued To-Date
- 70.10 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B67C Class
- 80 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 15, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 15, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 15, 2034 |
