MODULAR MACHINE TOOL WORK HOLDING COMPONENTS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 12, 2021
app pub date -
Feb 10, 2020
filing date -
Feb 10, 2020
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

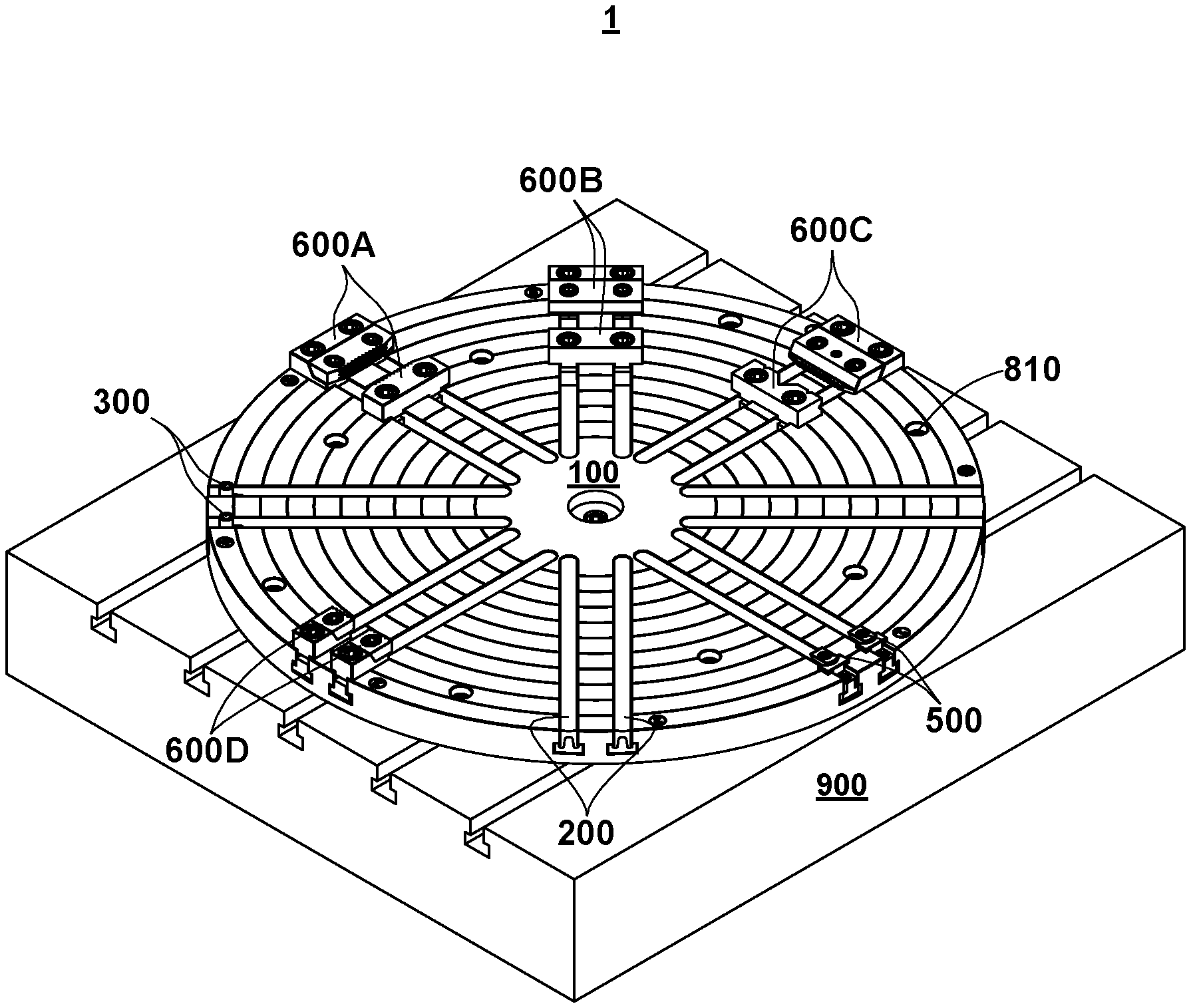

A workholding clamp for securing a workpiece to a work surface comprised of a fixed body secured to the work surface and having a first inclined surface; a sliding jaw having a second inclined surface residing against and parallel to the first inclined surface, a clamp face and at least one obround opening; and at least one clamping fastener residing within the at least one obround opening and being tightened to cause the second inclined surface to slide against the first inclined surface. A workholding pivot clamp for securing a workpiece to a work surface, and a work stop for reliably locating a workpiece relative to a work surface are also described.
First Claim
Other Claims data not available
