Process and equipment assembly for beneficiation of coal discards
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 2, 2022
Grant Date -
Aug 12, 2021
app pub date -
Jun 5, 2019
filing date -
Jun 8, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

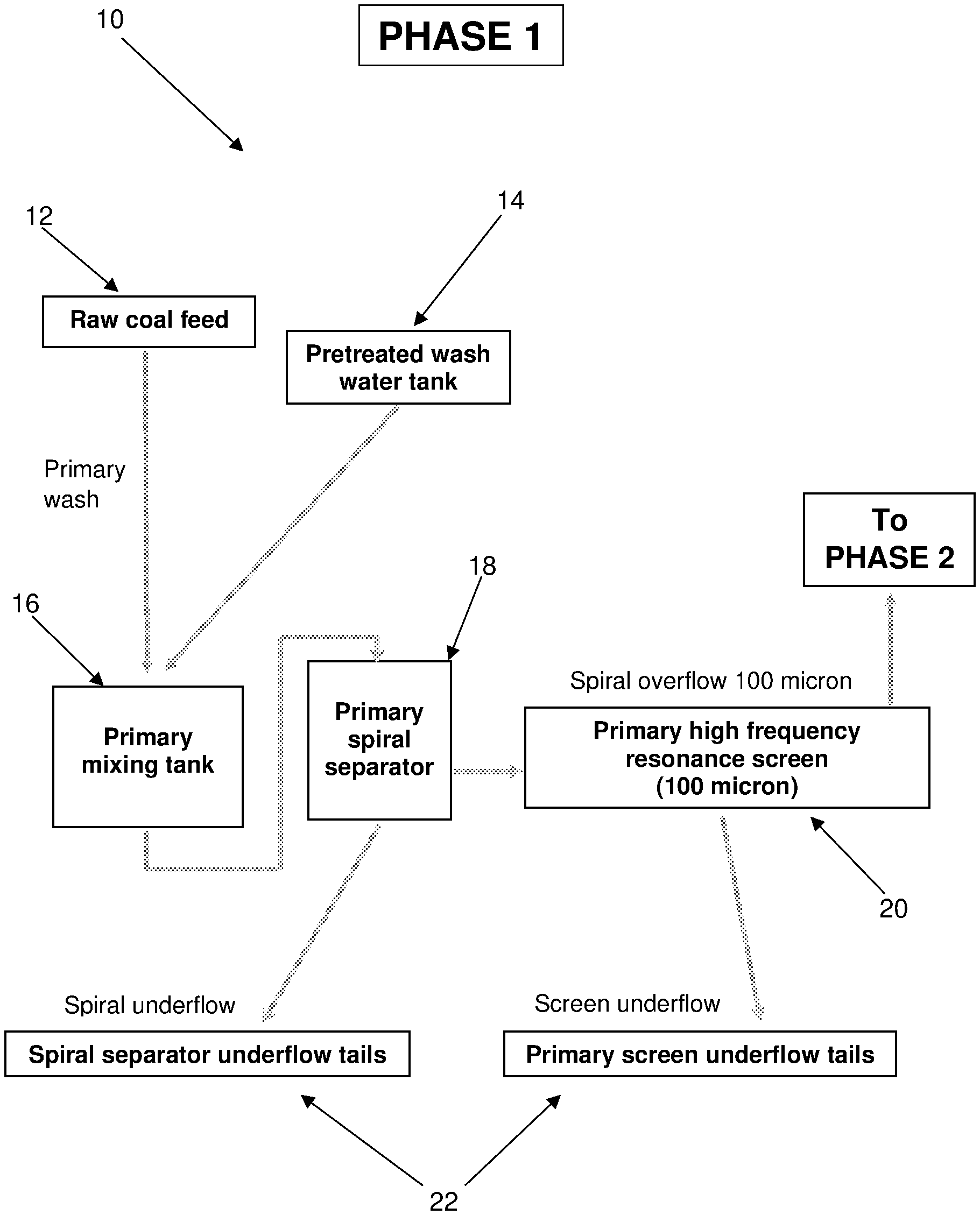

According to the invention, there is provided a process for the beneficiation of coal discards by increasing calorific value and carbon content while removing inert mineral matter and sulphur compounds. The process involves the pretreatment of wash water with a non-ionic kinetically energized surface-active agent and the admixture with a fixed mass of raw coal discard to enhance hydrophobicity and carboniferous particle agglomeration. Processing of the resulting suspension though a dedicated series of spiral separators and high frequency, resonance sieves reliably reduces excessive levels of mineral ash and sulphur compounds.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- B03B Class
- 69 Applications Filed
- 44 Patents Issued To-Date
- 63.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B03B Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 2, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 2, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 2, 2034 |
