Signal processing device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 2, 2024
Grant Date -
Aug 5, 2021
app pub date -
Mar 15, 2019
filing date -
May 10, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

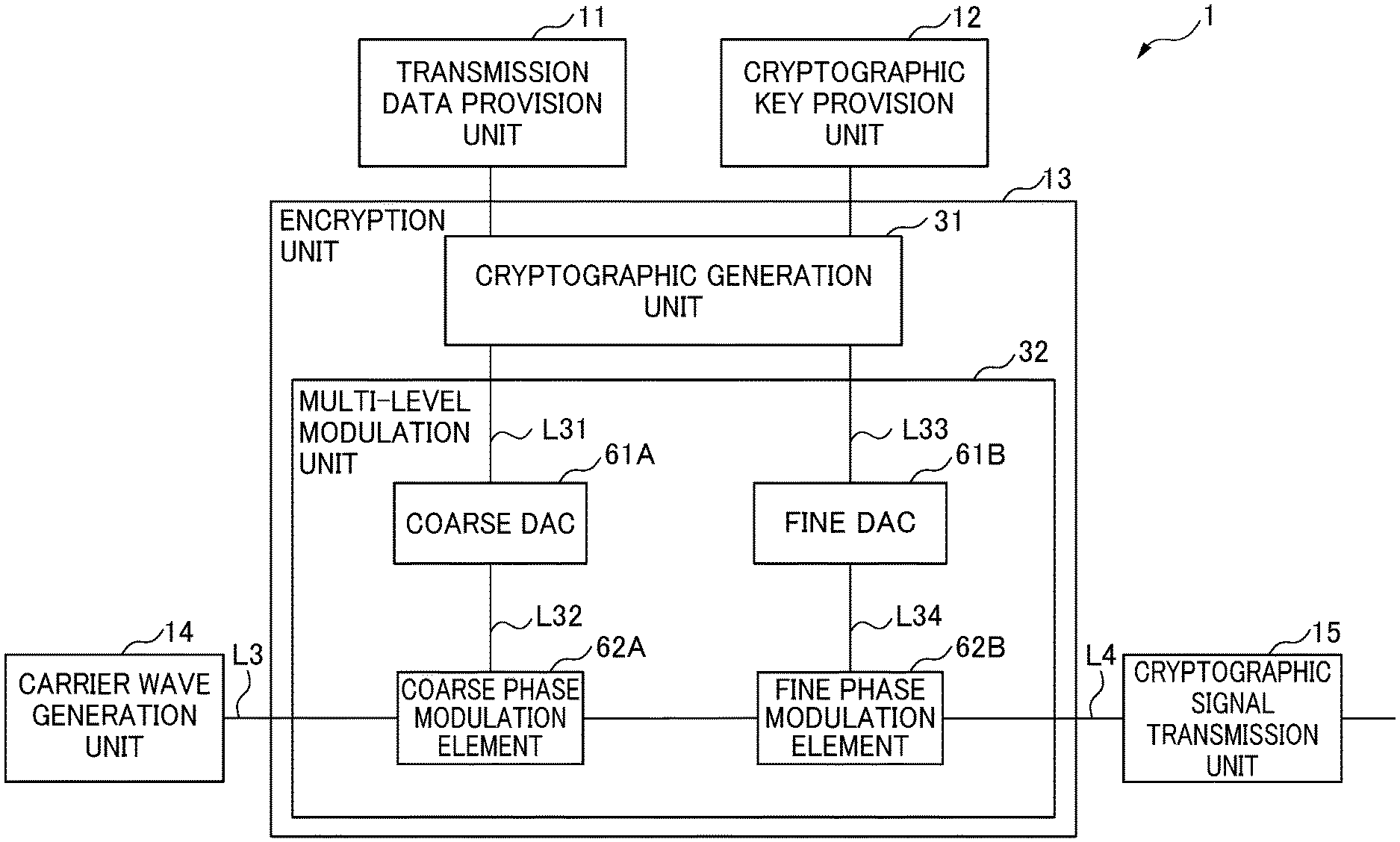

The purpose of the present invention is to improve signal modulation resolution. A coarse phase modulation element 62A modulates a signal into any of M1 (M1 is an arbitrary integer) patterns in a first range. Fine phase modulation elements 62B-1 through 62B-(k−1) respectively modulate the signal into any of M2 through Mk (M2 through Mk are arbitrary integers that are independent of each other and M1) patterns in a second range through k-th range (k is an integer of 2 or greater). A coarse DAC 61A and DACs 61B-1 through 61B-(k−1) perform control such that the second range through k-th range become narrower than the first range.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP6850516 | Mar 15, 2019 |
| WO | A1 | WO2019216025 | Mar 15, 2019 |
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04B Class
- 0 % this patent is cited more than
- 1 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jul 2, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 2, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 2, 2035 |
