Thin film maser emitter and thin panel phased array of emitters
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2024
Grant Date -
Jul 15, 2021
app pub date -
Jan 13, 2021
filing date -
Jan 15, 2020
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

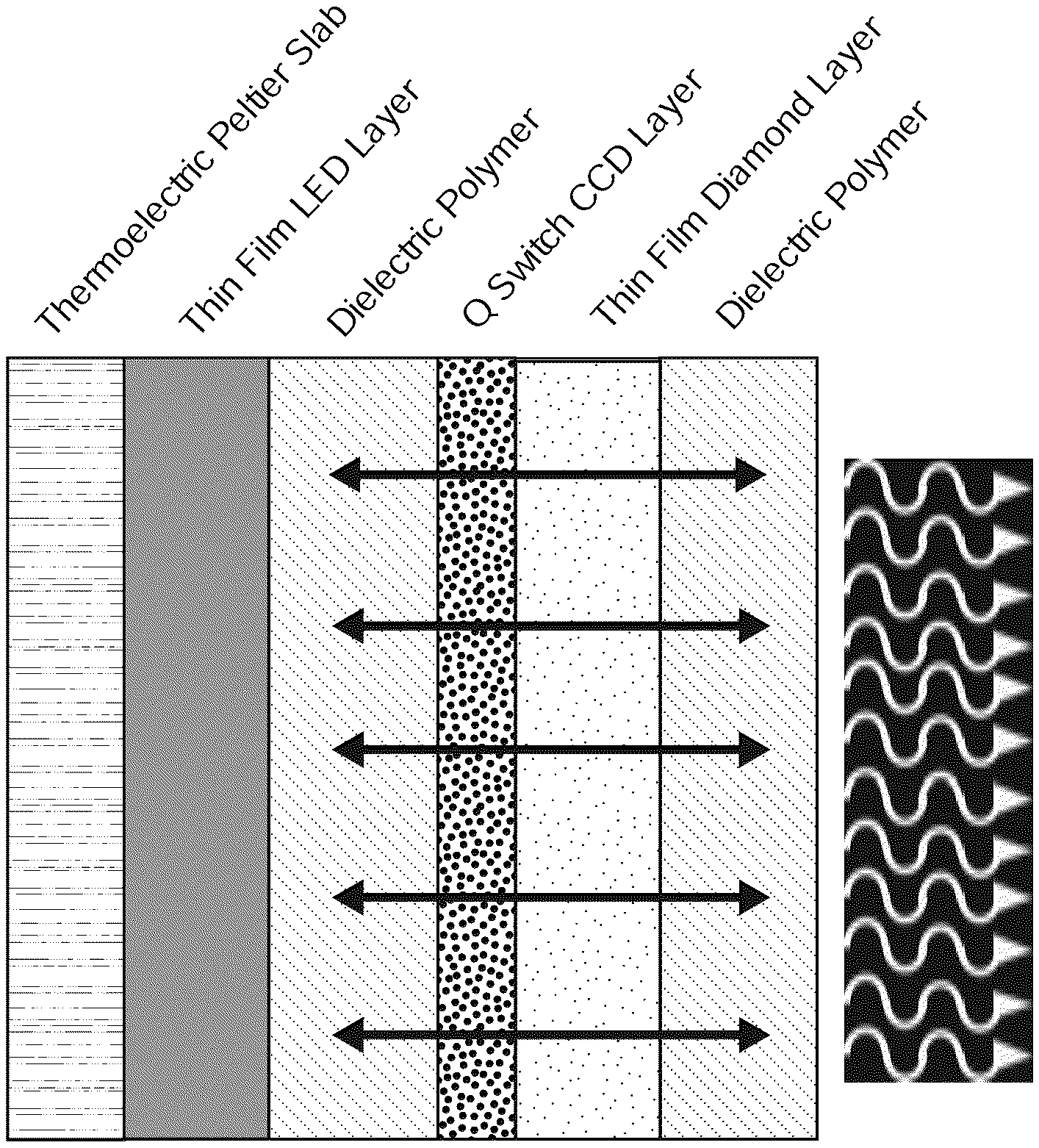

A MASER (Microwave Amplified Stimulated Emission of Radiation) emitter is fabricated of thin film components, including a thin film of nitrogen-implanted, epitaxial crystal diamond. The MASER elements can also include a controllable Q-switching layer and be arranged in a thin panel, phased array to generate a single beam of coherent, mode-locked, continuous wave MASER radiation.
