Deglitching circuit and method in a class-D amplifier
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 5, 2023
Grant Date -
Jul 1, 2021
app pub date -
Mar 12, 2021
filing date -
Mar 15, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

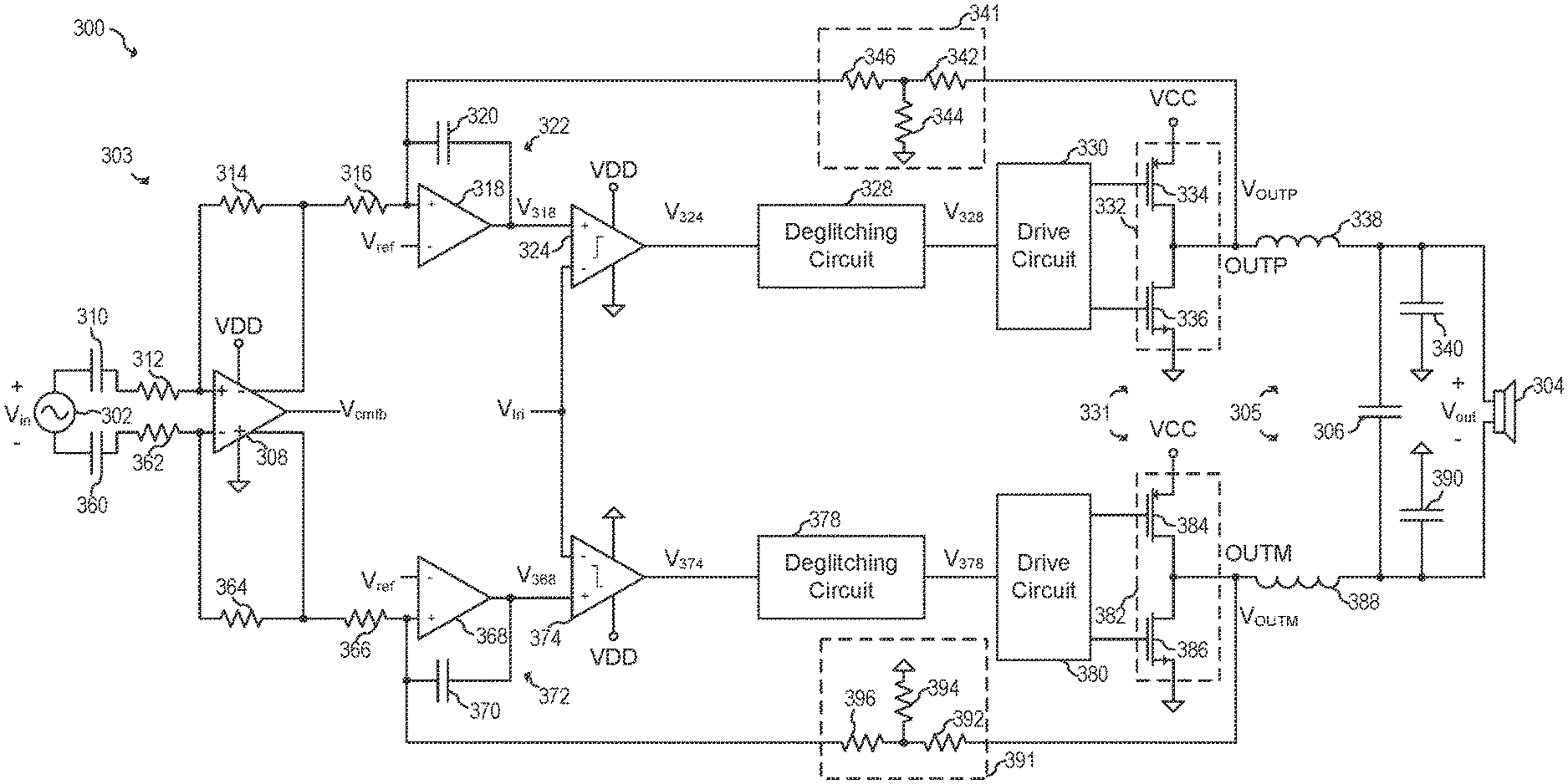

In an embodiment, a class-D amplifier includes an input terminal configured to receive an input signal; a comparator having an input coupled to the input terminal; a deglitching circuit having an input coupled to an output of the comparator; and a driving circuit having an input coupled to an output of the deglitching circuit. The deglitching circuit includes a logic circuit coupled between the input of the deglitching circuit and the output of the deglitching circuit. The logic circuit is configured to receive a clock signal having the same frequency as the switching frequency of the class-D amplifier.
