ADDITIVE-BASED ELECTROFORMING MANUFACTURING METHODS AND METALLIC ARTICLES PRODUCED THEREBY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 11, 2021
app pub date -
Nov 18, 2020
filing date -
Jul 18, 2017
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

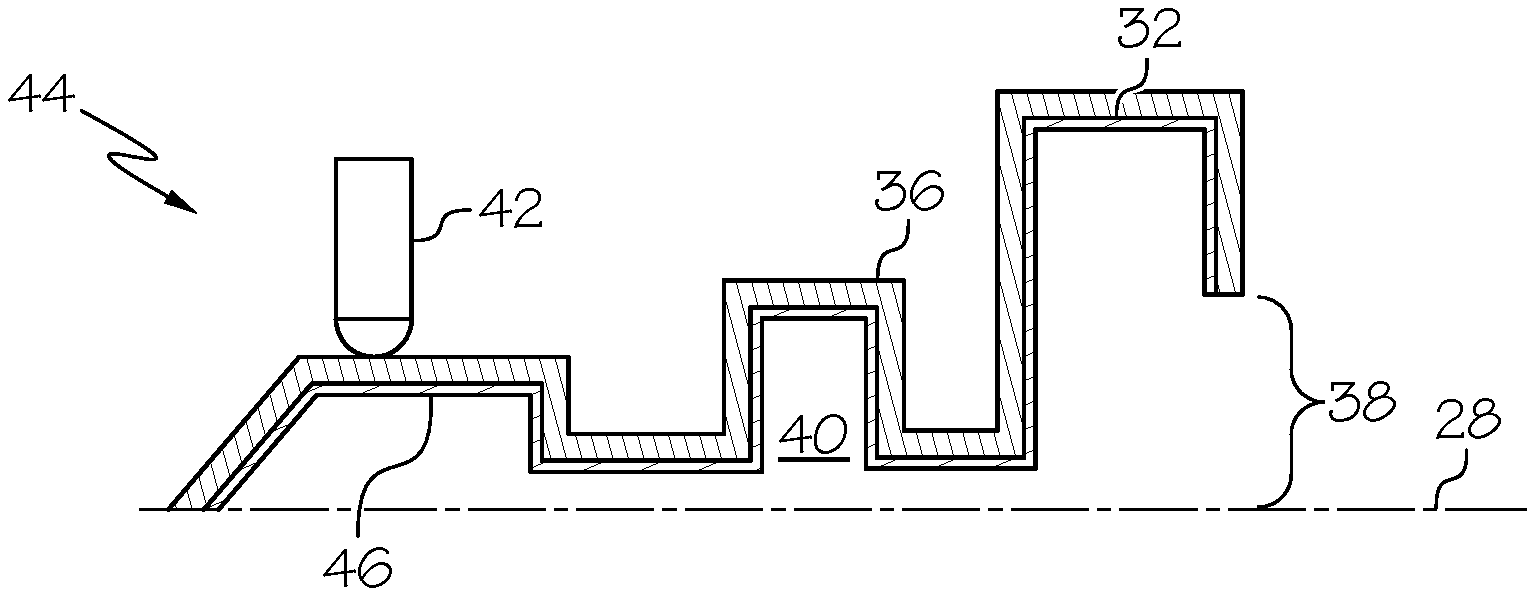

Additive-based electroforming manufacturing methods for producing turbomachine components and other metallic articles are provided, as are metallic articles manufactured utilizing such manufacturing methods. In various embodiments, the method includes providing a sacrificial tooling structure having a component-defining surface region. A metallic body layer or shell is deposited over the component-defining surface region utilizing an electroforming process. The tooling structure is removed, while the metallic body layer is left substantially intact. After tooling structure removal, the metallic body layer is further processed to complete fabrication of the metallic component.
First Claim
Other Claims data not available
