PRESS MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 4, 2021
app pub date -
Jul 16, 2020
filing date -
Sep 2, 2019
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

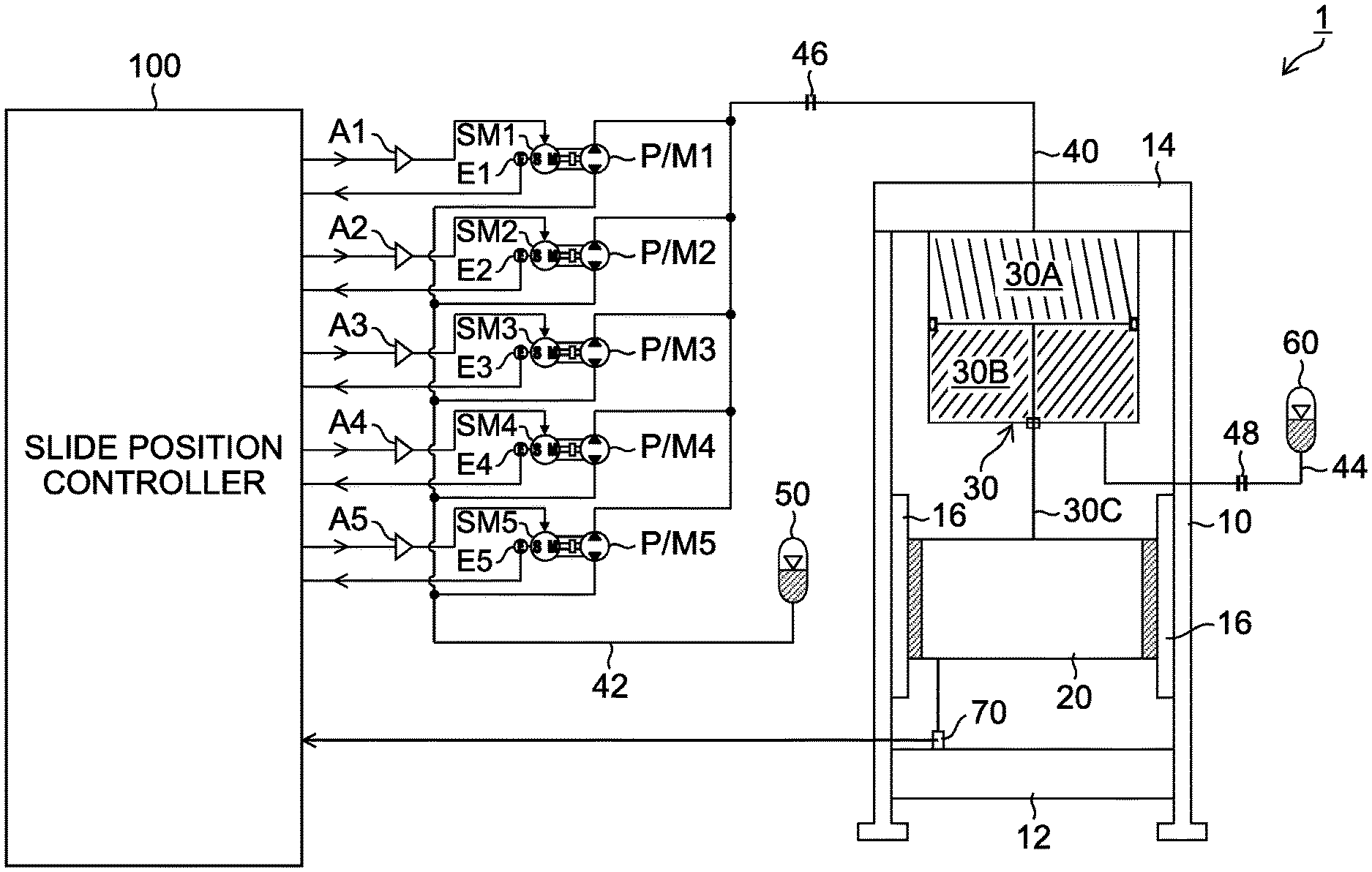

The press machine includes: a hydraulic cylinder configured to drive a slide; a plurality of hydraulic pumps/motors; a first port of each of which is connected to a first pressurizing chamber of the hydraulic cylinder; a plurality of servomotors axially connected to rotating shafts of the respective hydraulic pumps/motors respectively; a low-pressure accumulator to which second ports of the hydraulic pumps/motors are each connected; a high-pressure accumulator connected to a second pressurizing chamber of the hydraulic cylinder; and a slide position controller configured to control the servomotors so that a position of the slide matches a position corresponding to a slide position command signal based on the slide position command signal from a slide position commander and a slide position signal from a slide position detector.
First Claim
Other Claims data not available
