APPARATUS AND METHOD FOR PRODUCING A PAVER BLOCK HAVING VEINED TREAD SURFACE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 25, 2021
app pub date -
Mar 7, 2018
filing date -
Mar 10, 2017
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

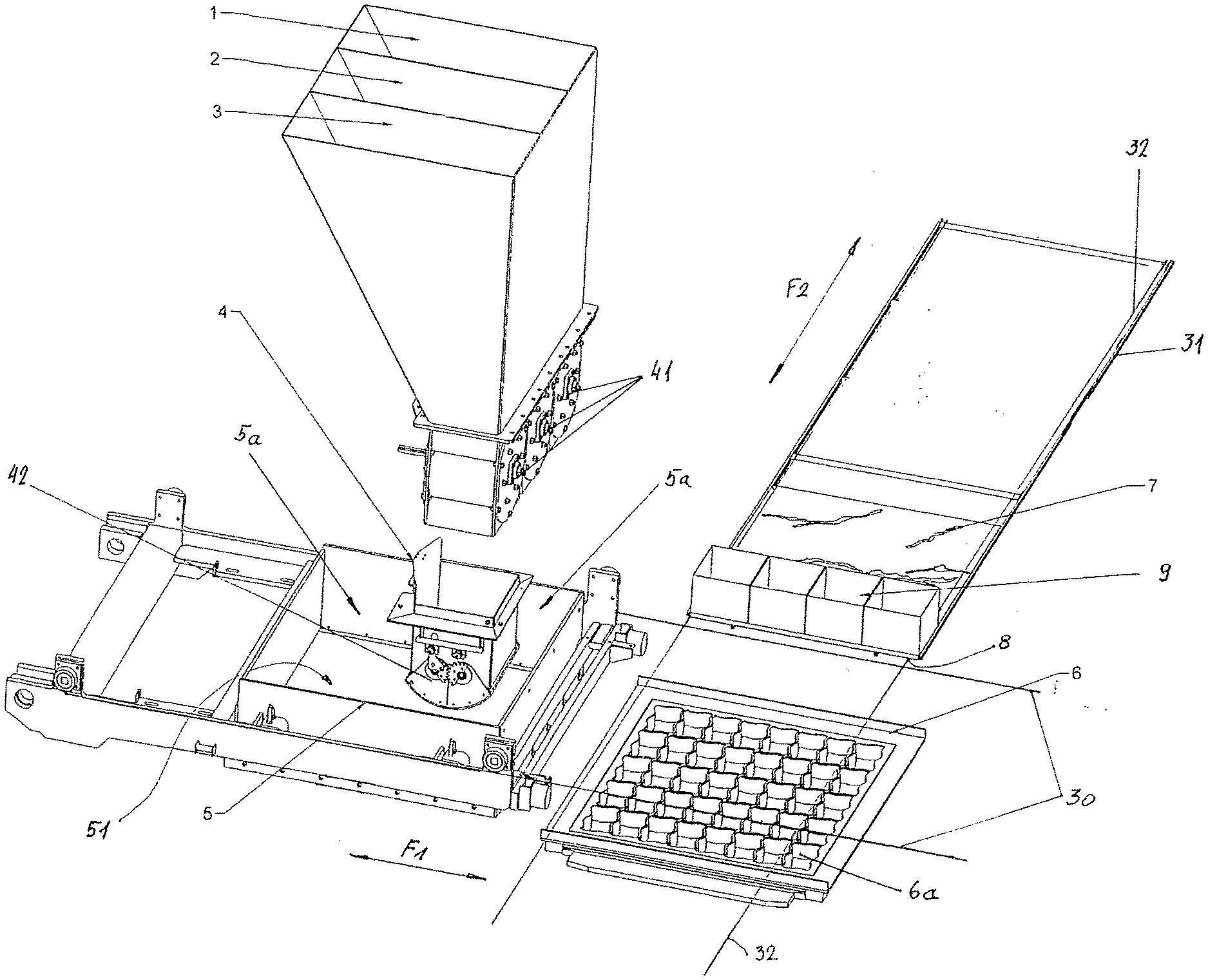

This invention relates to an apparatus and method for producing paver blocks (K) having ornamented, especially veined tread surface. The apparatus comprising a starting table (51); a filling carriage (5) movable back and forth in a first direction (F1) above a molding template (6); and an open chamber (5a) for receiving a base material is provided in the interior space of the carriage (5); a metering trough (1, 2, 3) is connected to a dispensing device (41), and a batch box (4) is arranged movably over the starting table (51). The apparatus is provided with a second starting table (8) movable in a second direction (F2) above the molding template (6), and a second filling carriage (7) is arranged movably along a guide rail (32) over the molding template (6) in the second direction (F2), and a second batch box (9) is provided above the second filling carriage (7).
First Claim
Other Claims data not available
