BONDING STRUCTURE OF DISSIMILAR METAL MEMBERS AND PRECURSOR THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 18, 2021
app pub date -
Jul 21, 2020
filing date -
Aug 13, 2019
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

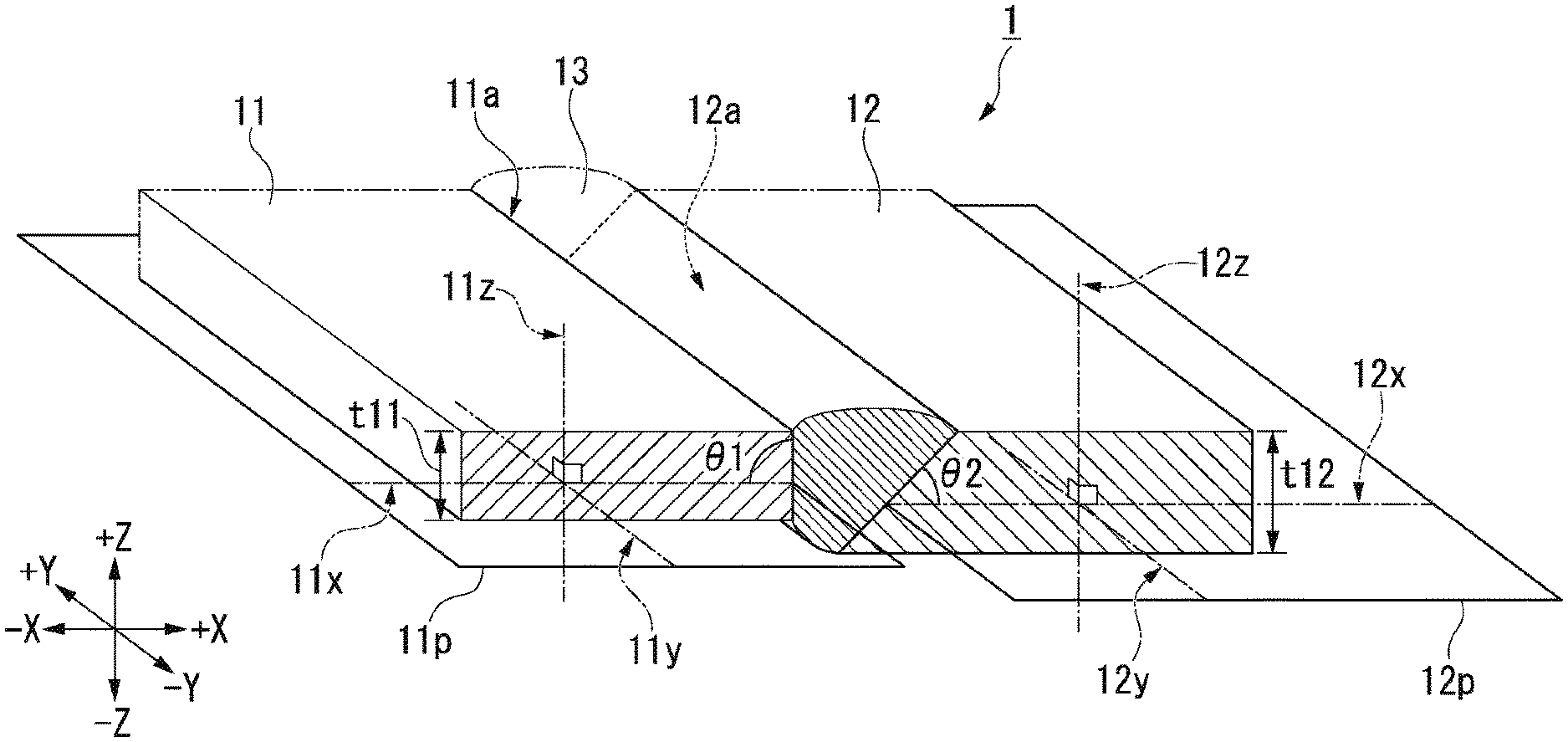

A bonding structure of dissimilar metal members, including a first metal member, a second metal member, and a brazing filler metal, wherein the brazing filler metal bonds a bonding end surface of the first metal member and a bonding end surface of the second metal member, and any one or both of the following conditions (1) and (2) are satisfied: (1) at least a part of the bonding end surface of the first metal member in a thickness direction of the first metal member is an inclined surface inclined with respect to a plane perpendicular to the thickness direction of the first metal member, and (2) at least a part of the bonding end surface of the second metal member in a thickness direction of the second metal member is an inclined surface inclined with respect to a plane perpendicular to the thickness direction of the second metal member.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23K Class
- 0 % this patent is cited more than
- 4 Age
