WIND FLOW OPERATED VENTILATION AND ENERGY HARNESSING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 14, 2021
app pub date -
Jan 14, 2019
filing date -
Jan 23, 2018
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

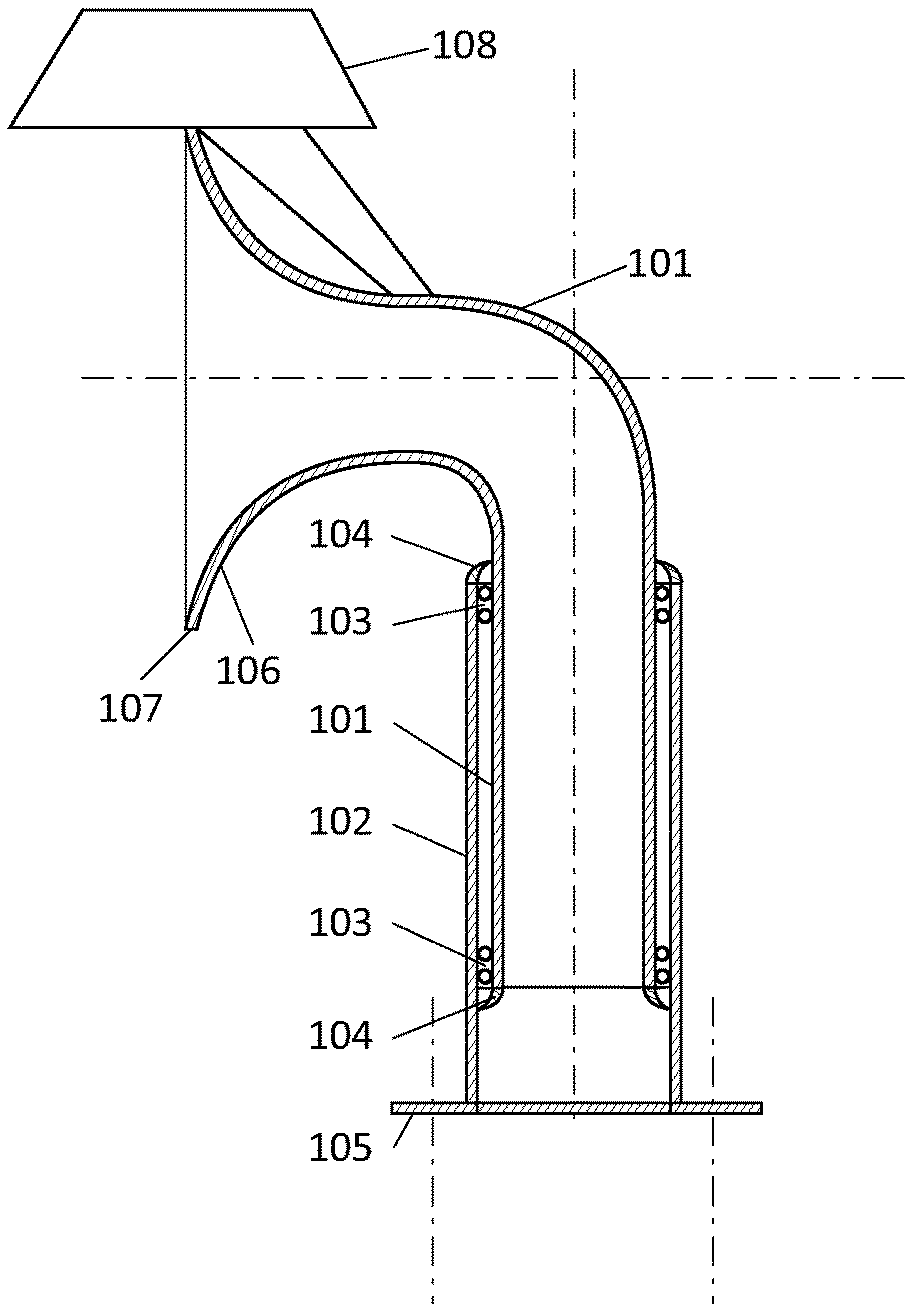

Disclosed is wind flow operated ventilation and energy harnessing device, comprising an L-shaped flow pipe (101/201) with one arm sweeping horizontally while the other rotatable on a stationary vertical pipe (102/202) connected with the space being ventilated. The open end of the horizontal portion is flared into collar (106) or bell-shaped mouth (206) forming evacuating or pressurizing flow pipe respectively. The direction changers (108/208) are used to maintain the back of collar (107) of flared portion (106) or open end (207) of bell-shaped mouth (206) facing upstream wind. The wind on striking the back of collar (107) or the open end (207) of bell-shaped mouth (206) creates evacuation or pressurization effect respectively for ventilation. A wind turbine fitted inside stationary vertical pipe harnesses energy.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| AU | A1 | AU2019212597 | Jan 14, 2019 |
| WO | A1 | WO2019145971 | Jan 14, 2019 |
International Classification(s)
- 2019 Application Filing Year
- F03D Class
- 803 Applications Filed
- 568 Patents Issued To-Date
- 70.74 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F03D Class
- 32.91 % this patent is cited more than
- 4 Age
