Maisonette type apartment house design structure for reducing noise between floors and allowing easy remodeling
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 12, 2021
Grant Date -
Jan 14, 2021
app pub date -
Apr 2, 2019
filing date -
Apr 3, 2018
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

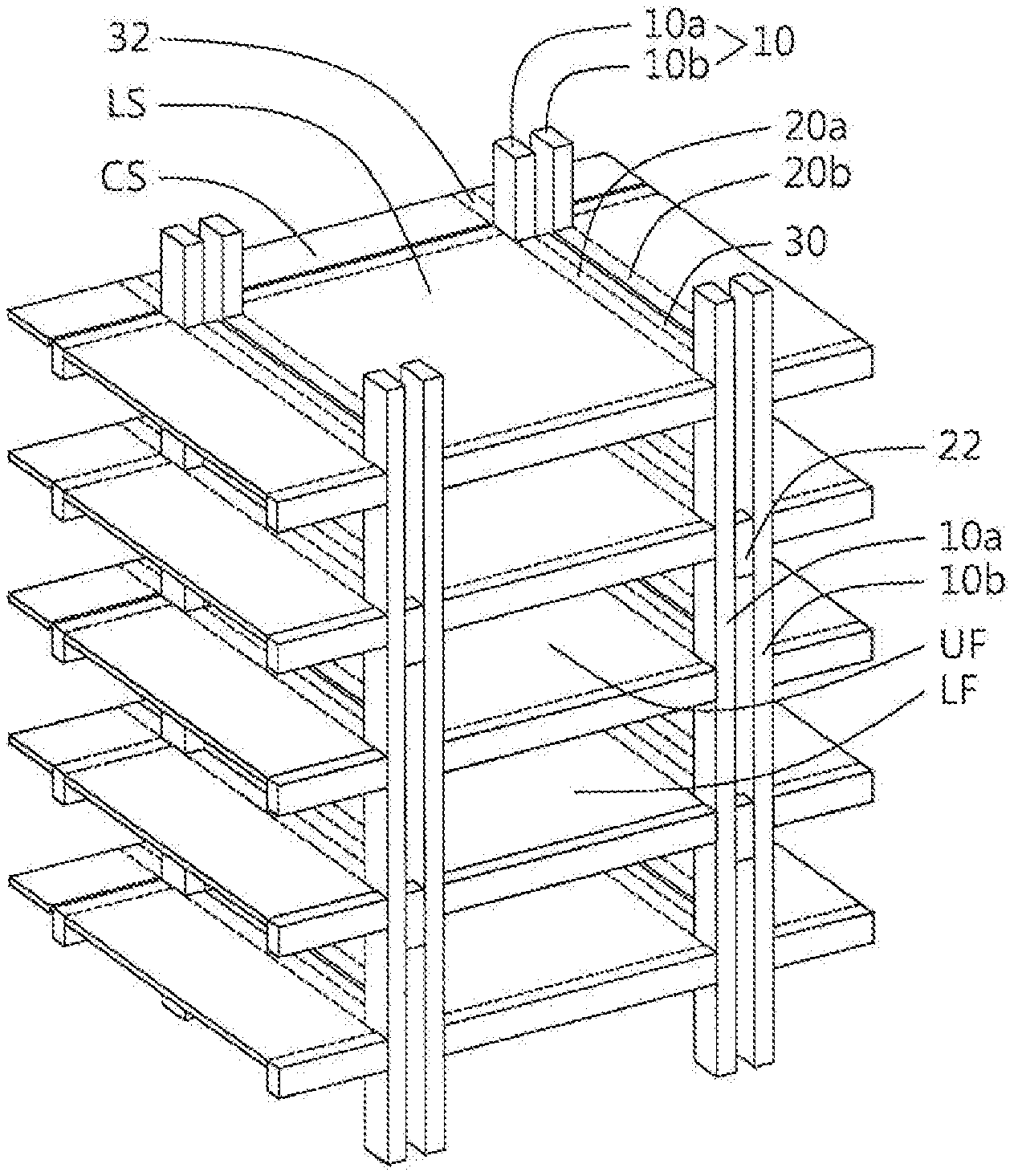

The present invention relates to a design structure of an apartment house in which a plurality of apartment units, each of which is a maisonette in which two floors including an upper floor and a lower floor are combined into a single apartment unit, are repeatedly arranged in vertical and horizontal directions, wherein, in the design structure, each apartment unit has a living room disposed on the upper floor and a plurality of bedrooms disposed on the lower floor, double pillars spaced apart from each other are installed on side boundaries of adjacent apartment units, the double pillars include a pair of first pillars disposed inside an apartment unit and a pair of second pillars disposed outside the apartment unit and disposed inside another apartment unit adjacent thereto, a first beam member, which serves as a structure carrying a load, is connected to and installed at the first pillar, a second beam member, which serves as a structure carrying a load, is connected to and installed at the second pillar, and a double pillar connecting beam configured to connect the first pillar and the second pillar is additionally provided on a side surface of a slab of the lower floor.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2019 Application Filing Year
- E04B Class
- 1238 Applications Filed
- 821 Patents Issued To-Date
- 66.32 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E04B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 12, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 12, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 12, 2033 |
