Multipurpose cleaning saddle rack
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 16, 2021
Grant Date -
Dec 10, 2020
app pub date -
Jun 10, 2019
filing date -
Jun 10, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

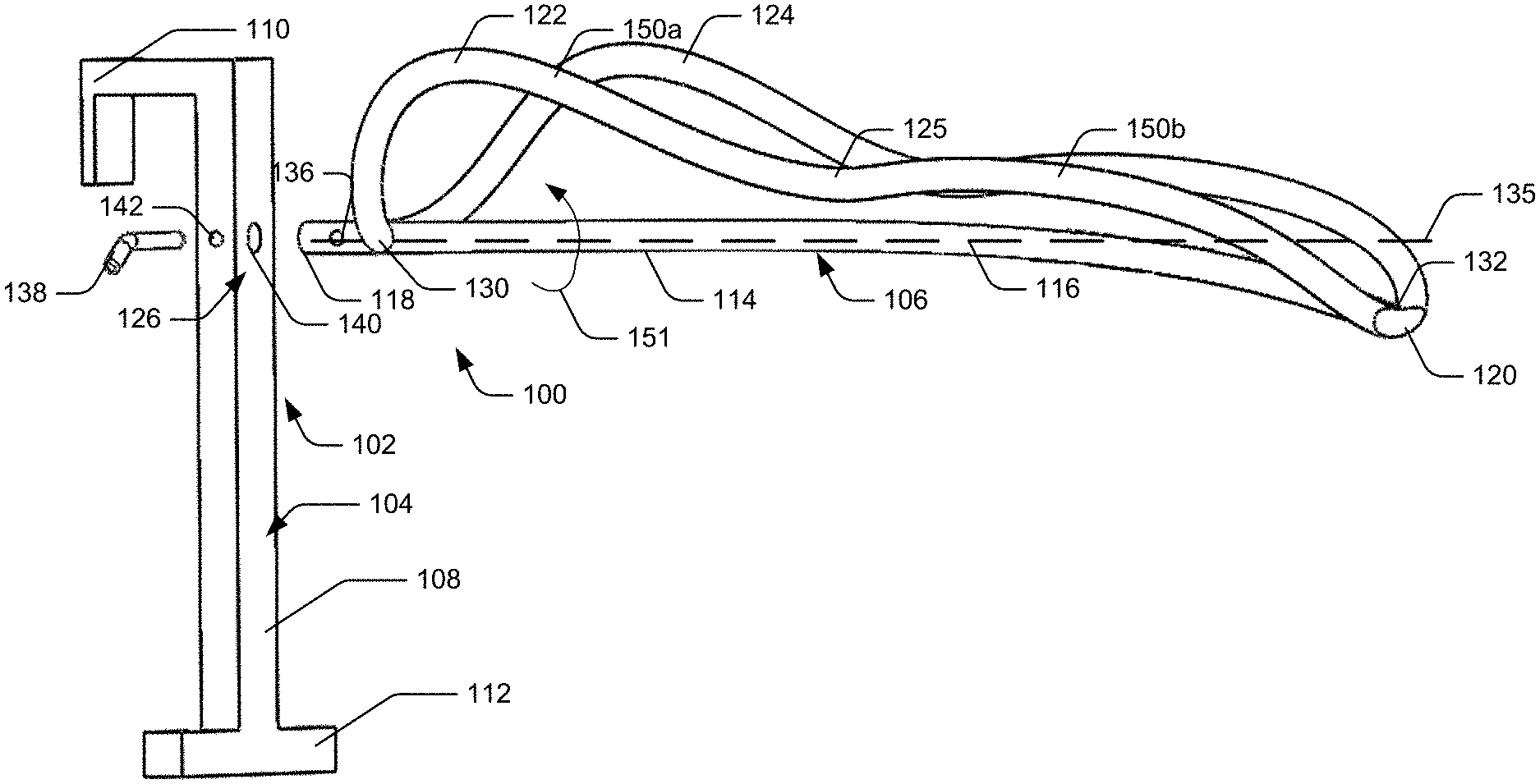

A method and saddle rack to hold a saddle is disclosed. In one embodiment the saddle rack employs a pin that can be put through apertures on one end of a connecting rod and base mounted on a vertical retaining wall, or in an alternative embodiment employs a connecting rod that integrally attaches at one end to a front side of a block with hooks on a top and bottom side that attach to a rigid loop on the wall. Supporting wings attach to the other end of the connecting rod and extend upward to support the saddle upside down and to allow for daily storage and cleaning of the underside of the saddle. In one embodiment the pin would be removed, the connecting rod rotated 180 degrees, and the pin would be reinserted to hold the saddle bottom side down for topside cleaning. In the other embodiment one of the hooks would attach the rack to the rigid loop in either of the two cleaning positions or attach to the ridge loop to form a collapsed position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2019 Application Filing Year
- B68C Class
- 14 Applications Filed
- 5 Patents Issued To-Date
- 35.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B68C Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | May 16, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 16, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 16, 2033 |
