Prefabricated, prestressed bridge module
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 19, 2021
Grant Date -
Nov 12, 2020
app pub date -
Jul 21, 2020
filing date -
Nov 16, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

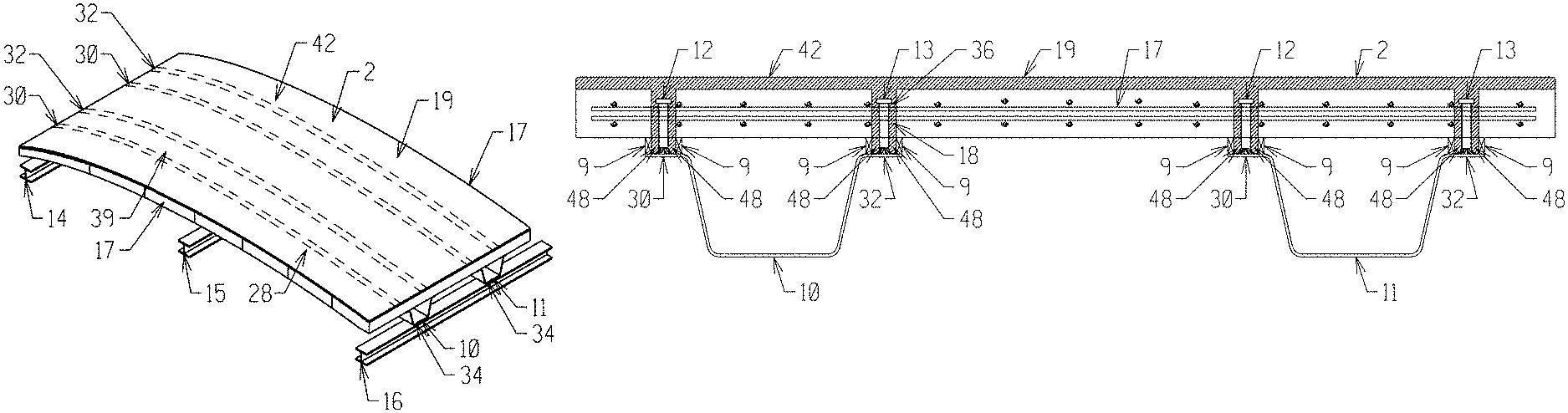

A method for making a prefabricated, prestressed module includes arranging one or more steel beams atop a supporting formwork element in a direction transverse to the supporting formwork element and arranging one or more precast deck elements across the one or more steel beams to create a substantially continuous surface. The one or more precast deck elements have pockets for receiving connectors that protrude from the one or more steel beams. The method also includes arranging the supporting formwork element to allow the one or more steel beams to bend into a cambered shape to impart compressive stresses to a bottom flange of the one or more steel beams and tension stresses to a top flange of the one or more steel beams and inserting grout into the pockets to hold the cambered shape and to bond the one or more precast deck elements to the connectors and the top flange.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2020 Application Filing Year
- E01D Class
- 55 Applications Filed
- 41 Patents Issued To-Date
- 74.55 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E01D Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 19, 2025 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 19, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 19, 2033 |
