STRUCTURAL MEMBER ASSEMBLIES, BEAMS, AND SUPPORT STRUCTURES COMPRISING SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 5, 2020
app pub date -
Feb 26, 2020
filing date -
May 1, 2019
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

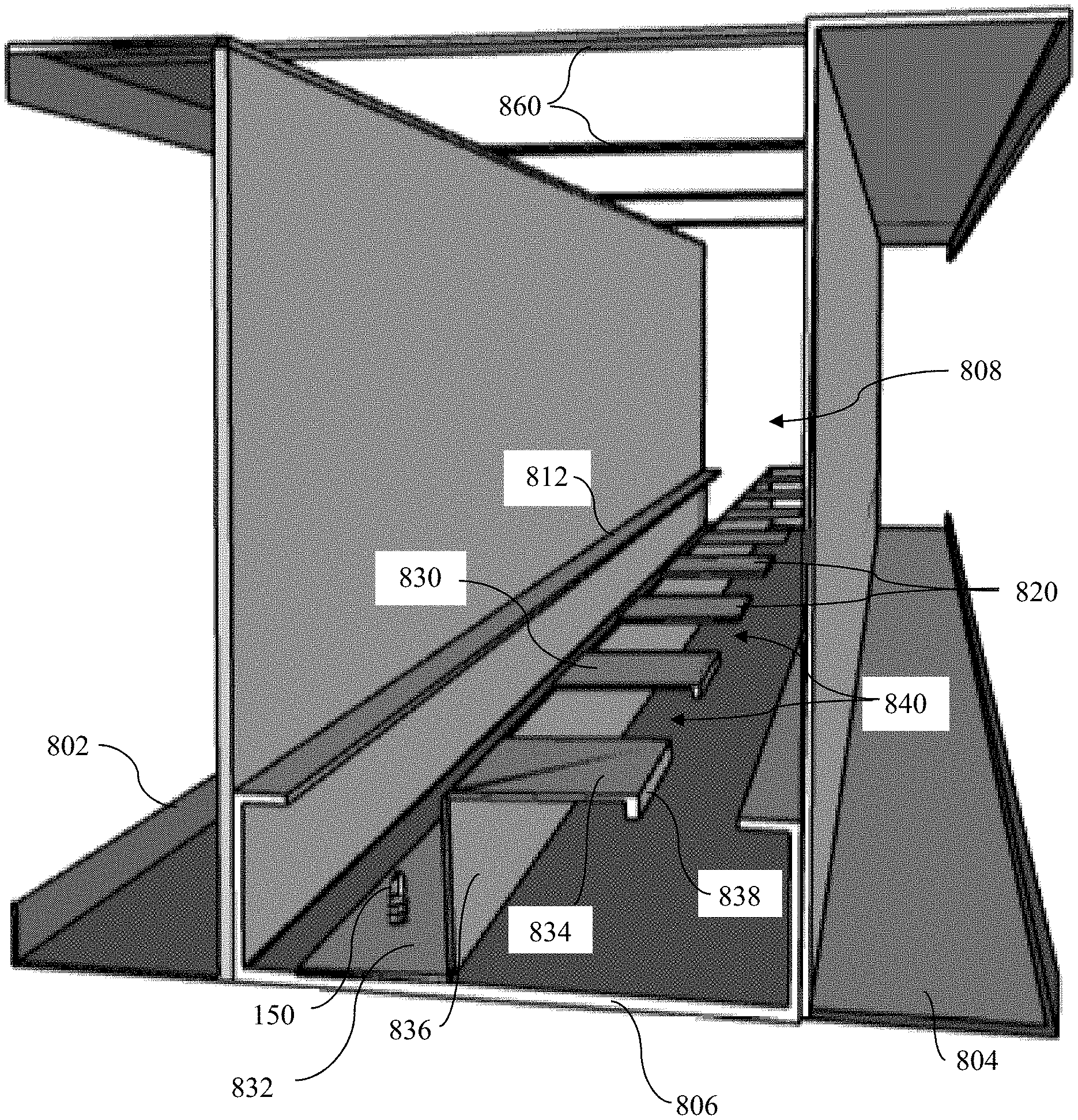

A support column extends in a longitudinal dimension and includes a plurality of outer hollow longitudinal structures. Each longitudinal structure defines an interior passage extending along a length of the longitudinal structure. The support column includes a plurality of inner members. The plurality of outer hollow longitudinal structures are aligned end-to-end along a single axis. The interior passages of the plurality of outer hollow longitudinal structures cooperate to define an interior passage of the support column. The inner members are aligned end-to-end along the single axis within the interior passage of the support column so that opposed longitudinal ends of each of the inner members extend to respective longitudinal ends of each adjacent inner member. At least one end of at least one inner member is longitudinally offset from every longitudinal end of the plurality of outer hollow longitudinal structures.
First Claim
Other Claims data not available
