Monitoring an axle of a railway vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 11, 2023
Grant Date -
Sep 17, 2020
app pub date -
Oct 26, 2018
filing date -
Oct 27, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

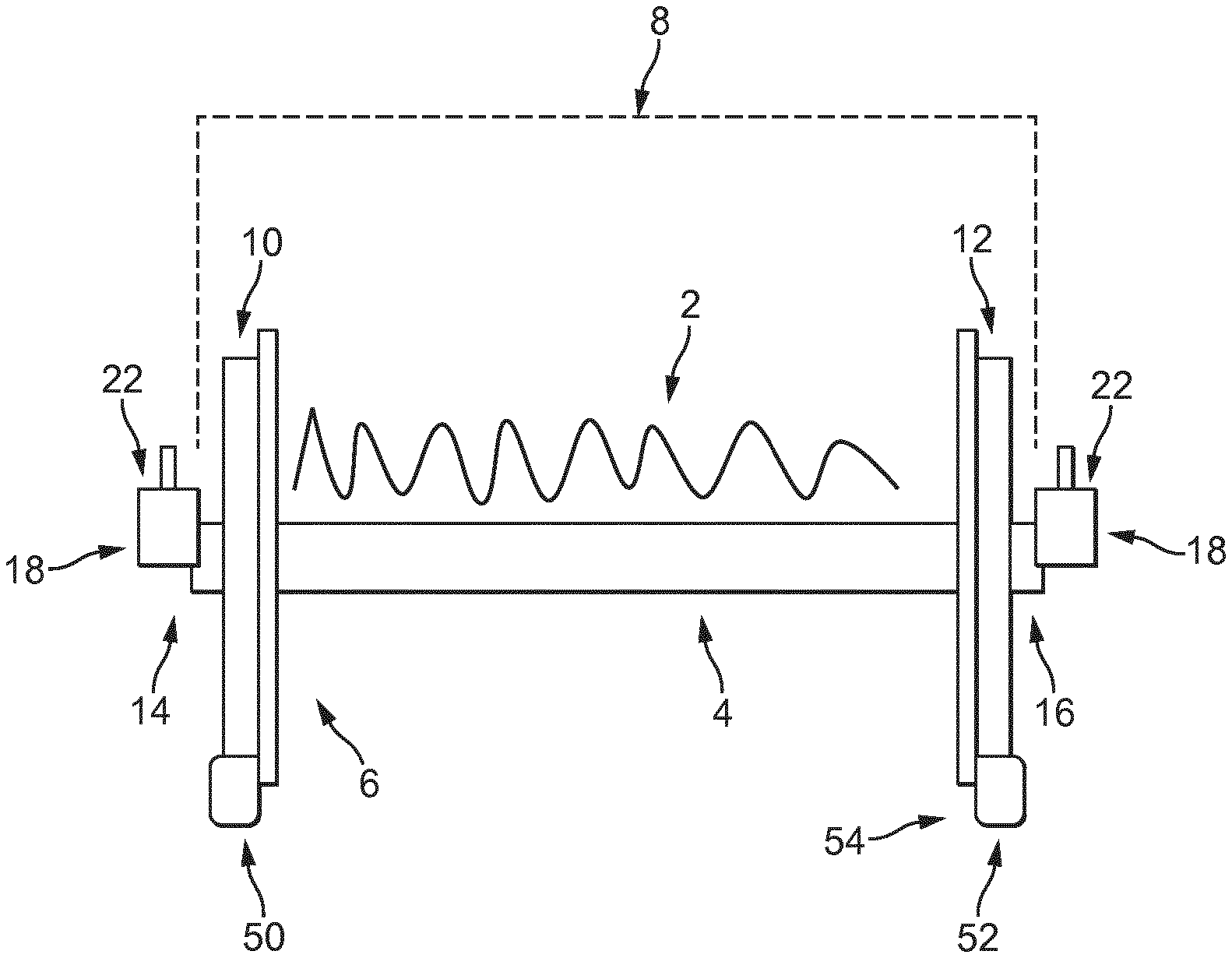

Apparatus for monitoring an axle of a wheelset assembly of a railway vehicle, the apparatus comprising a wireless sensor node fitted to a wheelset assembly, the wheelset assembly comprising an axle mounted between opposed wheels, each wheel being fitted to a respective opposite end of the axle, the wireless sensor node comprising a vibration energy harvester for converting mechanical energy from vibration in the wheelset assembly into electrical energy, a sensor for measuring a parameter, and a wireless transmitter for wirelessly transmitting the measured parameter or data associated therewith, and the apparatus further comprising a processor for processing the measured parameter to produce processed data, wherein the sensor is an accelerometer mounted to an end of the axle and the sensor and processor are arranged respectively to measure and process an axle percussion vibration frequency in the form of resonant vibration along the axle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2018 Application Filing Year
- B61L Class
- 316 Applications Filed
- 226 Patents Issued To-Date
- 71.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B61L Class
- 0 % this patent is cited more than
- 2 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Jan 11, 2027 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 11, 2031 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 11, 2035 |
