Method for preparing ultrafine-grained superalloy bar
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2022
Grant Date -
Sep 3, 2020
app pub date -
Feb 28, 2020
filing date -
Feb 28, 2019
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

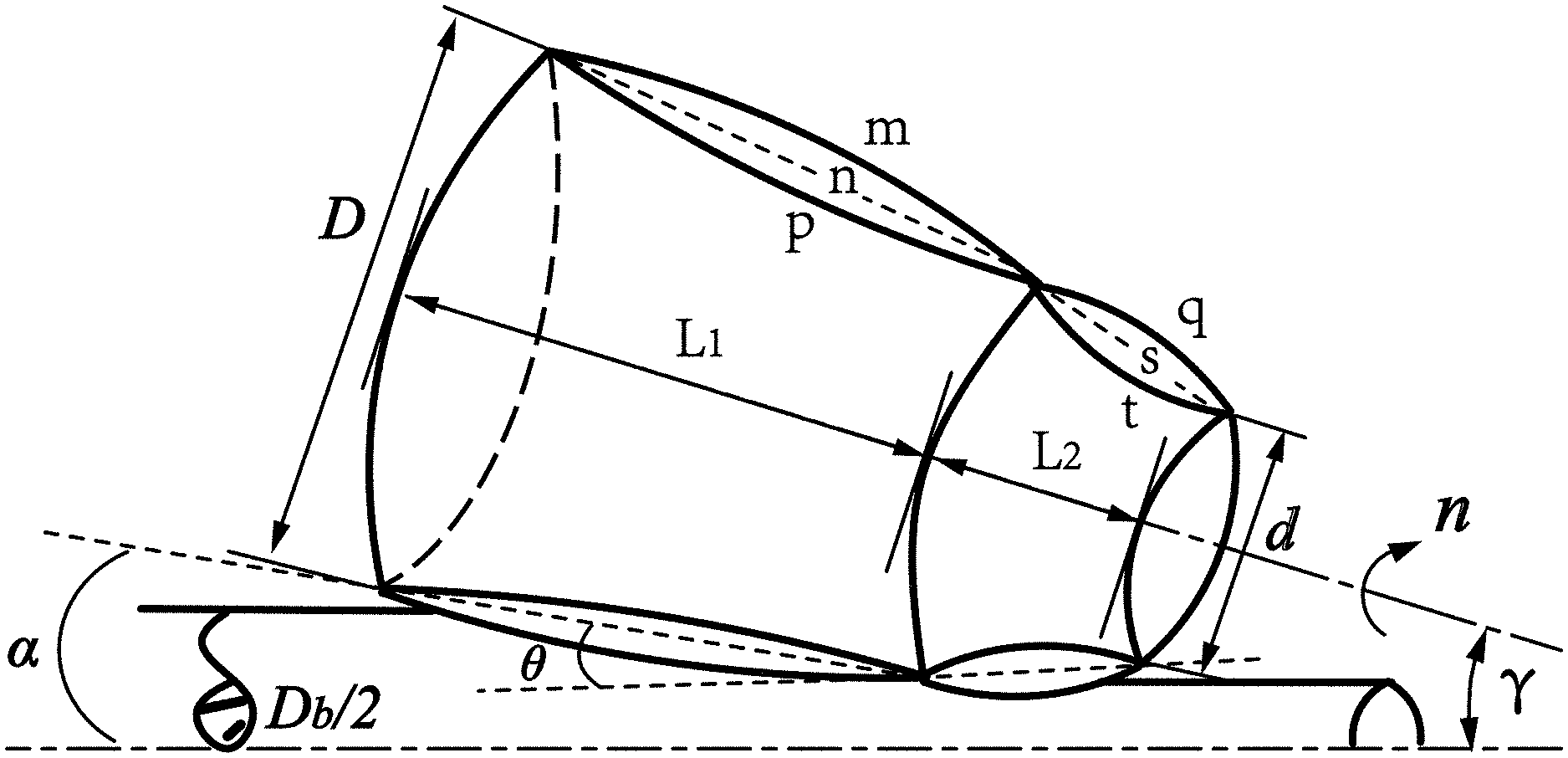

A method for preparing an ultrafine-grained superalloy bar, the method including: 1) designing a rolling machine including two rollers and two guide plates, where each of the two rollers includes a first roller and a second roller; the first roller includes a first curve and the second roller includes a second curve; the first curve and the second curve form a generatrix of the two rollers; 2) disposing the two guide plates with two curved surfaces thereof opposite to each other; disposing the two rollers to be between the two guide plates; where the two rollers and the two guide plates form a deformation zone of the rolling machine; and 3) driving the two rollers to rotate around their central axes, heating and introducing a superalloy blank from a gap between two first rollers to the deformation zone of the rolling machine; advancing the superalloy blank towards two second rollers.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 23, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 23, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 23, 2034 |
