Rear-view mirror assemblies for vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 18, 2022
Grant Date -
Jul 9, 2020
app pub date -
Nov 9, 2017
filing date -
Nov 9, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

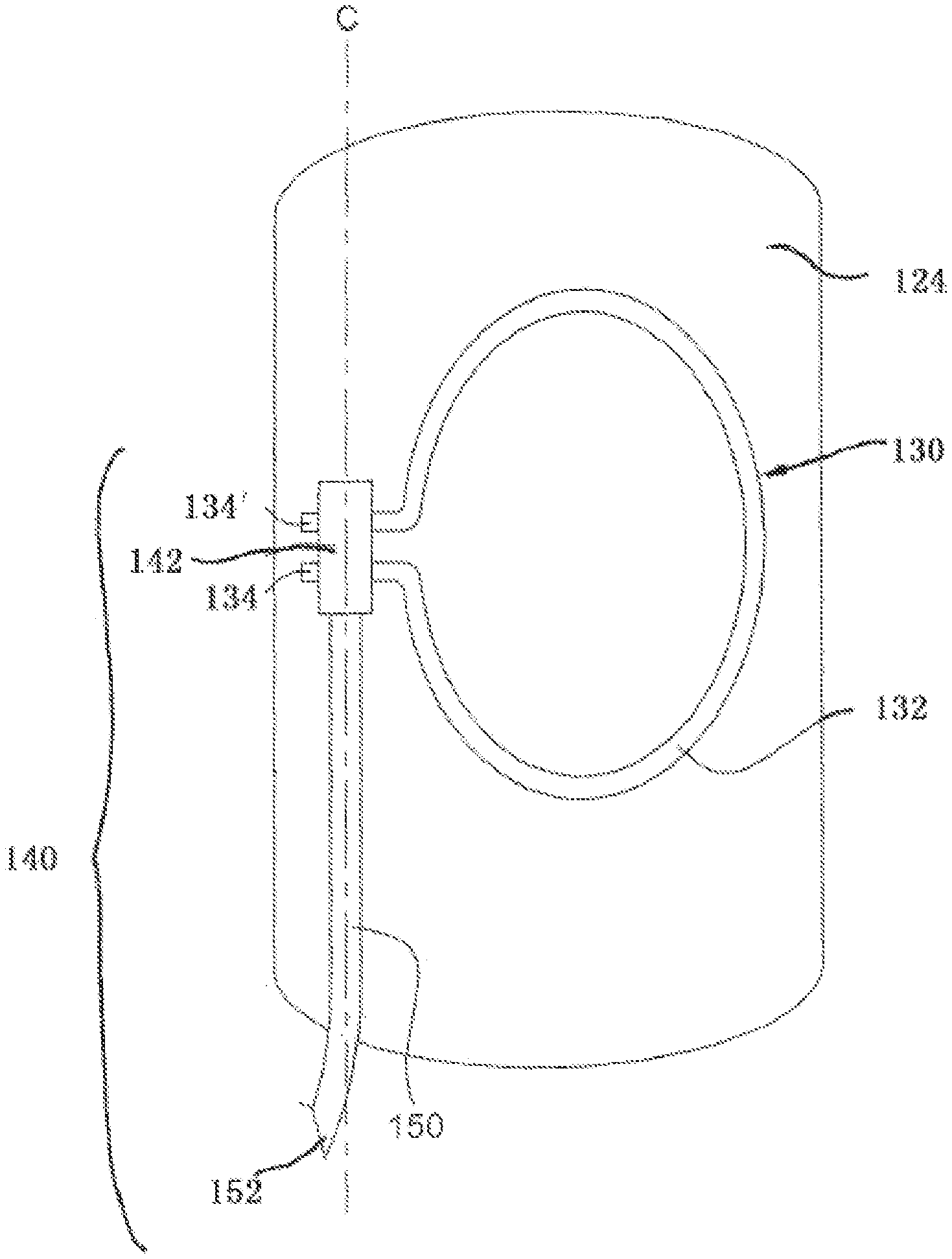

The rear-view mirror assembly comprises: a housing (110); a mirror plate (120, 220, 320, 420) having a front rear-view mirrored surface (122) and a back surface (124, 224, 324, 424); a support arrangement positioned in a recess (112) of the housing (110) and provided with attachment means having a first part and a complementary second part, the first part of attachment means configured to releasably engage the second part of attachment means provided on the mirror plate rear view surface (122) for attaching the mirror plate to the housing, a release mechanism (140, 240, 340, 440) having a gripping element attached to the mirror plate back surface (124) extending to or beyond one side edge of the mirror plate (120) configured such that, in use, a force applied to the gripping means disengages the first part of attachment means from the second part of attachment means releasing the mirror (120) plate from the support arrangement.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B60R Class
- 5134 Applications Filed
- 3775 Patents Issued To-Date
- 73.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60R Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Apr 18, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 18, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 18, 2034 |
